1986 Yamaha TT350 (TT350S) Side Cover Diagram

← All diagrams

Find the part on the Side Cover diagram for your 1986 Yamaha TT350 (TT350S), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

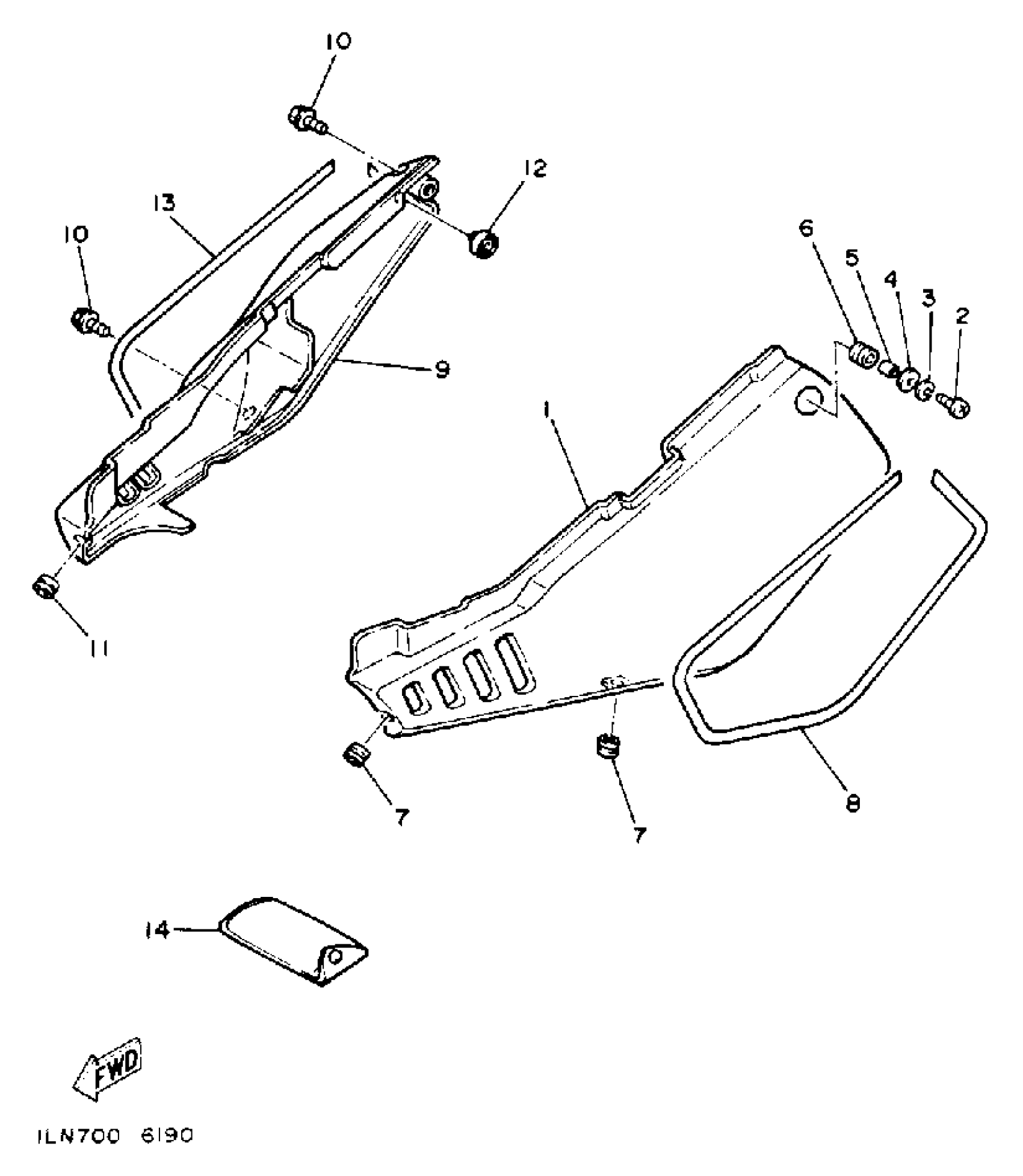

1986 Yamaha TT350 (TT350S) Side Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, SIDE 1

1LN-21711-00-00

1
Out of stock

2

SCREW, PAN HEAD (76T)

98517-06025-00

1

$3.12

In stock

3

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

4

WASHER, PLATE

90201-06020-00

1

$6.28

In stock

5

COLLAR (1T2)

90387-07598-00

1

$4.83

In stock

6

GROMMET 839774310000

90480-14023-00

1

$4.74

In stock

7

GROMMET

90480-12320-00

1

$6.71

In stock

8

GRAPHIC SET 1

1LN-2173L-00-00

1
Out of stock

9

COVER, SIDE 2

1LN-21721-00-00

1
Out of stock

10

SCREW, PANHEAD W/WASHER (22F)

90159-06082-00

1
Out of stock

11

GROMMET

90480-12320-00

1

$6.71

In stock

12

DAMPER, LOCATING 1

22W-24181-00-00

1
Out of stock

13

GRAPHIC SET 2

1LN-2174L-00-00

1
Out of stock

14

TOOL KIT

1LN-W2810-01-00

1
Out of stock
