1986 Yamaha TT350 (TT350S) Headlight Diagram

← All diagrams

Find the part on the Headlight diagram for your 1986 Yamaha TT350 (TT350S), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

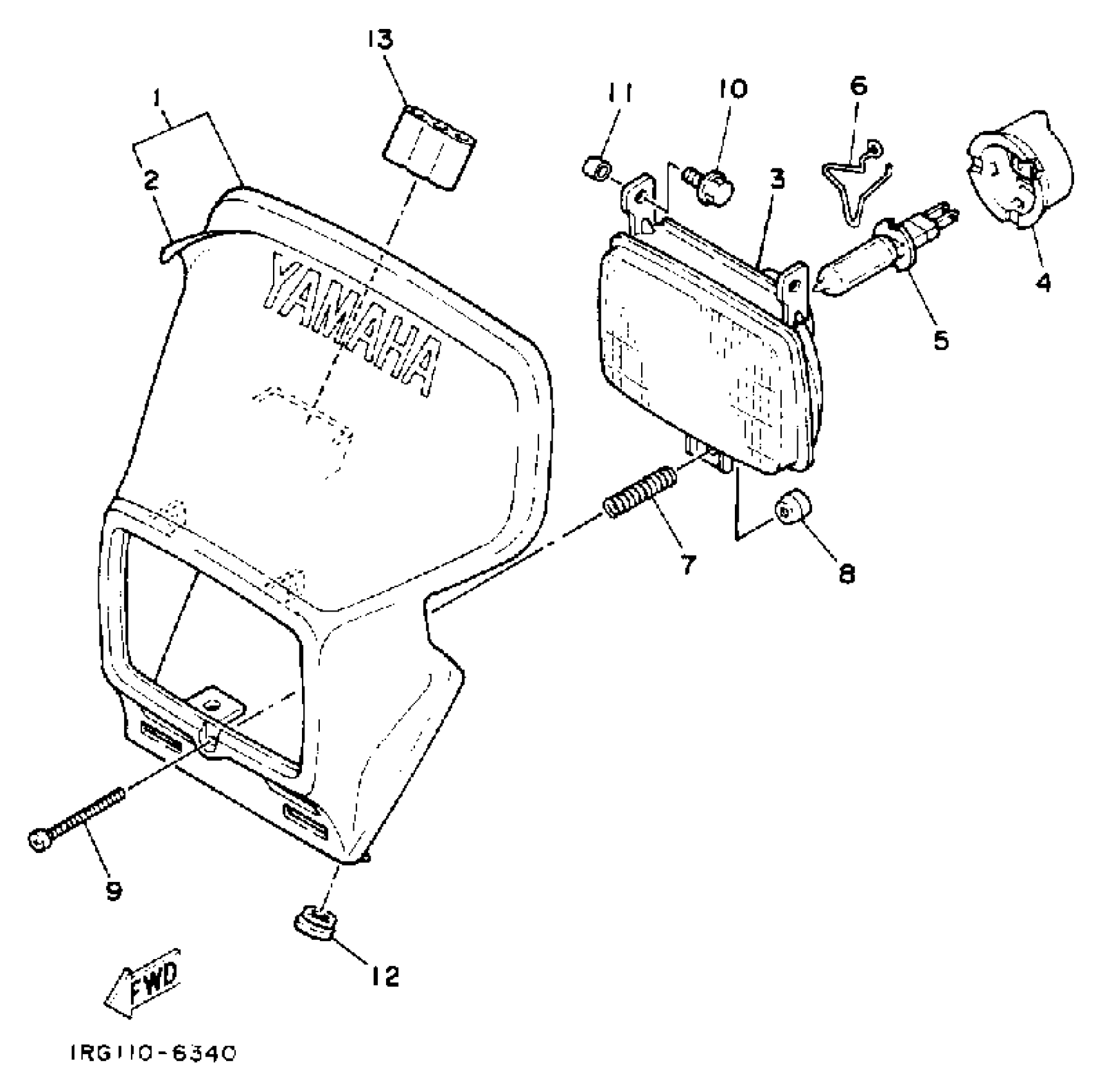

1986 Yamaha TT350 (TT350S) Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BODY, HEADLIGHT

1RG-W8411-00-00

1
Out of stock

2

. EMBLEM, HEADLIGHT

1RG-84141-00-00

1
Out of stock

3

LENS ASSEMBLY

55U-84320-00-00

1
Out of stock

4

COVER, SOCKET

55U-84397-00-00

1
Out of stock

5

BULB, H.L.12V55W (12V-55W)

55U-84314-H0-00

1
Out of stock

6

SPRING, REFLECTOR

55U-84324-00-00

1
Out of stock

7

SPRING, SCREW

55U-84332-00-00

1
Out of stock

8

NUT, ADJUSTING

50W-84334-00-00

1
Out of stock

9

SCREW, PAN HEAD

98580-04540-00

1
Out of stock

10

BOLT, SPECIAL

55U-84337-00-00

—
Out of stock

11

SPACER

55U-84328-00-00

1
Out of stock

12

DAMPER, SIDE COVER (437)

90480-12053-00

1

$5.78

In stock

13

DAMPER

4V5-83592-00-00

1
Out of stock
