1982 Yamaha TT250 (TT250J) Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 1982 Yamaha TT250 (TT250J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

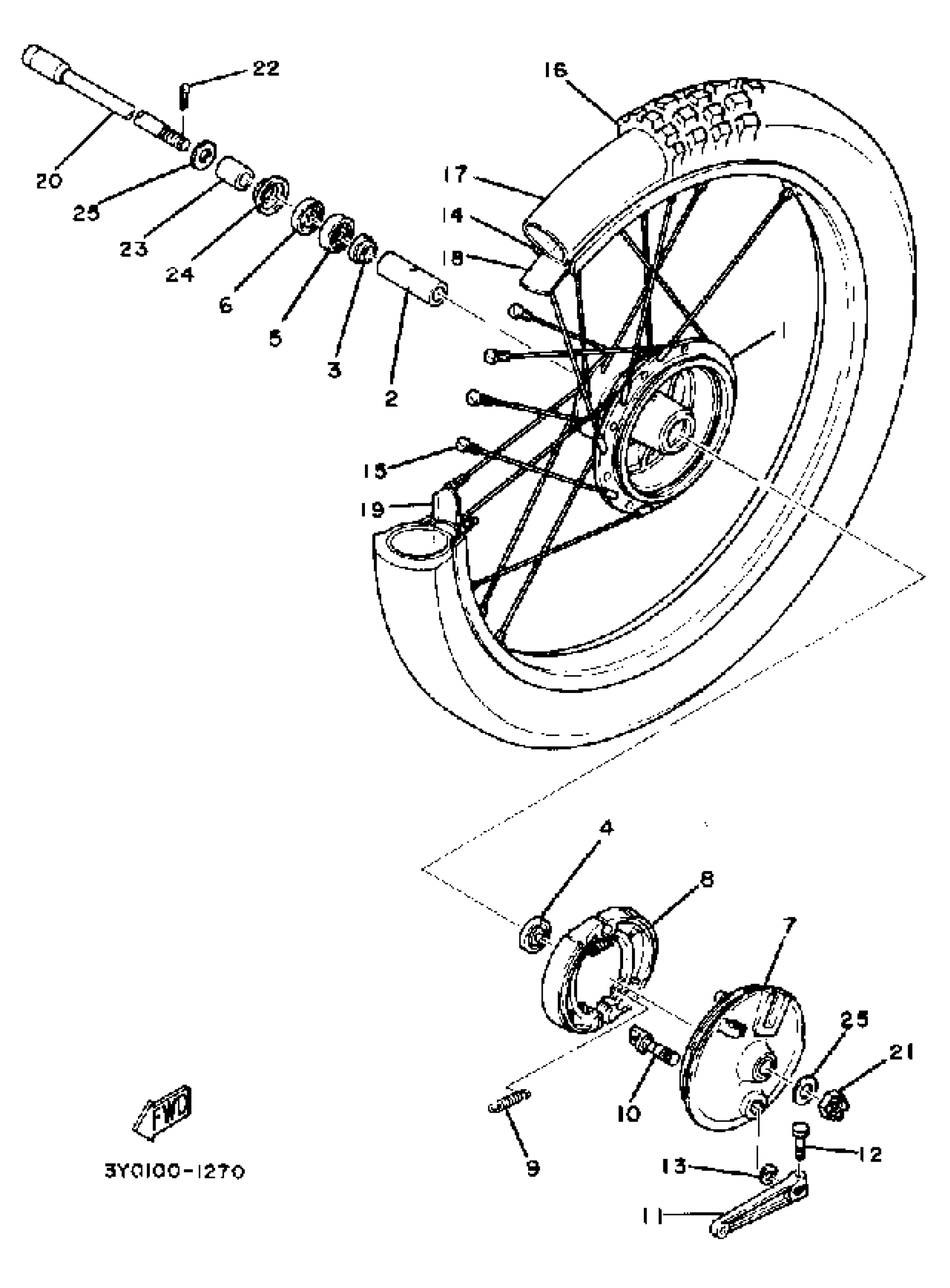

1982 Yamaha TT250 (TT250J) Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, FRONT

23X-25111-00-98

1
Out of stock

2

SPACER

90560-15116-00

1
Out of stock

3

FLANGE, SPACER

146-25116-00-00

1
Out of stock

4

BEARING(3DL)

93306-20226-00

1

$33.15

In stock

5

BEARING

93306-20205-00

1

$32.63

In stock

6

OIL SEAL (20X35X7-136)

93102-20009-00

1

$9.10

In stock

7

BRAKE SHOE PLT ASSEMBLY (1W1-25121-02-98)

1W1-25016-11-98

1
Out of stock

8

BRAKE SHOE KIT

322-W253A-10-00

1

$31.99

In stock

9

SPRING (5T9)

90506-17328-00

—

$9.32

In stock

10

CAMSHAFT

23X-25151-00-00

1
Out of stock

11

LEVER, CAMSHAFT 1

322-25155-00-00

1
Out of stock

12

BOLT, HEXAGON (462)

90101-06291-00

1

$6.68

In stock

13

SEAL, CAMSHAFT

137-25159-00-00

1
Out of stock

14

RIM 1.60X21

94416-21234-00

1
Out of stock

15

SPOKE SET, FRONT

2W6-25104-02-00

1
Out of stock

16

90/90-21 M2EA-TT

94109-212F8-00

1
Out of stock

17

TUBE, FRONT (2A6)

94227-21123-00

—

$43.59

In stock

18

BAND, RIM (2A6)

94330-21084-00

—

$13.89

In stock

19

SPACER, BEAD

1T1-25194-00-00

—

$53.98

In stock

20

AXLE, WHEEL

1W1-25181-01-00

—

$35.14

In stock

21

NUT, CASTLE(2UJ)

90171-14056-00

—

$10.57

In stock

22

PIN, COTTER

91490-30030-00

—

$7.15

In stock

23

COLLAR (1W1)

90387-15600-00

—

$15.34

In stock

24

COVER, HUB DUST

322-25118-00-00

—

$16.17

In stock

25

WASHER, PLATE (3Y2)

90201-15785-00

—
Out of stock
