1981 Yamaha TT250 (TT250H) Transmission Diagram

← All diagrams

Find the part on the Transmission diagram for your 1981 Yamaha TT250 (TT250H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

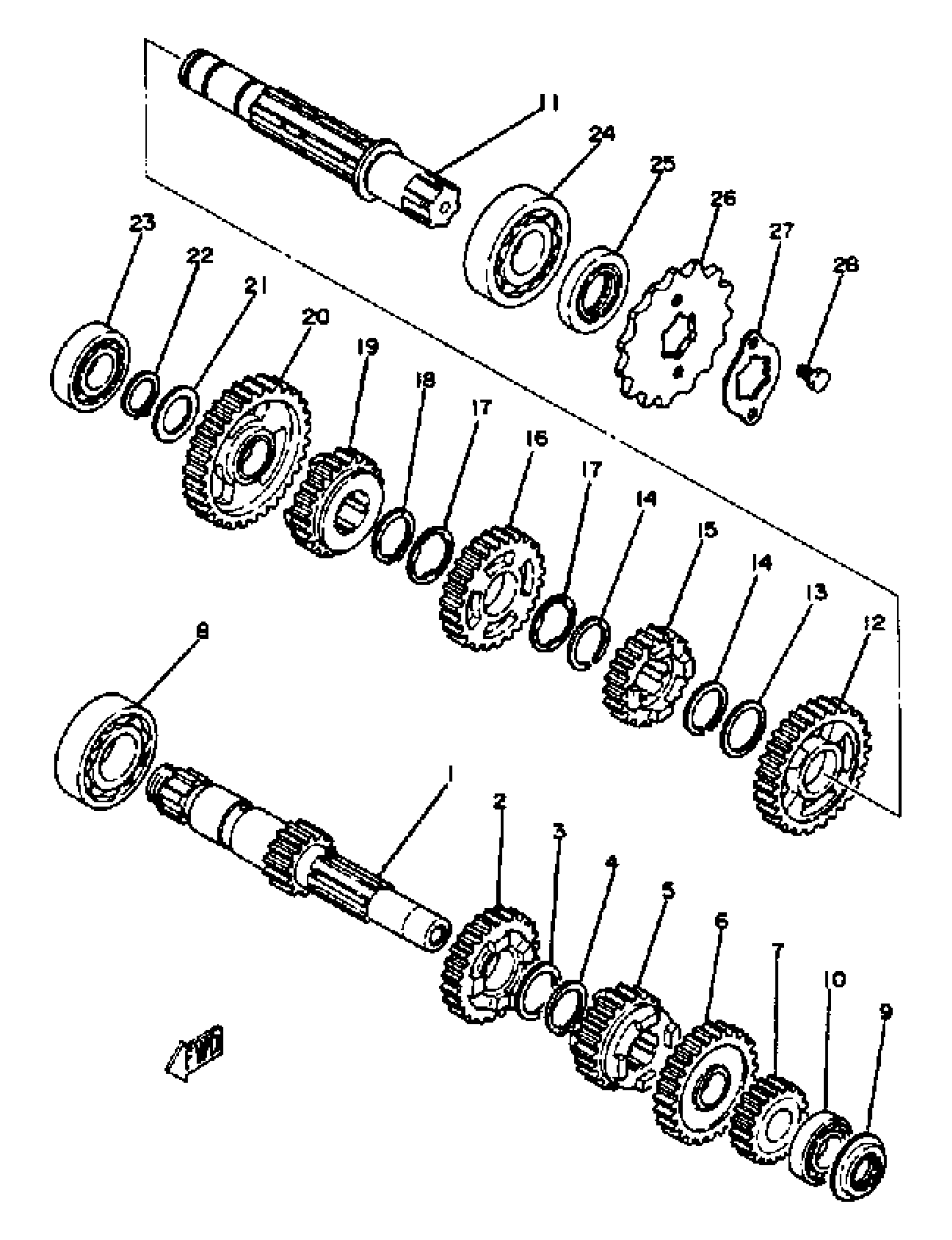

1981 Yamaha TT250 (TT250H) Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

AXLE, MAIN

3Y1-17411-00-00

1
Out of stock

2

GEAR,4TH PINION

4DN-17141-00-00

1
Out of stock

3

WASHER, PLATE (3Y1)

90201-22793-00

1

$5.75

In stock

4

CIRCLIP (537)

93410-22039-00

1

$6.17

In stock

5

GEAR, 3RD PINION

3Y1-17131-01-00

—

$53.49

In stock

6

GEAR,5TH PINION

4DN-17151-00-00

1
Out of stock

7

GEAR, 2ND PINION (19T)

3Y1-17121-01-YX

—

$23.83

In stock

8

BEARING (3Y1)

93306-20541-00

1

$33.15

In stock

9

OIL SEAL (3Y1)

93101-17093-00

—

$12.68

In stock

10

BEARING(2JN)

93306-00315-00

1

$27.16

In stock

11

DRIVE AXLE ASSY

3Y1-17402-00-00

—

$182.02

In stock

12

GEAR, 2ND WHEEL

3Y1-17221-02-00

1

$52.58

In stock

13

WASHER, PLATE(59W)

90201-253K0-00

1

$6.18

In stock

14

CIRCLIP (4L0)

93440-25084-00

1

$3.96

In stock

15

GEAR, 5TH WHEEL

4DN-17251-00-00

—
Out of stock

16

GEAR, 3RD WHEEL

3Y1-17231-02-00

—

$66.03

In stock

17

WASHER (3J3)

90209-22191-00

—

$5.62

In stock

18

CIRCLIP(JF7)

99009-25400-00

—

$6.68

In stock

19

GEAR,4TH WHEEL

4DN-17241-00-00

1
Out of stock

20

GEAR, 1ST WHEEL

3Y1-17211-00-00

—

$56.34

In stock

21

WASHER PLATE 328171160000

90201-20276-00

—
Out of stock

22

CIRCLIP(1AR)

99009-20400-00

—
Out of stock

23

BEARING (5Y1)

93306-00426-00

—

$35.60

In stock

24

BEARING (3Y1)

93306-30525-00

—
Out of stock

25

OIL SEAL (3Y1)

93102-25208-00

—

$11.54

In stock

26

SPROCKET, DRIVE

93834-14051-00

1
Out of stock

26

SPROCKET,DRIVE 15T(3Y11746150)

93834-15078-00

1
Out of stock

26

—

$16.98

In stock

27

HOLDER, SPROCKET

3Y1-17456-00-00

—

$6.38

In stock

28

BOLT(3JP)

97017-06010-00

—

$2.62

In stock
