1981 Yamaha TT250 (TT250H) Side Cover - Tool Diagram

← All diagrams

Find the part on the Side Cover - Tool diagram for your 1981 Yamaha TT250 (TT250H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

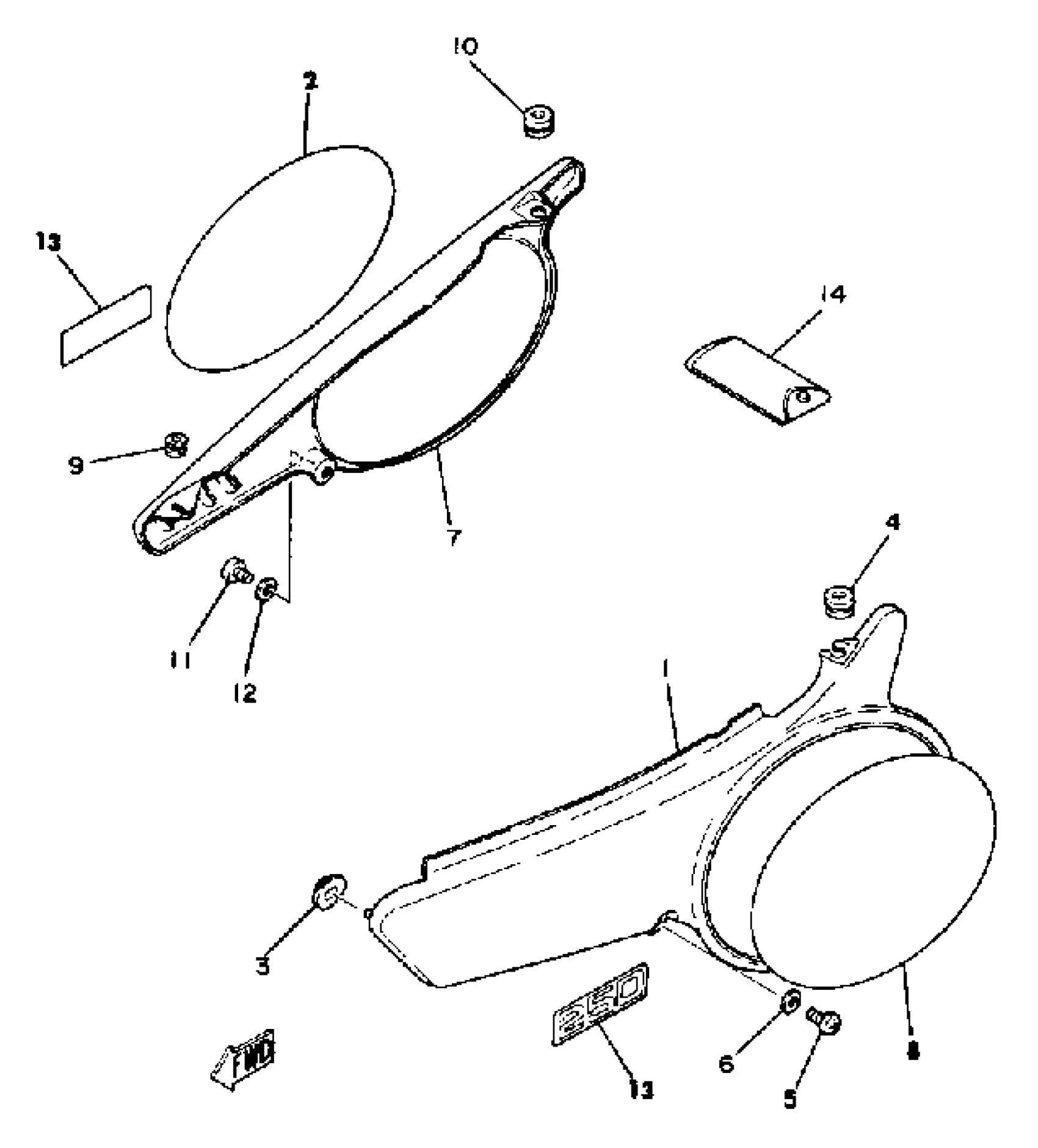

1981 Yamaha TT250 (TT250H) Side Cover - Tool Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, SIDE 1

3Y0-21711-00-00

1
Out of stock

2

EMBLEM

322-23395-00-00

1
Out of stock

3

GROMMET(41Y)

90480-01401-00

1

$5.51

In stock

4

DAMPER, SIDE COVER (437)

90480-12053-00

1

$5.78

In stock

5

SCREW, PAN HEAD(62J)

97885-06012-00

1

$2.90

In stock

6

WASHER, PLATE

90201-06380-00

1

$0.57

In stock

7

COVER, SIDE 2

3Y0-21721-00-00

1
Out of stock

8

EMBLEM

322-23395-00-00

1
Out of stock

9

GROMMET (3Y2)

90480-08264-00

1

$6.68

In stock

10

DAMPER, SIDE COVER (437)

90480-12053-00

1

$5.78

In stock

11

SCREW, PAN HEAD(62J)

97885-06012-00

1

$2.90

In stock

12

WASHER, PLATE

90201-06380-00

1

$0.57

In stock

13

EMBLEM

(2X4-21737-00-00)

1
Out of stock

14

TOOL KIT

(5X5-28100-00-00)

1
Out of stock
