1981 Yamaha TT250 (TT250H) Meter KIT Diagram

← All diagrams

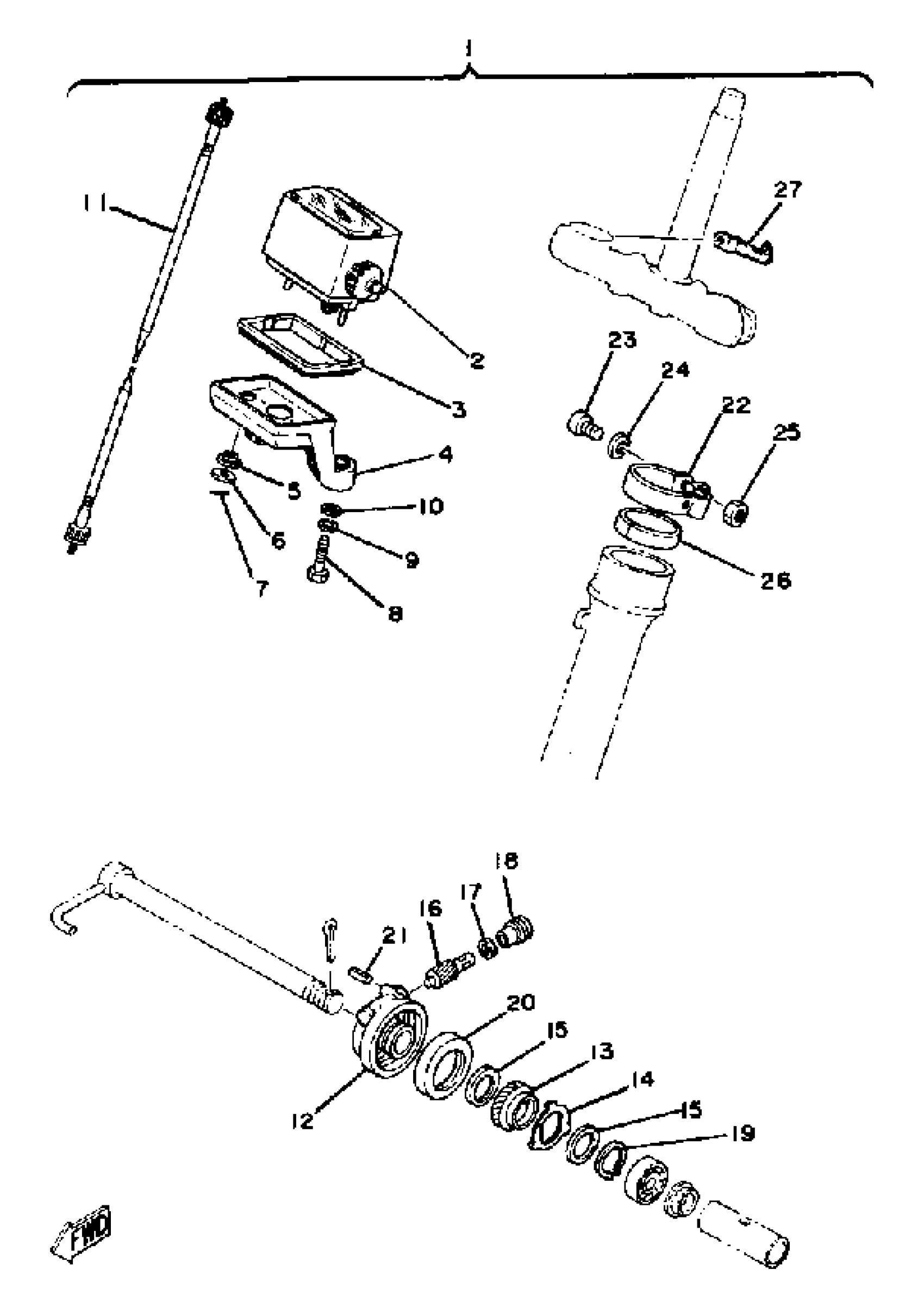

Find the part on the Meter KIT diagram for your 1981 Yamaha TT250 (TT250H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Yamaha TT250 (TT250H) Meter KIT Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

2002504234

3Y0-W0081-00-00

1
Out of stock

2

. SPEEDOMETER ASSEMBLY

3R8-83570-60-00

1
Out of stock

3

. DAMPER

3R8-83513-00-00

1
Out of stock

4

. BRACKET, METER

3R8-83519-00-00

1
Out of stock

5

DAMPER 2

1M1-83526-01-00

1

$3.78

In stock

6

WASHER PLATE 803835240000

90201-05032-00

—

$6.71

In stock

7

CLIP (156-83525-00)

90468-10050-00

1

$2.31

In stock

8

BOLT, HEXAGON

97017-06030-00

1

$3.00

In stock

9

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

10

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

11

SPEEDOMETER CABLE ASSY

16M-83550-01-00

1
Out of stock

12

GEAR UNIT ASSY

3XP-25190-00-00

—
Out of stock

13

GEAR, DRIVE

1W2-25135-00-00

1
Out of stock

14

CLUTCH, METER

1K7-25149-00-00

1
Out of stock

15

WASHER PLATE 214251470000

90201-22283-00

1

$5.38

In stock

16

GEAR, METER

1W2-25138-00-00

1
Out of stock

17

SHIM, ROD

102-18416-00-00

1
Out of stock

18

BUSH

306-25136-00-00

1
Out of stock

19

CIRCLIP(1EY)

99009-22400-00

—

$6.17

In stock

20

OIL SEAL(3BC)

93106-40027-00

—

$13.22

In stock

21

PIN, SPRING (V60)

91609-20014-00

—

$1.78

In stock

22

HOLDER, CABLE 1

1W2-23318-00-00

1
Out of stock

23

SCREW, PAN HEAD(4MY)

98507-05018-00

—

$2.48

In stock

24

WASHER, PLAIN (646)

92990-05600-00

—
Out of stock

25

NUT, HEXAGON (663)

95380-05600-00

—

$6.17

In stock

26

DAMPER 2

3FA-21639-00-00

—

$2.42

In stock

27

CLAMP

(90462-08035-00)

1
Out of stock
