1981 Yamaha TT250 (TT250H) Exhaust Diagram

← All diagrams

Find the part on the Exhaust diagram for your 1981 Yamaha TT250 (TT250H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

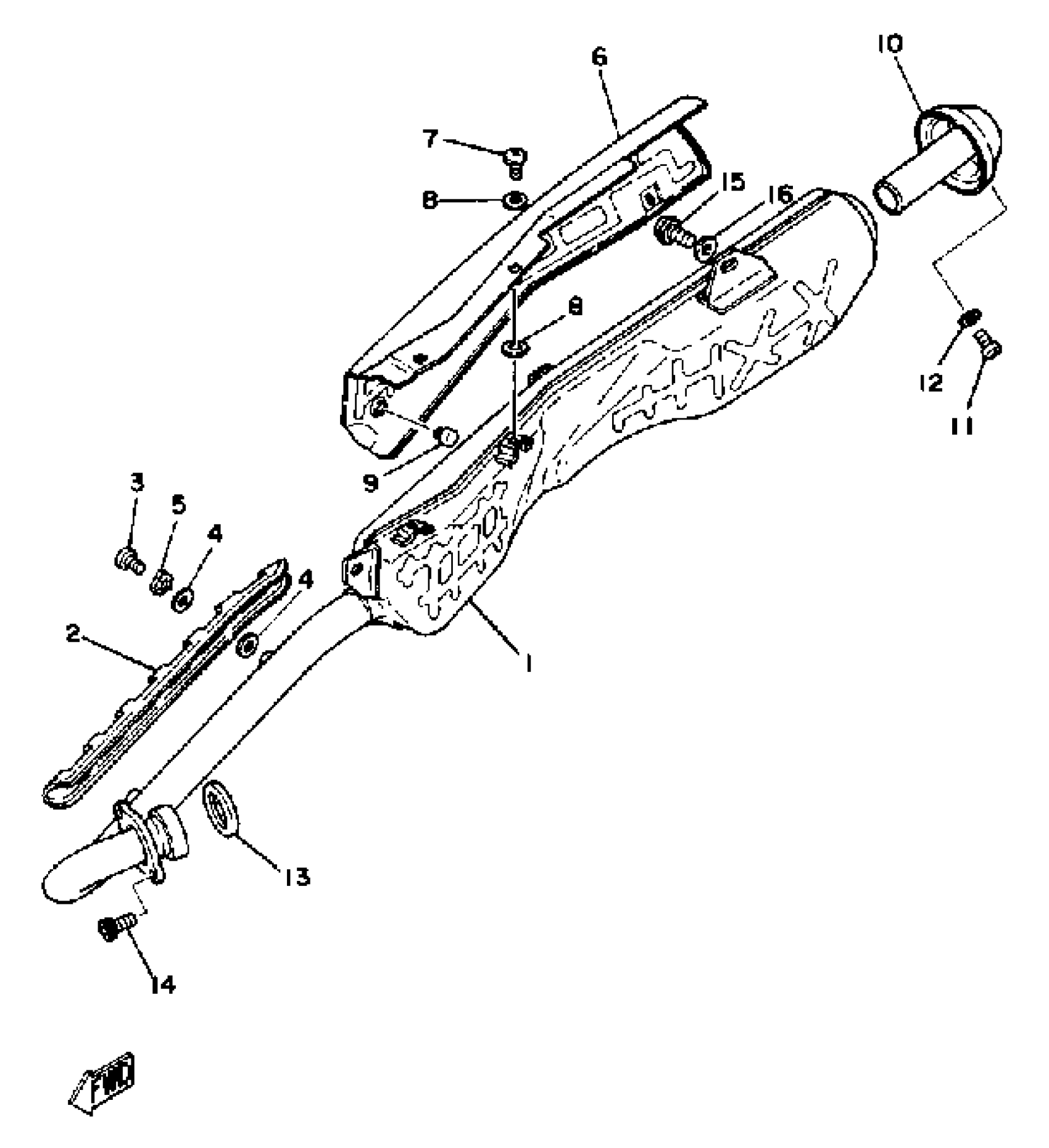

1981 Yamaha TT250 (TT250H) Exhaust Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

MUFFLER L

3Y0-14711-00-00

1
Out of stock

2

MUFFLER L

3Y0-14711-00-00

1
Out of stock

3

SCREW, BINDING

98907-06008-00

1
Out of stock

4

WASHER, PLATE(3MB)

90202-05187-00

1
Out of stock

5

WASHER, WAVE(3RW)

90206-06090-00

1
Out of stock

6

PROTECTOR, MUFF 1

3Y0-14718-01-00

1
Out of stock

7

SCREW, BINDING

98907-06008-00

1
Out of stock

8

WASHER, PLATE(3MB)

90202-05187-00

1
Out of stock

9

DAMPER, MUFFLER

(3Y0-14737-00-00)

1
Out of stock

10

PIPE, OUTLET

(3Y0-14752-00-98)

1
Out of stock

11

SCREW, PAN HEAD(6A3)

97885-06008-00

1
Out of stock

12

WASHER, SPRING

92995-06100-00

1
Out of stock

13

GASKET, EXHAUST PIPE

4BE-14613-00-00

1
Out of stock

14

BOLT,SOCKET

91317-06025-00

1
Out of stock

15

BOLT, FLANGE(JN5)

95817-08016-00

1
Out of stock

16

WASHER (853)

90201-08326-00

—
Out of stock
