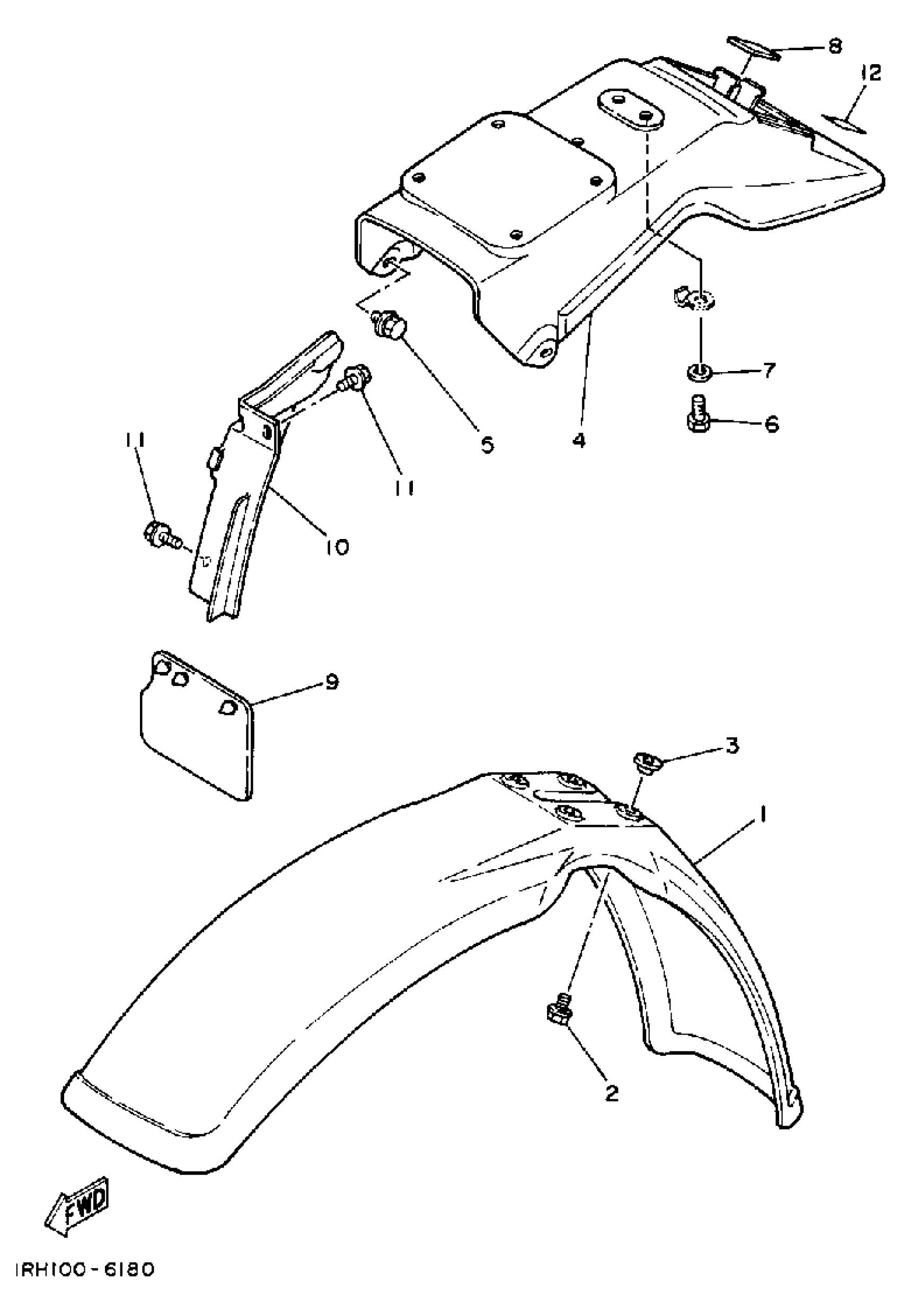

Yamaha TT225T (TT225) 1987 FENDER Diagram

#

Description
Price

1

FENDER, FRONT

10V-21511-00-00

Unavailable

2

BOLT, WITH WASHER (10V)

90119-06063-00

$5.98

3

COLLAR (8G8)

90387-06681-00

$6.30

4

FENDER, REAR

1RH-21610-00-00

Unavailable

5

BOLT, WITH WASHER

90119-06152-00

$2.61

6

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$1.81

7

WASHER, SPRING

92995-06100-00

$2.83

8

DAMPER

22F-2139X-00-00

$6.08

9

FLAP

34X-21691-00-00

$17.73

10

GUARD, MUD

(1RH-21629-00-00)

Unavailable

11

BOLT, WITH WASHER

90119-06152-00

$2.61

12

LABEL, SAFETY

288-21659-00-00

Unavailable
