1977 Suzuki TS75 Rear Swinging ARM Diagram

← All diagrams

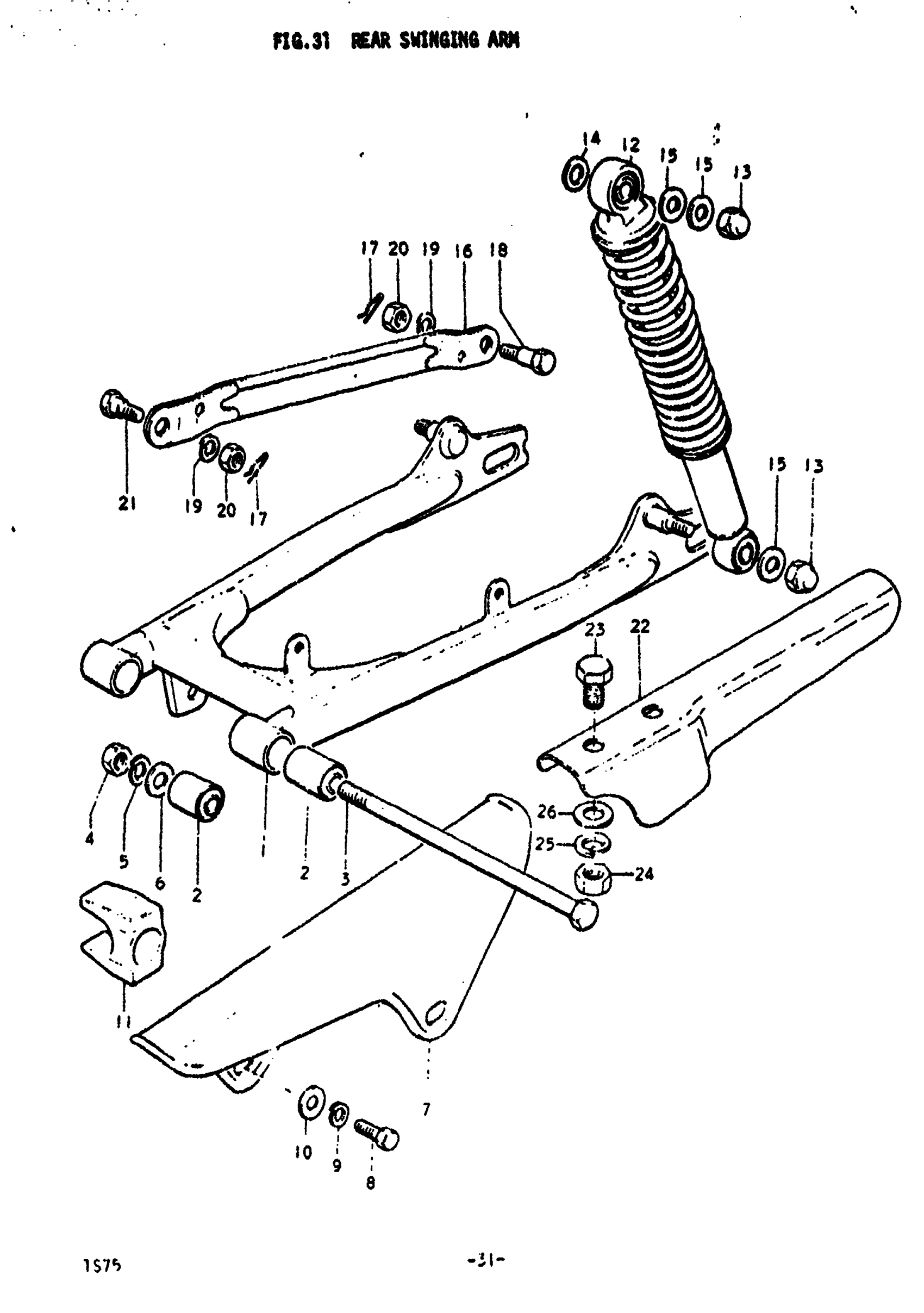

Find the part on the Rear Swinging ARM diagram for your 1977 Suzuki TS75, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1977 Suzuki TS75 Rear Swinging ARM Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SWINGING ARM, REAR | Includes Item(s) 2

61100-26820-019

1
Out of stock

2

BUSHING

09319-10009

2
Out of stock

3

SHAFT, PIVOT

61211-25001

1
Out of stock

4

NUT This part replaces 08311-11108.

08310-00107

1
Out of stock

5

LOCK WASHER This part replaces 08321-21108.

08321-01107

1
Out of stock

6

WASHER This part replaces 08322-21108.

08322-01107

2
Out of stock

7

CASE, CHAIN | M,A

61310-26101-126

1
Out of stock

7

CASE, CHAIN | B This part replaces 61310-26101-019.

61310-26101-126

1
Out of stock

8

BOLT | M,A; 6x9

09100-06011

2
Out of stock

8

BOLT | B This part replaces 01112-06108.

01500-06107

2
Out of stock

9

2

$2.28

In stock

10

WASHER This part replaces 08322-21068.

08322-01067

2
Out of stock

11

BUFFER

61273-26000

1
Out of stock

12

NO DESCRIPTION AVAILABLE This part replaces 62100-26131.

62100-26030

2
Out of stock

13

NUT This part replaces 08313-11107.

08313-10107

4
Out of stock

14

WASHER This part replaces 08322-11128.

08322-01127

2
Out of stock

15

WASHER, LOWER (10.5X24X2.3) | 10.5x24x2.3 This part replaces 09160-10001.

09160-10093

6
Out of stock

16

TORQUE LINK, REAR

64310-26100

1
Out of stock

17

CLIP This part replaces 09385-10001.

09385-10005

2
Out of stock

18

BOLT, REAR BRAKE PEDAL

09111-08013

1
Out of stock

19

2

$2.28

In stock

20

NUT

09140-08008

2
Out of stock

21

BOLT, TORQUE LINK FRONT

09111-08012

1
Out of stock

22

END, CHAIN CASE | OPT

61331-30000

1
Out of stock

23

BOLT | OPT This part replaces 01112-06108.

01500-06107

2
Out of stock

24

.NUT | OPT This part replaces 08311-11068.

08310-00067

2
Out of stock

25

2

$2.28

In stock

26

WASHER | OPT This part replaces 08322-21068.

08322-01067

2
Out of stock
