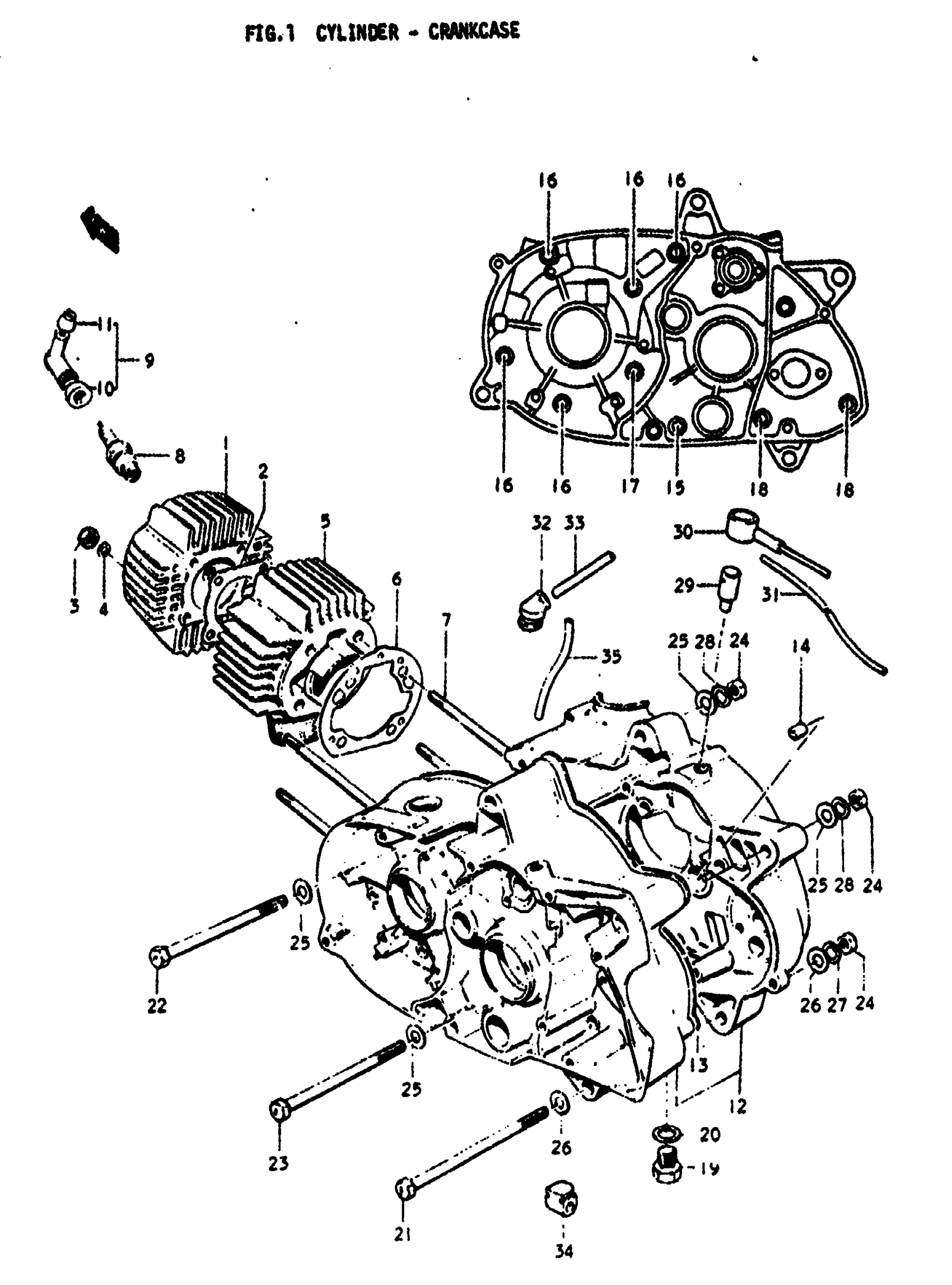

Suzuki TS75 (1977) CYLINDER - CRANKCASE Diagram

#

Description
Price

1

CYLINDER HEAD | M

11111-06000

Unavailable

1

CYLINDER HEAD | A,B

11111-26100

Unavailable

2

GASKET

11141-26100

Unavailable

3

.NUT This part replaces 08311-11068.

08310-00067

$1.83

4

LOCK WASHER This part replaces 08321-21068.

08321-01067

$1.83

5

CYLINDER | M

11210-22500

Unavailable

5

CYLINDER | A,B

11210-26100

Unavailable

6

CYLINDER GASKET | FROM 11241-05001 This part replaces 11241-19300.

11241-19310

Unavailable

7

STUD BOLT

09108-06026

$3.80

8

SPARK PLUG | NGK, B-7HS TO 09482-00082 This part replaces 09482-00050.

09482-00082

$2.80

8

SPARK PLUG | ND, W22FS TO 09482-00083 This part replaces 09482-00052.

09482-00082

$2.80

9

CAP SET,SPARK P | Includes Item(s) 11 This part replaces 33500-69810.

33500-69811

Unavailable

11

SEAL, SPARK PLUG

33541-69010

$4.11

12

NO DESCRIPTION AVAILABLE This part replaces 11300-22841.

11300-26823

Unavailable

12

NO DESCRIPTION AVAILABLE | A,B; Includes Item(s) 13 - 20 This part replaces 11300-26821.

11300-26823

Unavailable

13

GASKET,CRANKCAS This part replaces 11481-05000.

11481-05010

Unavailable

14

DOWEL PIN

04211-09129

$1.64

15

SCREW

02112-06657

$2.64

16

SCREW (6X45) This part replaces 02112-06458.

02112-06457

$1.77

17

SCREW (6X40) This part replaces 02112-06408.

02112-06407

$1.80

18

SCREW

02112-06307

$1.99

19

PLUG, OIL DRAIN

09247-10001

$2.06

20

GASKET

09168-10002

$1.96

21

BOLT, ENGINE MOUNTING LOWER | 8x110

09100-08026

Unavailable

22

BOLT | 8x105 This part replaces 09100-08024.

09100-08228

$7.62

23

BOLT, ENGINE MOUNTING REAR | 8x100

09100-08023

Unavailable

24

NUT This part replaces 08312-11088.

08310-00087

$1.83

25

WASHER | M,A This part replaces 08322-11088.

08322-01087

$1.86

26

WASHER | M,A This part replaces 08322-21088.

08322-01087

$1.86

27

.LOCK WASHER | M,A This part replaces 08321-31088.

08321-01087

$1.83

28

.LOCK WASHER | M,AB This part replaces 08321-21088.

08321-01087

$1.83

29

PLUG, BREATHER This part replaces 24821-09000.

24821-09001

$10.25

30

BREATHER PLUG C This part replaces 24822-26000.

24822-20001

$4.18

31

HOSE (3.5X6.5X600) | B This part replaces 09344-03020.

09351-35653-600

$4.19

32

GROMMET, BREATHER HOSE

09309-07008

Unavailable

33

.HOSE | M,A; 5x8.2x180 This part replaces 09343-05018.

09352-50006-600

$6.75

33

HOSE (5X8X2000) | B This part replaces 09344-05005.

09351-50803-00B

$8.21

34

GROMMET, DRAIN HOSE

09309-07009

Unavailable

35

HOSE, BREATHER OVER FLOW | M,A; 5x8.2x65

09343-05111

Unavailable

35

HOSE (5X8X2000) | B This part replaces 09344-05005.

09351-50803-00B

$8.21
