1974 Suzuki TS50 Lylinder - Crankcase Diagram

← All diagrams

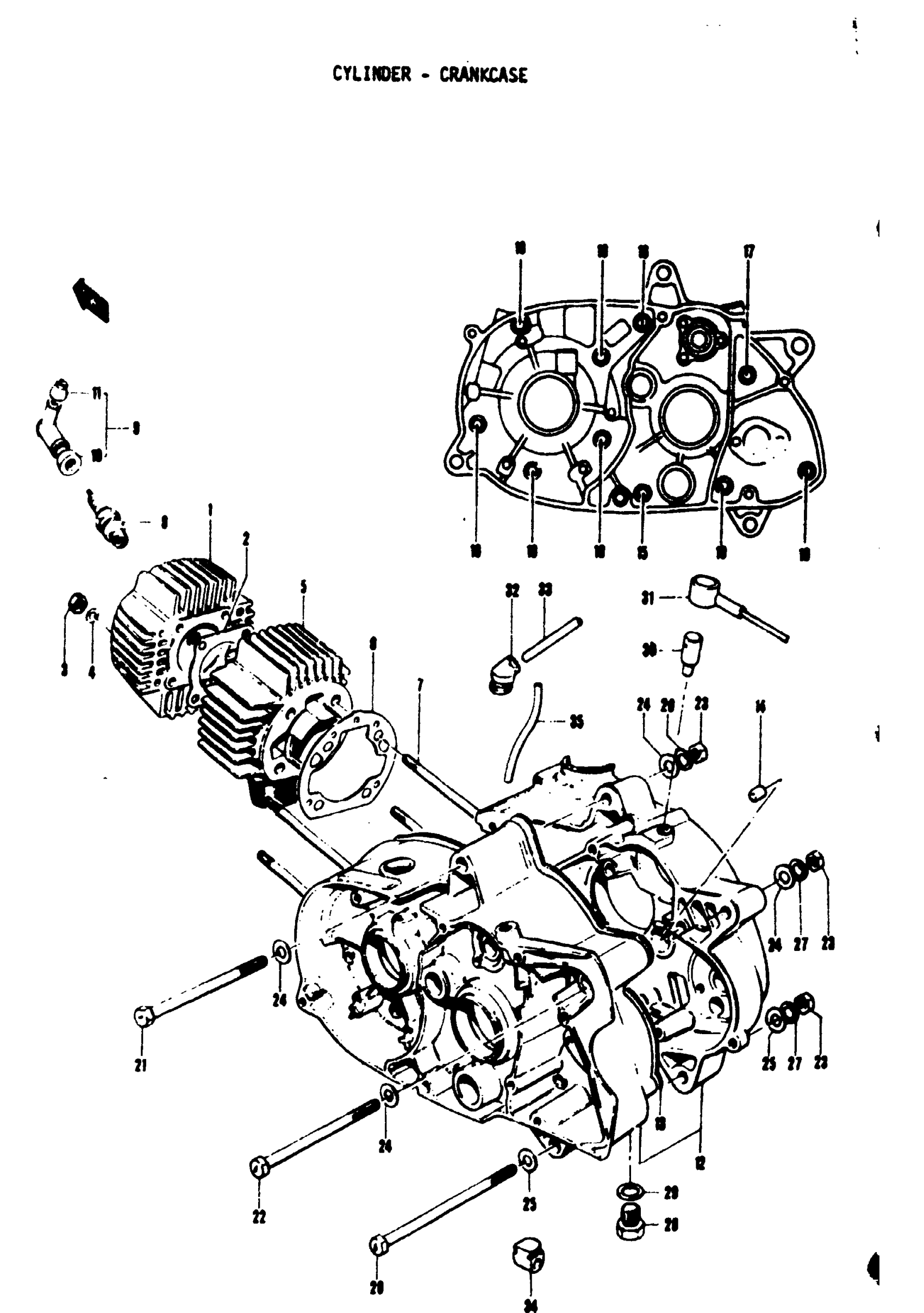

Find the part on the Lylinder - Crankcase diagram for your 1974 Suzuki TS50, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1974 Suzuki TS50 Lylinder - Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEAD, CYLINDER

11111-26000

1
Out of stock

2

GASKET, CYLINDER HEAD This part replaces 11141-14000.

11141-06110

1
Out of stock

3

.NUT This part replaces 08311-11068.

08310-00067

4
Out of stock

4

WASHER This part replaces 08322-21068.

08322-01067

4
Out of stock

5

CYLINDER

11211-26000

1
Out of stock

6

CYLINDER GASKET This part replaces 11241-05001.

11241-19310

1
Out of stock

7

STUD BOLT, CYLINDER

09108-06026

4
Out of stock

8

SPARK PLUG | TS50R,TS50JJ; NGK, B-77HC, OPTTS50R,TS50J,TS50K; NGK, B-77HCM OPT This part replaces 09482-00003.

09482-00082

1
Out of stock

8

SPARK PLUG | TS50R,TS50J,TS50KJ; NGK, B-7HS, OPTL, M; NGK, B-7HS, OPT This part replaces 09482-00050.

09482-00082

1
Out of stock

8

SPARK PLUG B8HS | TS50R,TS59JJ, K; NGK, B-8HS, OPT This part replaces 09482-00057.

09482-00198

1
Out of stock

8

SPARK PLUG | K, L, M; ND, W22FS This part replaces 09482-00052.

09482-00082

1
Out of stock

9

CAP ASSY, SPARK PLUG | Includes Item(s) 10 - 11

33503-10801

—
Out of stock

10

SEAL, SPARK PLUG

33541-22000

—
Out of stock

11

SEAL,HIGH TENSION CORD (SIDE) This part replaces 33542-98000.

33542-38B00

1
Out of stock

12

CRANKCASE ASSY | Includes Item(s) 13 - 19

11302-26801

—
Out of stock

13

GASKET,CRANKCAS This part replaces 11481-05000.

11481-05010

1
Out of stock

14

DOWEL PIN

04211-09129

2
Out of stock

15

SCREW

02112-06657

1
Out of stock

16

SCREW (6X45) This part replaces 02112-06458.

02112-06457

5
Out of stock

17

SCREW (6X40) This part replaces 02112-06408.

02112-06407

1
Out of stock

18

SCREW This part replaces 02112-06358.

02112-06357

1
Out of stock

19

SCREW

02112-06307

2
Out of stock

20

BOLT, ENGINE MOUNTING LOWER | 8x110

09100-08026

1
Out of stock

21

BOLT | 8x105 This part replaces 09100-08024.

09100-08228

1
Out of stock

22

BOLT, ENGINE MOUNTING REAR | 8x100

09100-08023

1
Out of stock

23

3

$1.93

In stock

24

WASHER This part replaces 08322-11088.

08322-01087

4
Out of stock

25

WASHER This part replaces 08322-21088.

08322-01087

2
Out of stock

26

1

$2.28

In stock

27

2

$2.28

In stock

28

PLUG (MAGNETO) This part replaces 09247-14001.

09247-14002

1
Out of stock

29

GASKET | 15.7x19.5x2

09168-14004

1
Out of stock

30

PLUG, BREATHER This part replaces 24821-09000.

24821-09001

1
Out of stock

31

BREATHER PLUG C This part replaces 24822-26000.

24822-20001

1
Out of stock

32

GROMMET, BREATHER HOSE

09309-07008

1
Out of stock

33

.HOSE | 5x8.2x180 This part replaces 09343-05018.

09352-50006-600

2
Out of stock

34

GROMMET, DRAIN HOSE

09309-07009

1
Out of stock

35

HOSE, CARBURETOR OVER FLOW | 5x8.2x65

09343-05111

—
Out of stock
