1974 Suzuki TS50 AIR Cleaner Diagram

← All diagrams

Find the part on the AIR Cleaner diagram for your 1974 Suzuki TS50, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

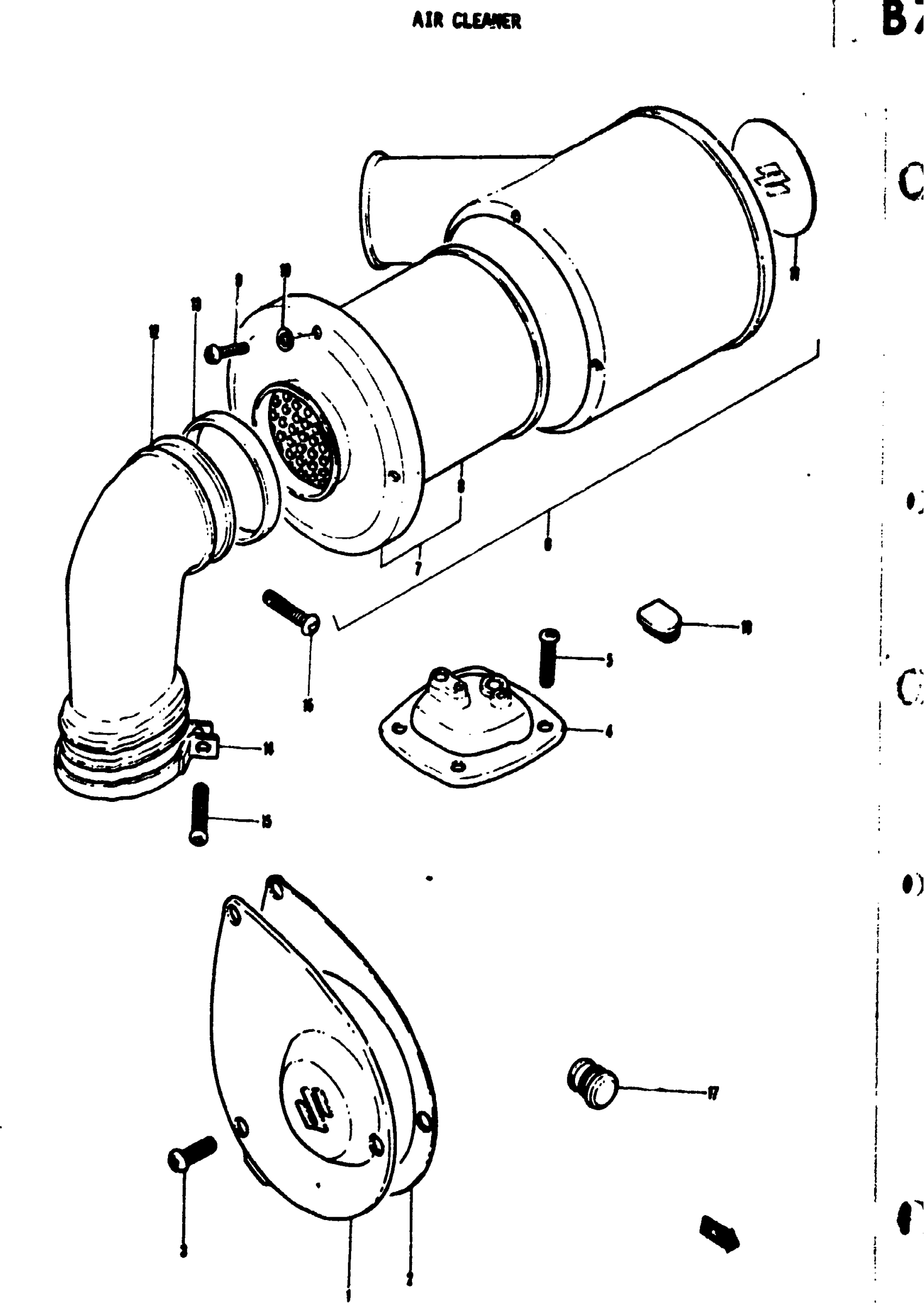

1974 Suzuki TS50 AIR Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CAP, CARBURETOR INSPECTION | WITHOUT LUSTER

11383-26000

—
Out of stock

1

CAP, CARBURETOR INSPECTION | LUSTROUS TO 11383-26002

11383-26001

—
Out of stock

1

CAP, CARBURETOR INSPECTION

11383-26002

1
Out of stock

2

GASKET, CAP

11492-26000

1
Out of stock

3

SCREW This part replaces 02112-06168.

02112-06167

3
Out of stock

4

COVER, CARBURETOR TOP | TO 11440-22500

11440-05004

—
Out of stock

4

COVER,CARBURETO This part replaces 11440-22500.

11440-22501

1
Out of stock

5

SCREW This part replaces 02112-05168.

02112-05167

4
Out of stock

6

CLEANER ASSY, AIR

13700-26610-019

—
Out of stock

6

CLEANER ASSY, AIR | Includes Item(s) 7 - 11

13700-26110-019

—
Out of stock

7

FILTER

13780-26610

1
Out of stock

8

ELEMENT

13781-26610

1
Out of stock

9

3

$1.67

In stock

10

WASHER This part replaces 08322-21048.

08322-01047

3
Out of stock

11

EMBLEM, AIR CLEANER

68235-26110

—
Out of stock

12

HOSE, AIR INLET This part replaces 13881-26000.

13881-26001

1
Out of stock

13

CLAMP This part replaces 09402-00234.

09402-54303

1
Out of stock

13

CLAMP, HOSE

09402-00094

—
Out of stock

14

CLAMP (2) This part replaces 09402-00207.

09402-58306

1
Out of stock

15

SCREW This part replaces 02111-04207.

02112-0420A

2
Out of stock

16

CAP

09250-12002

1
Out of stock

17

PLUG(OD:19) This part replaces 09250-14002.

09250-14010

1
Out of stock
