1977 Suzuki TS400 Stand - Footrest (L Diagram

← All diagrams

Find the part on the Stand - Footrest (L diagram for your 1977 Suzuki TS400, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

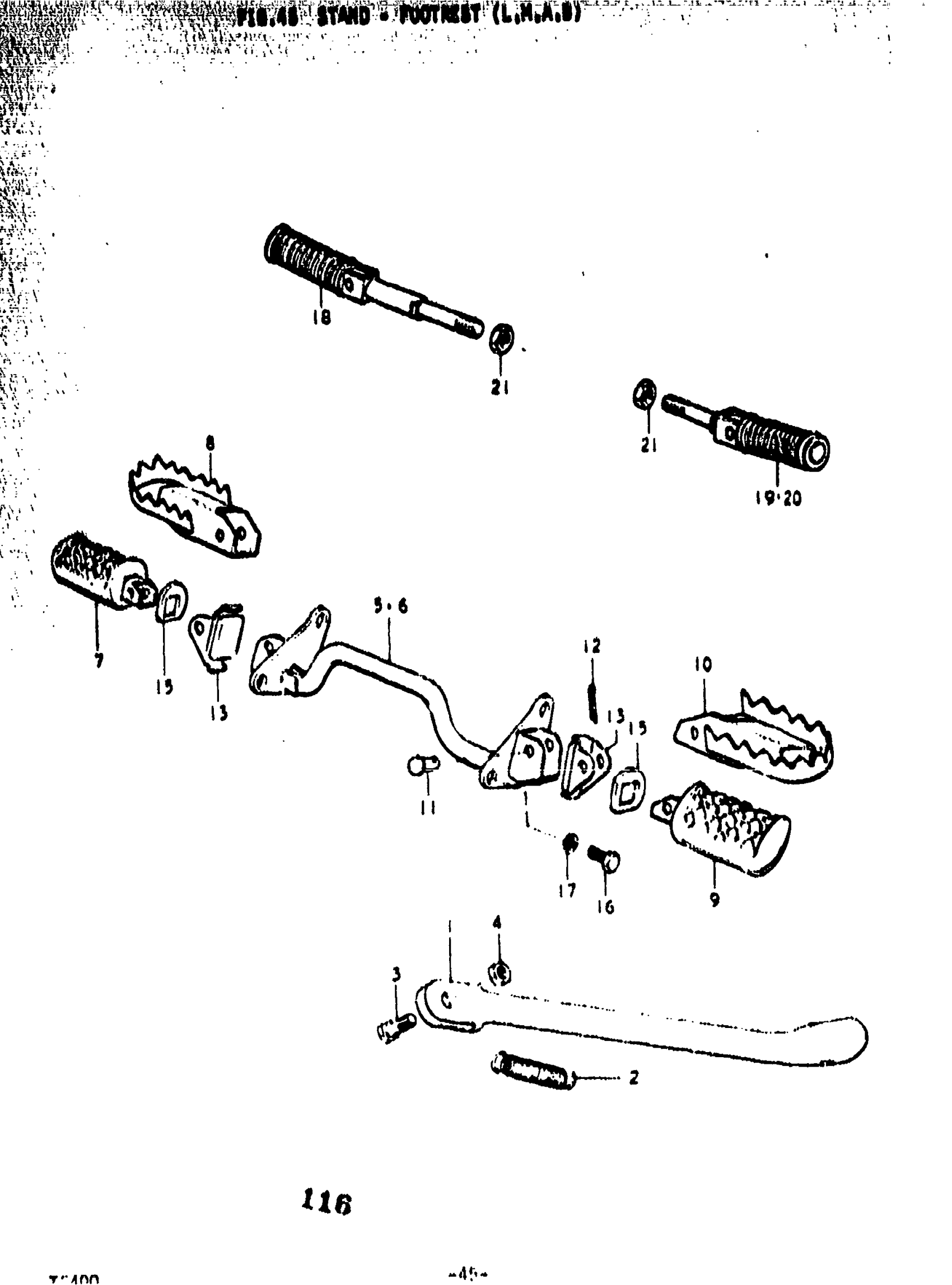

1977 Suzuki TS400 Stand - Footrest (L Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STAND, PROP | L,M,A; TO 42310-41100 This part replaces 42310-16500.

42310-41100

1
Out of stock

1

STAND, PROP | B

42310-41100

1
Out of stock

2

1

$3.00

In stock

3

BOLT | 10x30

09100-10067

1
Out of stock

4

1

$2.35

In stock

5

FOOTREST, FRONT | L,M

43510-32200

1
Out of stock

6

FOOTREST, FRONT | A

43510-32201

—
Out of stock

6

NO DESCRIPTION AVAILABLE | B This part replaces 43510-32202.

43510-32203

—
Out of stock

7

RUBBER, FRONT FOOTREST RH | L,M; SQUARE SHAPED

43550-25301

1
Out of stock

8

FOOTREST, FRONT RH | A,B

43550-25302

1
Out of stock

9

RUBBER, FRONT FOOTREST LN | L,M; SQUARE SHAPED

43560-25301

1
Out of stock

10

FOOTREST, FRONT LH | A,B

43560-25302

1
Out of stock

11

PIN | L,M,A

09200-08011

2
Out of stock

11

PIN | B

09200-08002

2

$2.35

In stock

12

2

$1.31

In stock

13

CUSHION | L,M,A; TO 43570-32201

43570-32200

—
Out of stock

14

SPRING | A,B

09448-14012

2

$2.94

In stock

15

WASHER | L,M

43581-25300

2
Out of stock

16

BOLT, REAR This part replaces 01122-08208.

01500-08207

4
Out of stock

17

4

$2.28

In stock

18

FOOTREST ASSY, PILLIOR RH

43600-32200

1
Out of stock

19

FOOTREST ASSY, PILLIOR LH | L,M

43600-36200

1
Out of stock

20

FOOTREST ASSY, PILLIOR LH | A,B

43600-28000

1
Out of stock

21

NUT, FIXED DRIVE FACE This part replaces 08312-31128.

09140-12039

2
Out of stock
