1977 Suzuki TS400 Rear Brake Diagram

← All diagrams

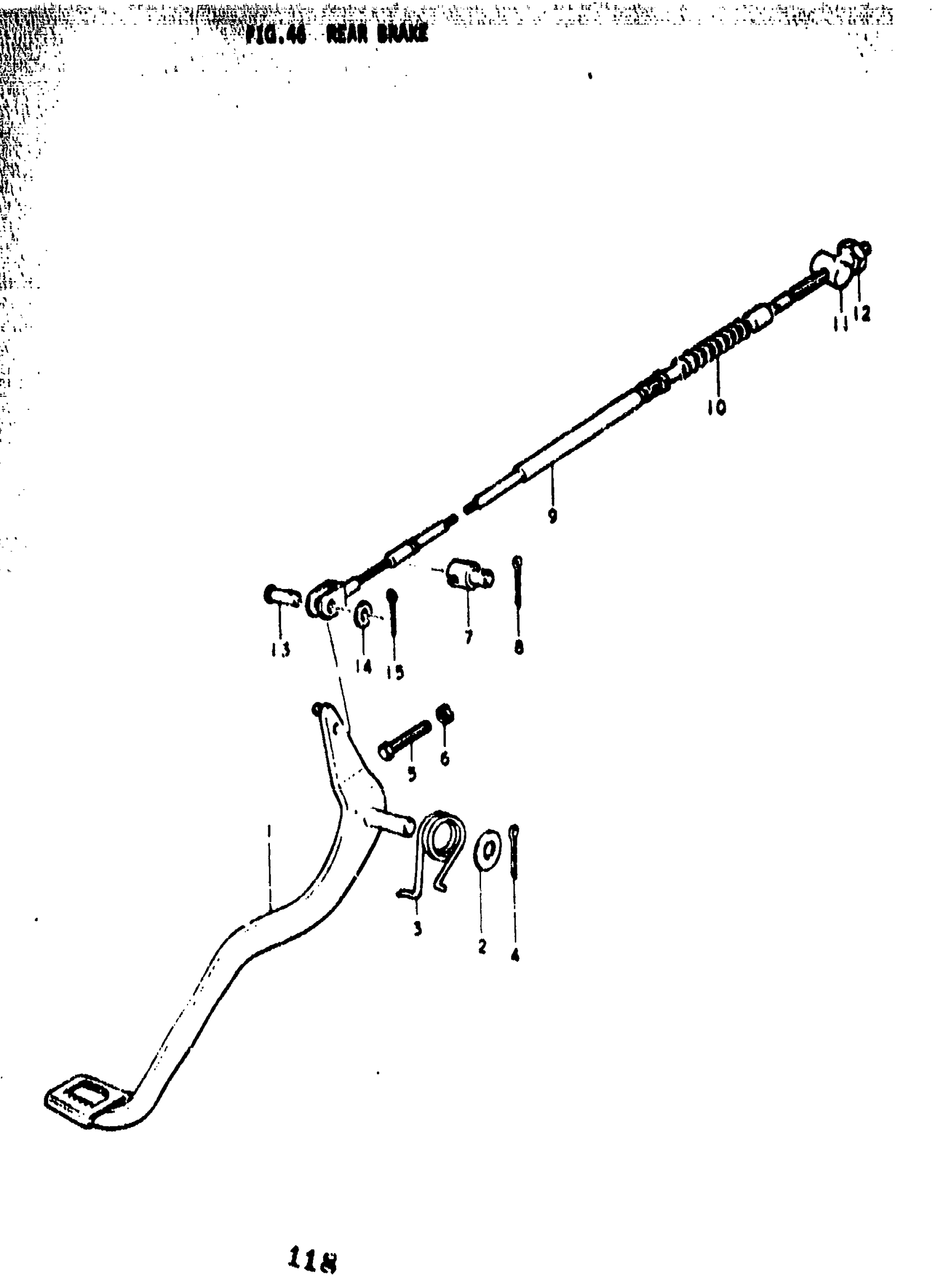

Find the part on the Rear Brake diagram for your 1977 Suzuki TS400, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1977 Suzuki TS400 Rear Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PEDAL, BRAKE

43110-32000

1
Out of stock

2

WASHER This part replaces 08322-11128.

08322-01127

1
Out of stock

3

SPRING

09448-26002

1
Out of stock

4

PIN This part replaces 04111-30308.

04111-3030A

1
Out of stock

5

BOLT

09100-06003

1
Out of stock

6

.NUT This part replaces 08311-11068.

08310-00067

1
Out of stock

7

HOLDER, BRAKE WIRE END | K,L

43221-16501

—
Out of stock

8

1

$1.31

In stock

9

CABLE ASSY, REAR BRAKE | Includes Item(s) 10

58510-16501

1
Out of stock

10

BOOT

09287-05001

1
Out of stock

11

.PIN (13X18) This part replaces 09209-13003.

09209-13018

1
Out of stock

12

.NUT This part replaces 09150-06001.

09150-06010

1
Out of stock

13

PIN

09200-06013

1
Out of stock

14

WASHER This part replaces 08322-21068.

08322-01067

1
Out of stock

15

.COTTER PIN This part replaces 04111-20158.

04111-2015A

2
Out of stock
