1977 Suzuki TS400 Front Wheel Diagram

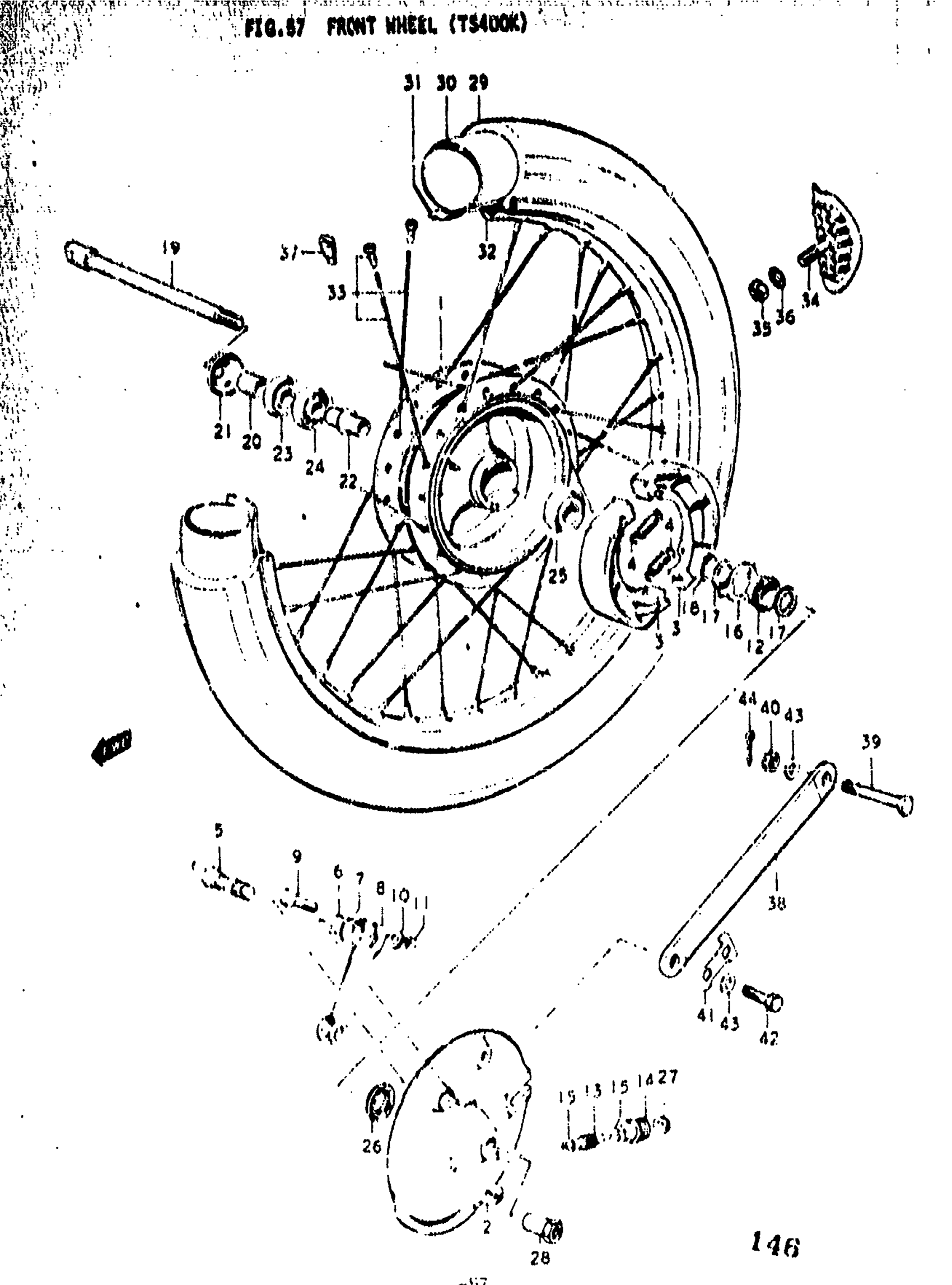

Find the part on the Front Wheel diagram for your 1977 Suzuki TS400, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
1
DRUM
54110-30000
2
PANEL SET | TO 54200-30830
54200-30823
3
$60.12
4
SPRING
55420-30000
5
CAM, BRAKE | TO 54440-30001
54440-30000
8
NO DESCRIPTION AVAILABLE This part replaces 54451-30000.
54451-30001
9
BOLT This part replaces 01112-06408.
01500-0640B
12
GEAR, SPEEDOMETER DRIVE | NT:27
54611-15000
13
GEAR, SPEEDOMETER DRIVEN | NT:9
54621-11000
14
BUSH This part replaces 54632-11020.
54632-49200
18
CIRCLIP This part replaces 08331-11229.
08331-31229
19
AXLE, FRONT
54711-30700
20
SPACER, RH
09180-15018
21
COVER, DUST SEAL
54892-33000
22
SPACER, HUB BEARING
54730-08100
23
OIL SEAL | 22x33x10
09284-22001
26
SEAL,OIL(26X38X | 76x38x6 This part replaces 09285-26001.
09285-26005
28
NUT, FRONT AXLE
54721-30700
29
TIRE | 3.25-19 TO 55100-30600
55100-16411
32
RIM, WHEEL | 1.60Ax19
55311-30020
33
SPOKE SET
55302-30805
34
$66.32
35
NUT
09159-08016
36
WASHER This part replaces 08322-21088.
08322-01087
37
BALANCER, WHEEL
55411-30000
38
TORQUE LINK, FRONT
54311-30700
39
BOLT
09101-08008
41
WASHER
53312-16501
42
BOLT
09100-08013
