1972 Suzuki TS400 Rear Swinging Arm Diagram

← All diagrams

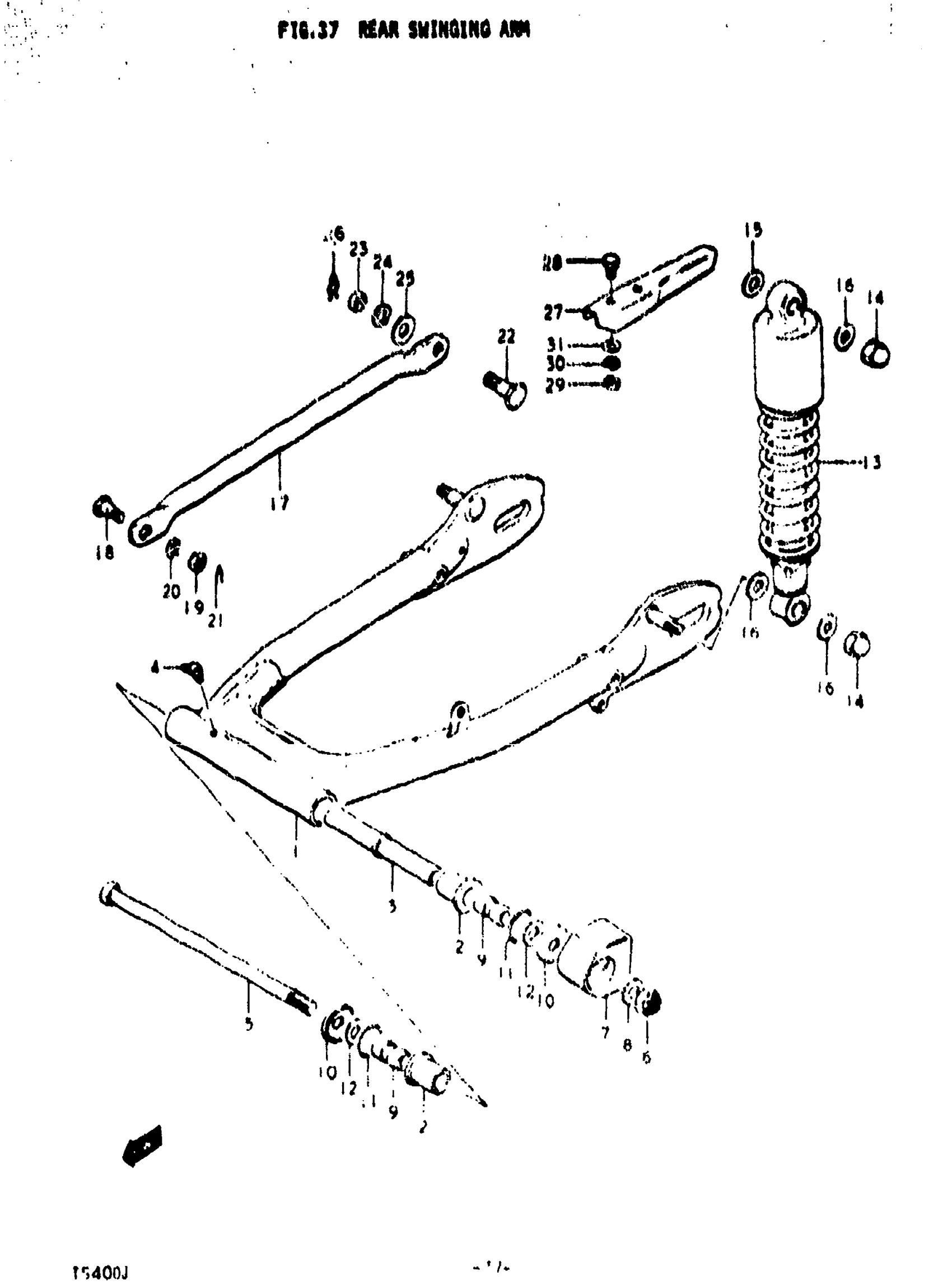

Find the part on the Rear Swinging Arm diagram for your 1972 Suzuki TS400, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1972 Suzuki TS400 Rear Swinging Arm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

REAR SWINGING ARM SET | TO 61100-32823-019 FROM 61101-32804-019; Includes Item(s) 2 - 4

61100-32822-019

—
Out of stock

2

BUSHING This part replaces 09307-22002.

09307-22003

2
Out of stock

3

SPACER

61280-32000

1
Out of stock

4

1

$4.39

In stock

5

SHAFT, REAR SWINGING ARM | TO 61211-15005

61211-15004

—
Out of stock

6

NUT | FROM 09159-14002

09159-14003

1
Out of stock

7

BUFFER, CHAIN TOUCH DEFENSE

61273-32000

1
Out of stock

8

1

$2.07

In stock

9

SPACER This part replaces 61251-15000.

61251-15001

2
Out of stock

10

COVER, DUST SEAL

61262-15000

2
Out of stock

11

2

$1.77

In stock

12

THRUST WASHER | 10,3x24x2.5

09160-14009

2
Out of stock

13

SHOCK ABSORBER ASSY, REAR

62100-30010

2
Out of stock

14

4

$2.73

In stock

15

WASHER This part replaces 08322-11128.

08322-01127

2
Out of stock

17

LINK, REAR TORQEU

64311-16500

1
Out of stock

18

BOLT | TO 09111-08012 USED WITH 09085-10001

09119-08012

—
Out of stock

19

NUT

09140-08008

1

$1.55

In stock

20

1

$2.28

In stock

21

CLIP

09384-06001

1

$1.46

In stock

22

BOLT | TO 09111-10009 USE WITH 09385-10001USE WITH 09385-10001

09119-10001

—
Out of stock

23

1

$2.35

In stock

24

1

$1.93

In stock

25

1

$2.43

In stock

26

CLIP

09384-08001

1
Out of stock

27

END, CHAIN CASE | OPT

61331-30000

1
Out of stock

28

BOLT | OPT; Includes Item(s) 29 This part replaces 01112-06108.

01500-06107

2
Out of stock

29

2

$1.82

In stock

30

2

$2.28

In stock
