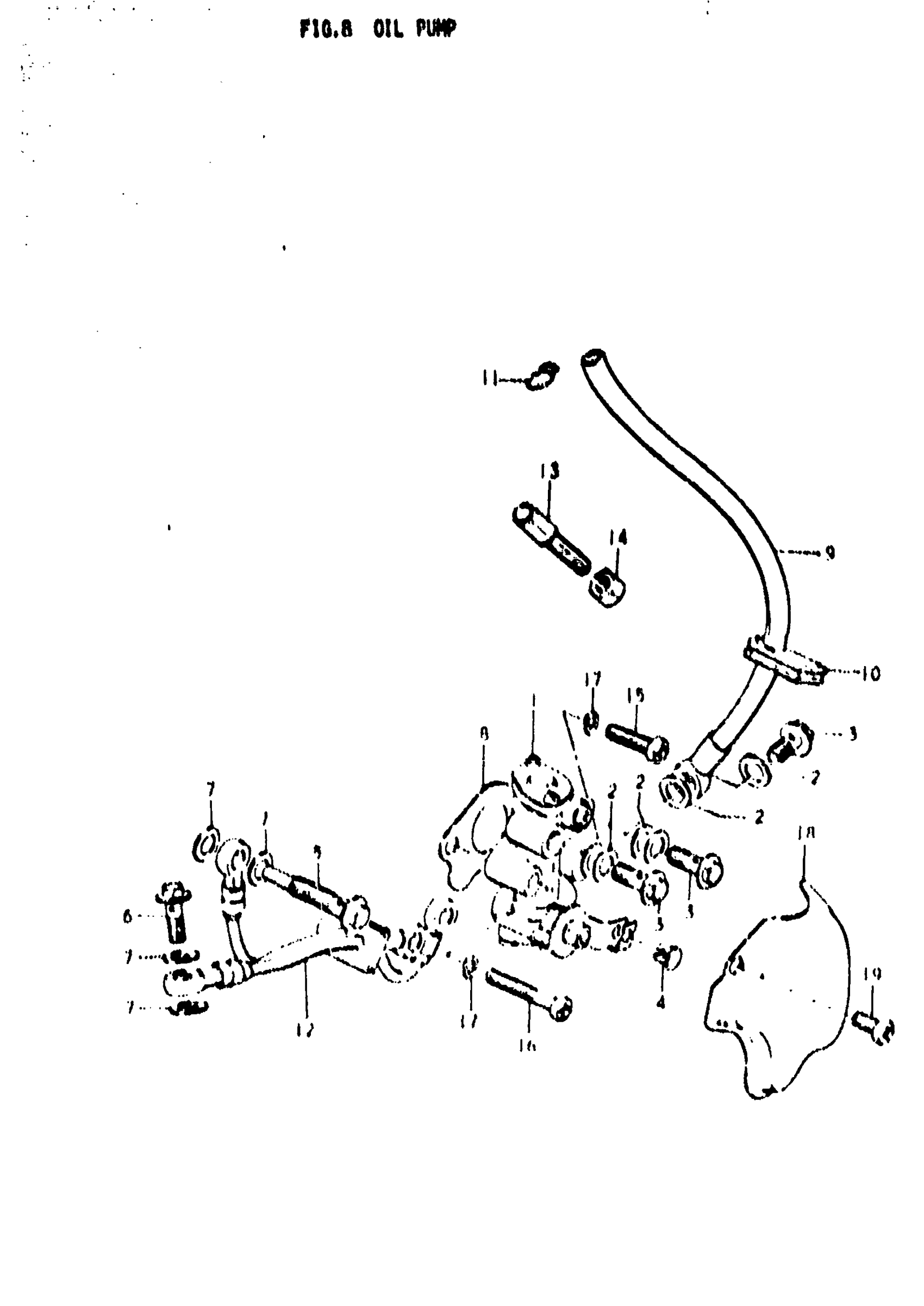

Suzuki TS400 (1972) OIL PUMP Diagram

#

Description
Price

1

OIL PUMP ASSY | FROM 16100-32810

16100-32011

Unavailable

2

GASKET This part replaces 09168-06002.

09168-06004

$1.46

3

UNION BOLT

09360-06003

$3.55

4

TERMINAL, CABLE This part replaces 16292-03110.

16292-03112

$4.97

5

UNION BOLT, CYLINDER

09360-06009

$6.47

6

UNION BOLT

09360-06003

$3.55

7

GASKET

09168-06004

$1.46

8

GASKET, OIL PUMP This part replaces 16731-03100.

16731-03101

$2.80

9

HOSE, OIL INLET

16810-32030

Unavailable

10

GROMMET This part replaces 09309-08002.

09309-08015

$2.58

11

CLIP

09401-08401

$1.52

12

HOSE, OIL OUTLET

16820-16530

Unavailable

13

BOLI, CABLE ADJUSTER

09119-08014

$3.37

14

NUT This part replaces 08312-11088.

08310-00087

$1.91

15

SCREW This part replaces 02112-05168.

02112-05167

$2.01

16

SCREW This part replaces 02112-05308.

02112-0530A

$1.93

17

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.89

18

COVER, OIL PUMP | TO 11585-52200 This part replaces 11385-16500.

11385-32200

Unavailable

19

SCREW This part replaces 02112-06108.

02112-06107

$1.49
