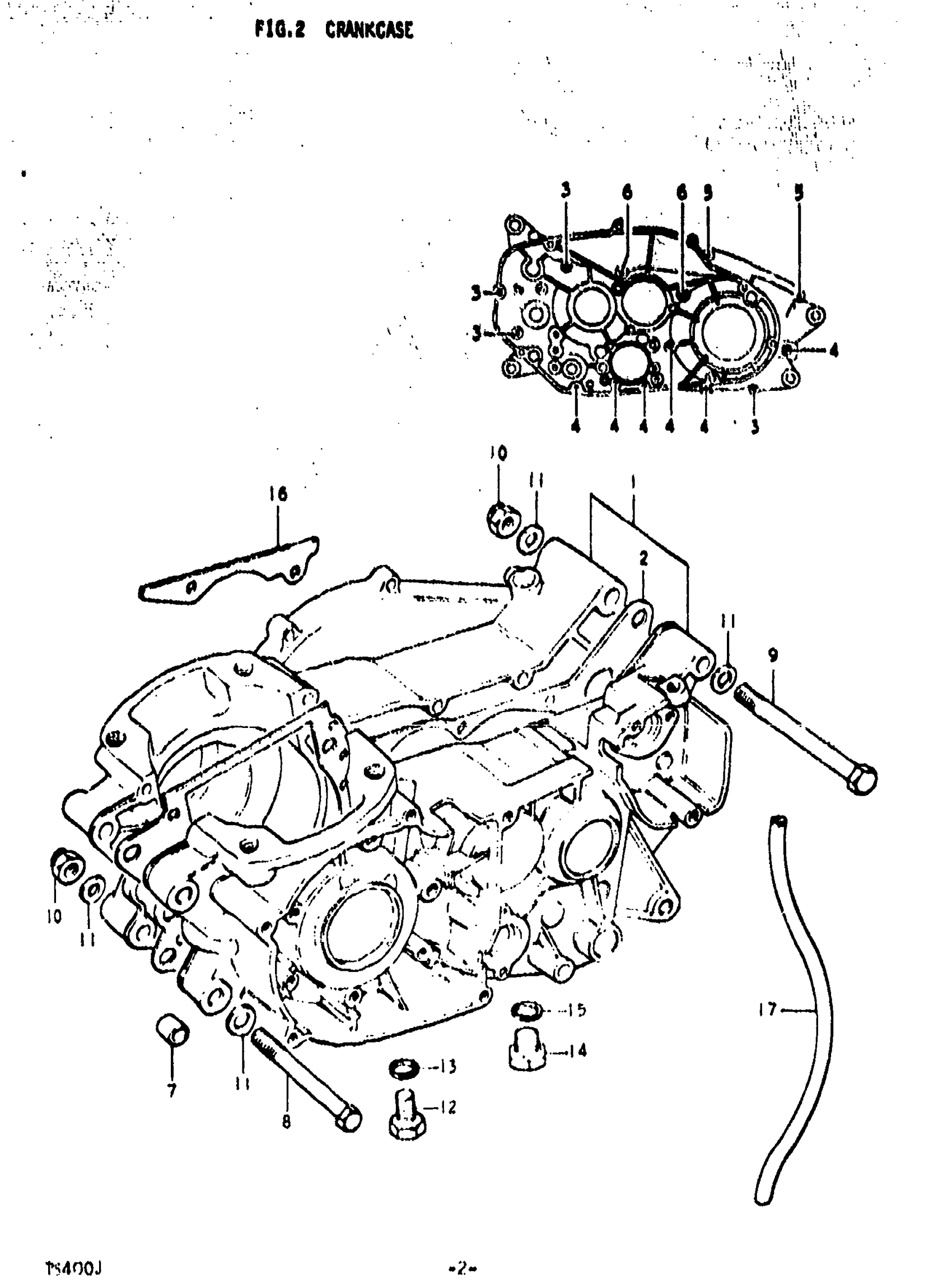

Suzuki TS400 (1972) CRANKCASE Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | FROM 11301-32802; Includes Item(s) 2 - 7 This part replaces 11300-32821.

11300-32822

Unavailable

2

GASKET,CRANKCAS This part replaces 11481-16500.

11481-16501

Unavailable

3

6X50 CROSS SCRE This part replaces 02112-06508.

02112-06507

$2.00

4

SCREW This part replaces 02112-06608.

02112-06607

$2.59

5

SCREW This part replaces 02112-06708.

02112-06707

$2.55

6

SCREW This part replaces 02112-06808.

02112-06807

$2.59

7

PIN This part replaces 09206-13001.

04211-13189

$2.19

8

BOLT This part replaces 01122-10908.

01550-10907

$6.57

9

NO DESCRIPTION AVAILABLE | 10x130 This part replaces 09100-10070.

09100-10280

Unavailable

10

NUT

09159-10011

$2.95

11

WASHER This part replaces 08322-11108.

08322-01107

$1.88

12

PLUG, TRAIN

09247-10001

$2.06

13

GASKET

09168-10002

$1.96

14

PLUG, DRAIN This part replaces 09247-14007.

09247-14025

$2.77

15

GASKET | 15.7x19.5x2

09168-14004

$1.69

16

PLATE, OIL RESERVOIR

24871-16500

Unavailable

17

HOSE | TO 09344-05019

09344-05015

Unavailable
