1981 Suzuki TS250 Rear Swinging ARM Diagram

← All diagrams

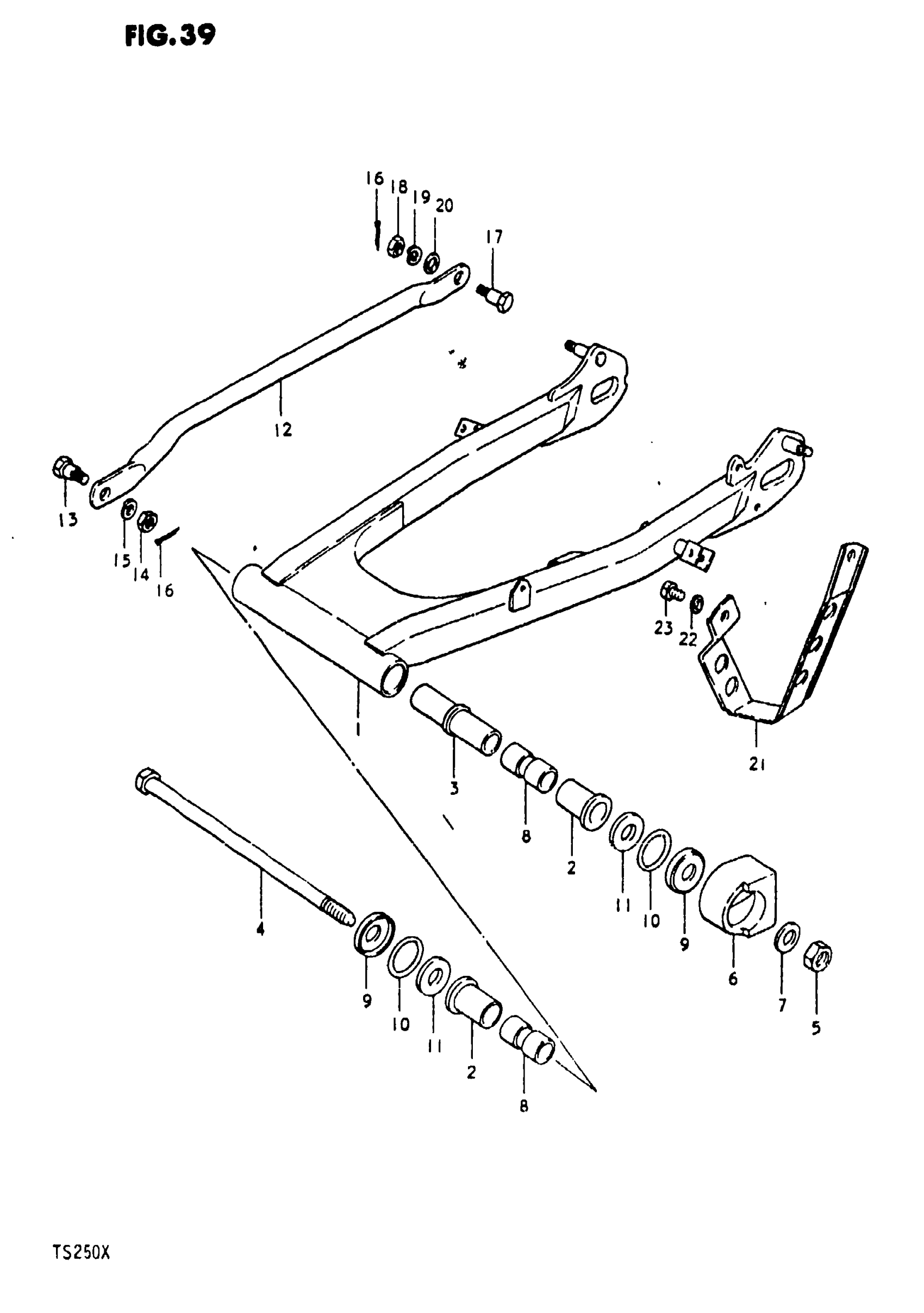

Find the part on the Rear Swinging ARM diagram for your 1981 Suzuki TS250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Suzuki TS250 Rear Swinging ARM Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE | MODEL T, GOLD This part replaces 61100-30880-08C.

61100-30881-08C

1
Out of stock

1

NO DESCRIPTION AVAILABLE | MODEL X, BLACK; Includes Item(s) 2 - 3 This part replaces 61100-30880-019.

61100-30881-019

1
Out of stock

2

BUSHING

09307-22003

2
Out of stock

3

SPACER

61280-32000

1
Out of stock

4

SHAFT, REAR SWINGING ARM

61211-15007

1
Out of stock

5

NUT This part replaces 08319-21148.

08319-2114A

1
Out of stock

6

BUFFER, CHAIN TOUCH DEFENSE

61273-30901

1
Out of stock

7

WASHER This part replaces 08322-11148.

08322-01147

1
Out of stock

8

SPACER

61251-15001

2
Out of stock

9

COVER

61262-15000

2
Out of stock

10

.O RING (D:3,ID:29.5)

09280-30001

2
Out of stock

11

THRUST WASHER | 14.5x29x2.3

09160-14009

2
Out of stock

12

NO DESCRIPTION AVAILABLE This part replaces 64311-32111.

64311-32101-08C

1
Out of stock

13

BOLT

09111-08012

1
Out of stock

14

NUT

09140-08008

1
Out of stock

15

1

$2.28

In stock

16

.COTTER PIN This part replaces 04111-20158.

04111-2015A

2
Out of stock

17

BOLT

09111-10009

1
Out of stock

18

NUT This part replaces 08310-22108.

08310-00107

1
Out of stock

19

LOCK WASHER This part replaces 08321-21108.

08321-01107

1
Out of stock

20

WASHER This part replaces 08322-11128.

08322-01127

1
Out of stock

21

GUIDE, CHAIN This part replaces 61341-30500.

61341-30501

1
Out of stock

22

2

$2.28

In stock

23

BOLT This part replaces 01107-08128.

01500-08127

2
Out of stock
