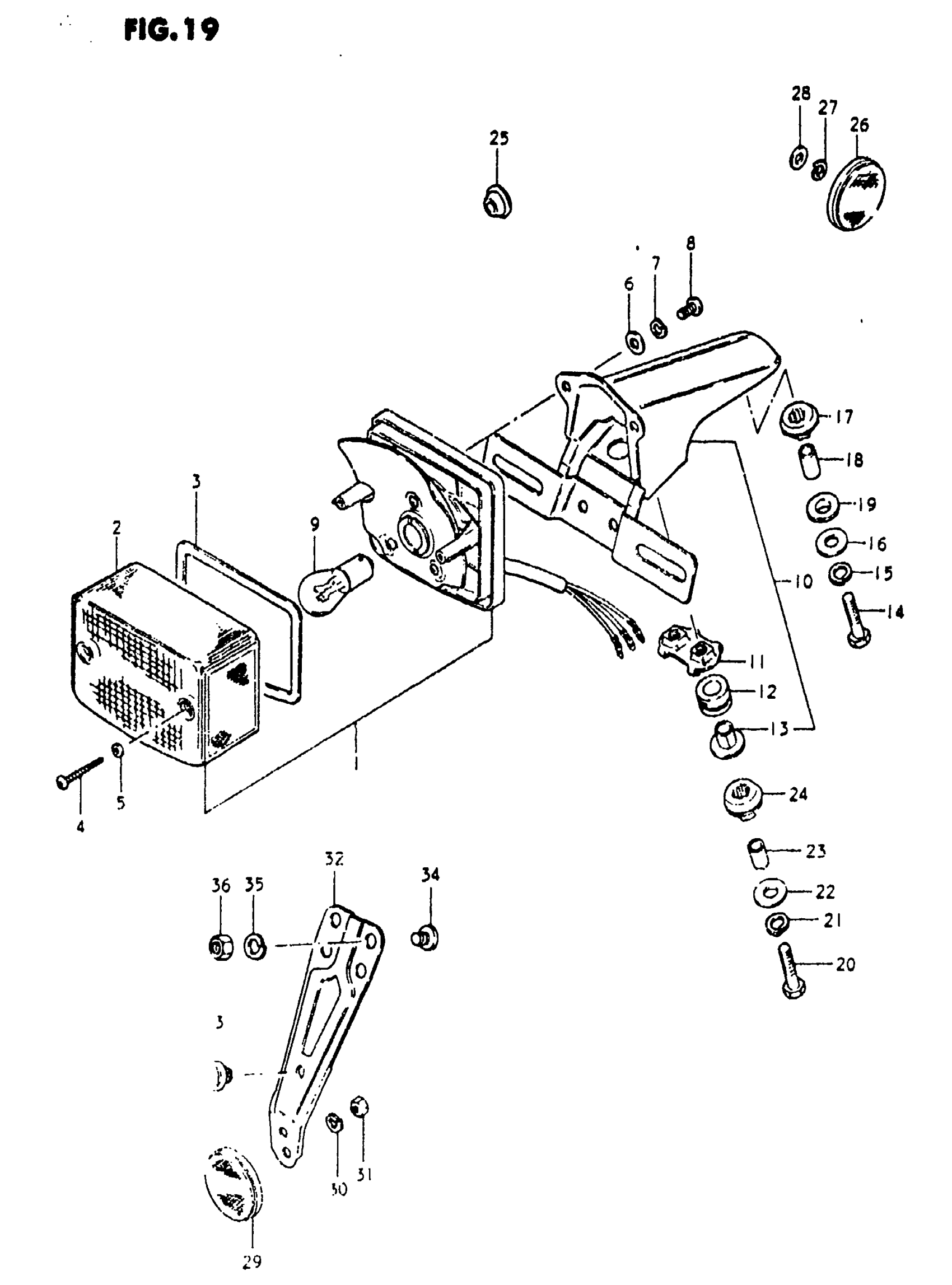

Suzuki TS250 (1981) REAR COMBINATION LAMP Diagram

#

Description
Price

1

LAMP UNIT,RR CO | Includes Item(s) 2 - 8 This part replaces 35720-48510-999.

35720-37430-999

Unavailable

2

LENS

35712-48510

$73.03

3

GASKET

35713-48510

$6.95

4

SCREW This part replaces 35625-49030.

03211-04306

$2.25

5

GASKET

35627-43010

$2.29

6

WASHER This part replaces 08322-21058.

08322-01057

$1.93

7

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.89

8

SCREW This part replaces 02112-05128.

02112-05127

$2.01

9

BULB (6V,32/3CP)

09471-06030

Unavailable

10

BRACKET ASSY | Includes Item(s) 11 - 13

35730-48530

Unavailable

11

PLATE

35716-30950

Unavailable

12

CUSHION

35765-30950

$11.88

13

SPACER

35766-30950

$2.68

14

BOLT, REAR This part replaces 01107-06308.

01500-06307

$3.17

15

LOCK WASHER This part replaces 08321-21068.

08321-01067

$1.89

16

WASHER (6.5X20X1.2) This part replaces 09160-06027.

09160-06077

$1.97

17

CUSHION

09320-09010

$2.80

18

SPACER This part replaces 09180-06072.

09180-06271

$2.17

19

CUSHION

09320-09003

$2.08

20

BOLT This part replaces 01107-06458.

01500-0645B

$2.68

21

LOCK WASHER This part replaces 08321-21068.

08321-01067

$1.89

22

WASHER (6.5X20X1.2) This part replaces 09160-06027.

09160-06077

$1.97

23

SPACER (6.5X10.5X15) This part replaces 09180-06061.

09180-06079

$2.62

24

CUSHION

09320-09010

$2.80

25

GROMMET

09308-07004

$1.68

26

REFLEX REFLECTOR, FRONT

35950-30910

$33.92

27

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.89

28

WASHER This part replaces 08322-21058.

08322-01057

$1.93

29

REFLEX REFLECTOR, REAR

35970-30910

$50.29

30

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.89

31

NUT This part replaces 08310-11058.

08310-00057

$1.89

32

NO DESCRIPTION AVAILABLE This part replaces 35974-48530.

35974-48532

Unavailable

33

CUSHION

09321-05010

Unavailable

34

SCREW

02142-06108

$2.67

35

LOCK WASHER This part replaces 08321-21068.

08321-01067

$1.89

36

.NUT This part replaces 08310-11068.

08310-00067

$1.91
