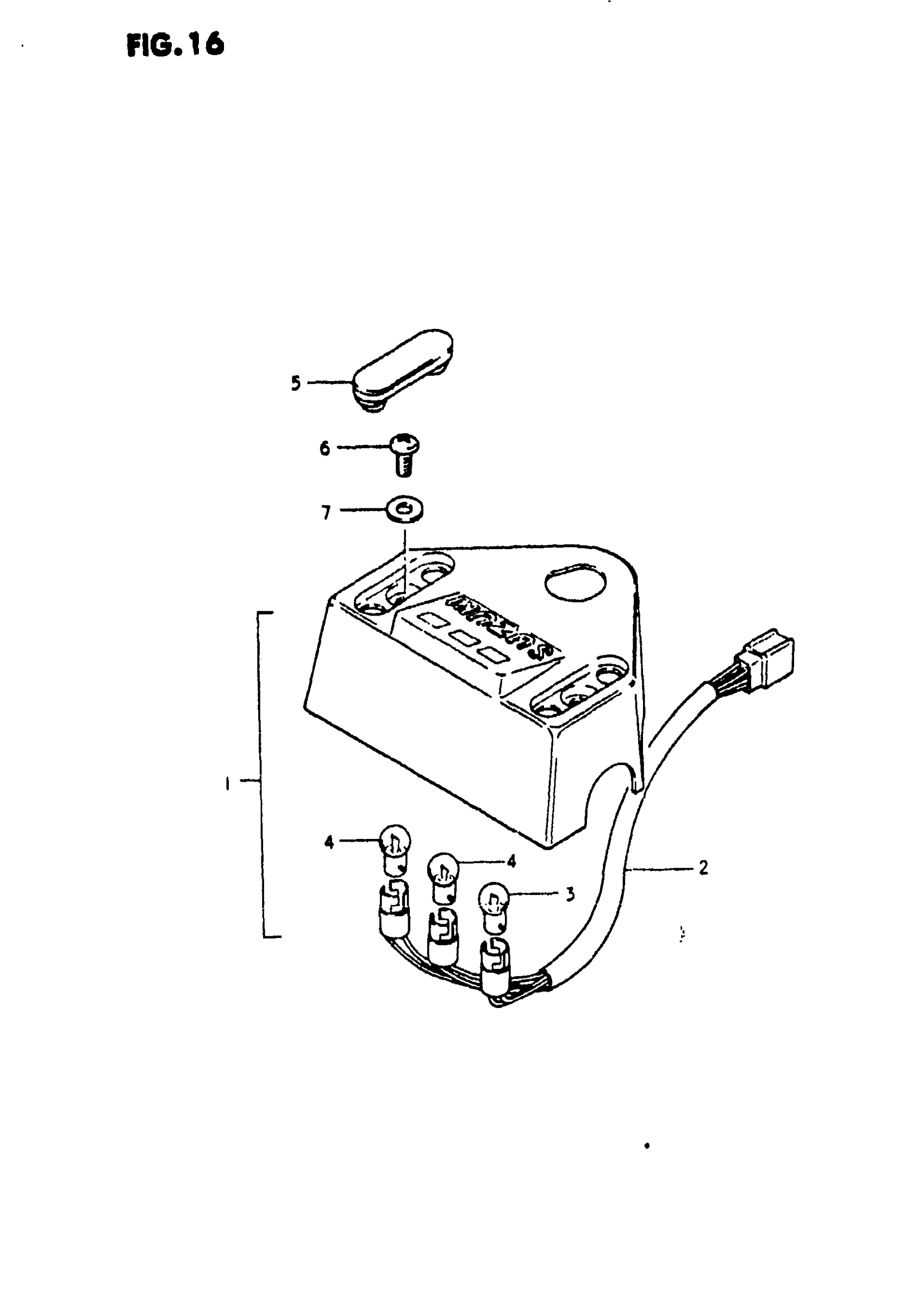

Suzuki TS250 (1981) PILOT LAMP Diagram

#

Description

Price

1

PILOT BOX ASSY | MODEL T This part replaces 36380-48500.

36380-48501

Unavailable

1

PILOT BOX ASSY | MODEL X; Includes Item(s) 2 - 3

36380-48501

Unavailable

2

SOCKET

36325-48500

Unavailable

3

BULB (6V,1.7W)

09471-06001

$2.27

4

BULB (6V,3W)

09471-06002

$2.10

0

CAP PILOT BOX This part replaces 36388-48500.

36388-48501

$6.22

6

SCREW This part replaces 02112-06128.

02112-06127

$1.89

7

WASHER This part replaces 08322-21068.

08322-01067

$1.93
