1979 Suzuki TS250 Rear Combination Lamp Diagram

← All diagrams

Find the part on the Rear Combination Lamp diagram for your 1979 Suzuki TS250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

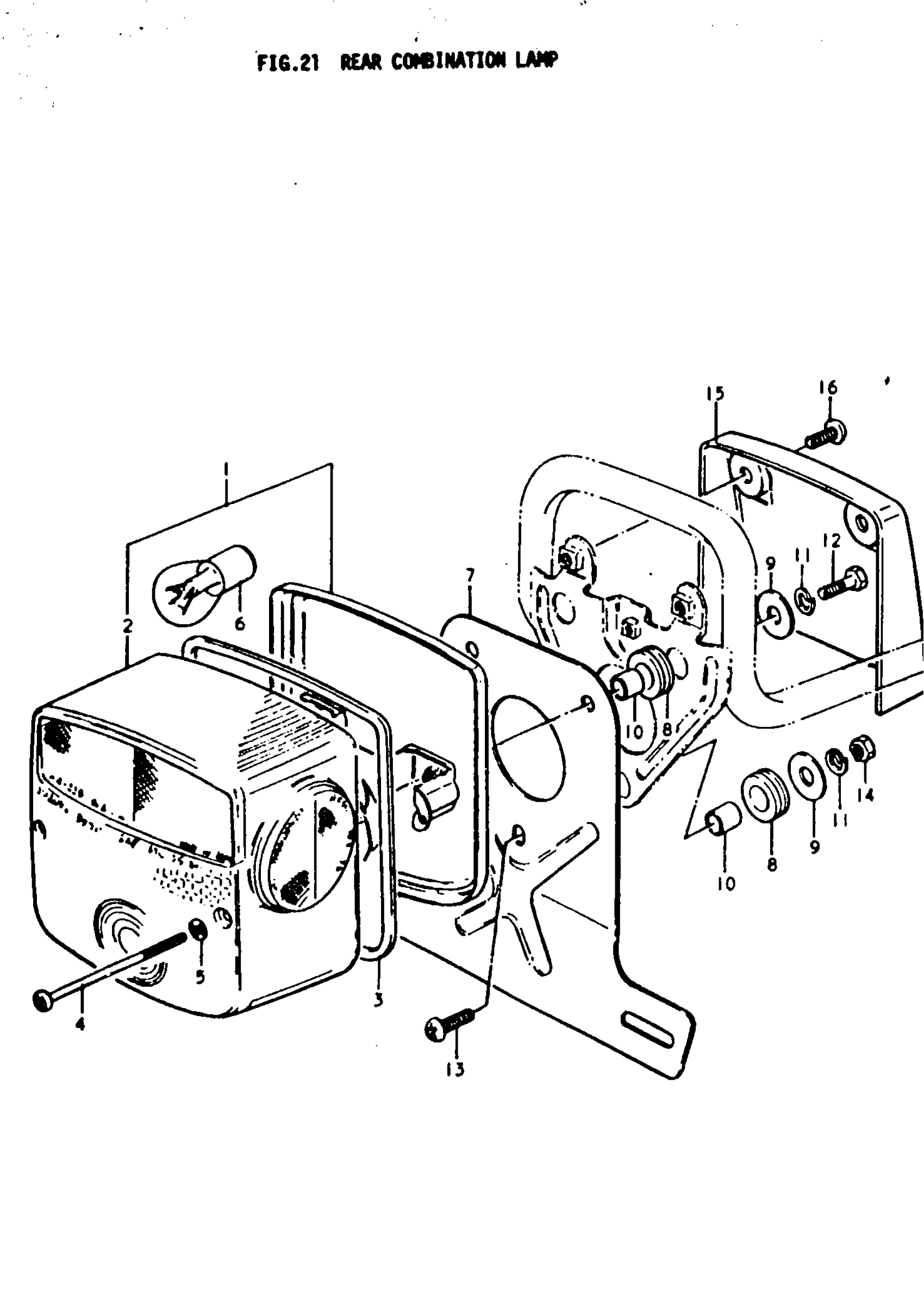

1979 Suzuki TS250 Rear Combination Lamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LAMP ASSY, REAR COMBINATION | B; CORD L:650 This part replaces 35710-30510.

35710-30512

1
Out of stock

1

LAMP ASSY, REAR COMBINATION | B,C; CORD L:750 This part replaces 35710-30511.

35710-30512

1
Out of stock

1

LAMP ASSY, REAR COMBINATION | N; Includes Item(s) 2 - 6

35710-30512

1
Out of stock

2

LENS | B,C This part replaces 35712-30510.

35712-30512

1
Out of stock

2

LENS | N This part replaces 35712-30511.

35712-30512

1
Out of stock

3

GASKET

35713-30510

1
Out of stock

4

SCREW 4X55 This part replaces 02111-04558.

02112-04558

2
Out of stock

5

GASKET

35627-43010

2

$2.65

In stock

6

BULB | 6V, 32/3CP

09471-06030

1
Out of stock

7

NO DESCRIPTION AVAILABLE | B This part replaces 35927-30500.

35927-30504

1
Out of stock

7

NO DESCRIPTION AVAILABLE | C,N This part replaces 35927-30503.

35927-30504

1
Out of stock

8

CUSHION

09320-09002

3
Out of stock

9

WASHER, FRONT | 6.5x24x1.6 This part replaces 09160-06004.

09160-06134

3
Out of stock

10

SPACER This part replaces 35766-15010.

35766-37110

3
Out of stock

11

3

$2.28

In stock

12

BOLT This part replaces 01107-06208.

01500-06207

2
Out of stock

13

SCREW

02142-06207

1
Out of stock

14

.NUT This part replaces 08310-11068.

08310-00067

1
Out of stock

15

COVER

35791-30501

1
Out of stock

16

SCREW | B,C This part replaces 09125-06001.

02142-0612A

2
Out of stock

16

SCREW | N This part replaces 02142-06125.

02142-0612A

2
Out of stock
