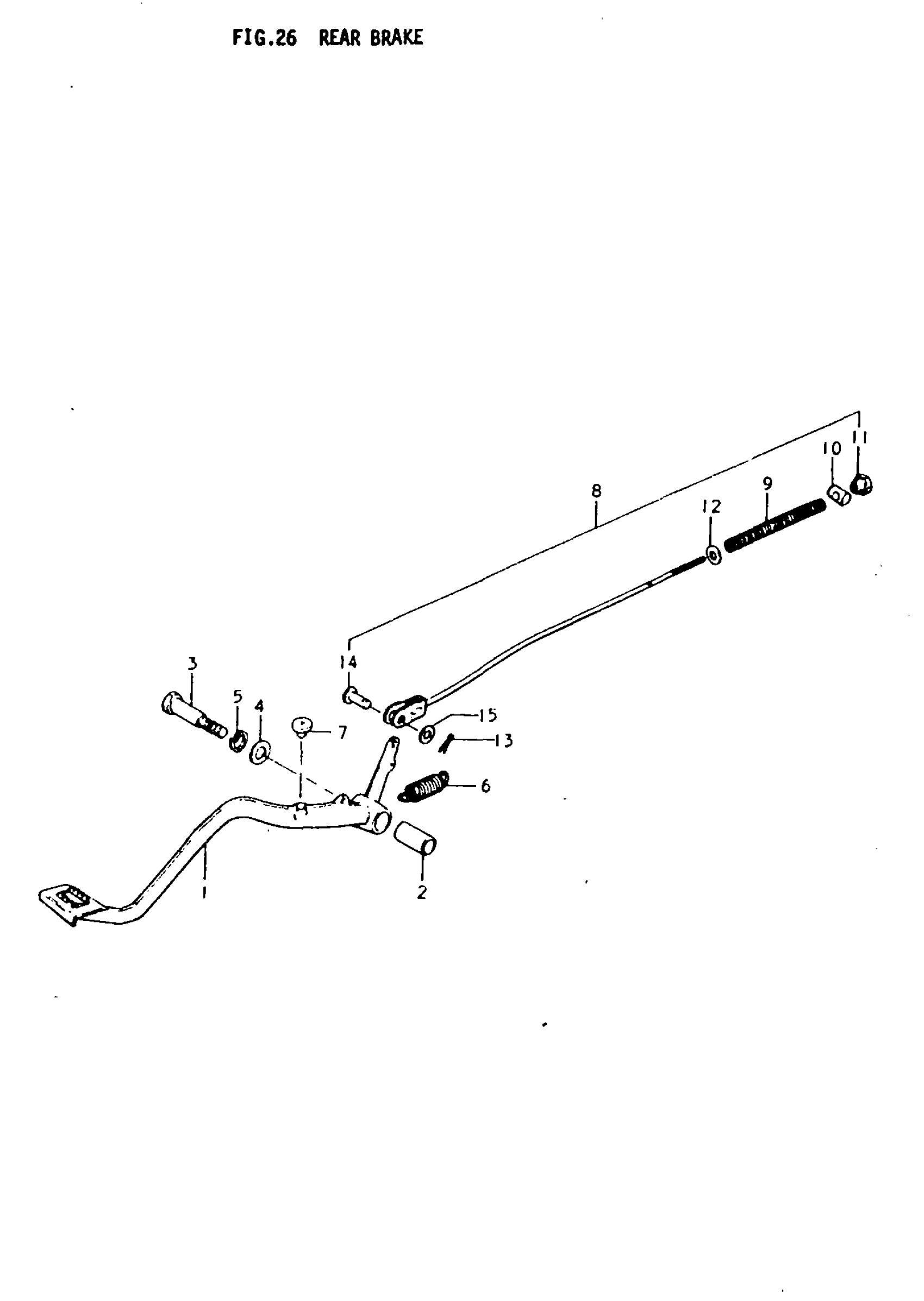

Find the part on the Rear Brake diagram for your 1979 Suzuki TS250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1979 Suzuki TS250 Rear Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PEDAL, BRAKE

43110-30500

1
Out of stock

2

SPACER | 10.4x16x30

09180-10001

1
Out of stock

3

BOLT | 10x50

09100-10014

1
Out of stock

4

WASHER This part replaces 08322-21108.

08322-01107

1
Out of stock

5

LOCK WASHER This part replaces 08321-21108.

08321-01107

1
Out of stock

6

SPRING

09443-14013

1
Out of stock

7

STOPPER, BRAKE PEDAL

43155-30500

1
Out of stock

8

LOD, REAR BRAKE | Includes Item(s) 9 - 15

43300-30500

1
Out of stock

9

SPRING

09440-09004

1
Out of stock

10

.PIN (13X18) This part replaces 09209-13003.

09209-13018

1
Out of stock

11

.NUT This part replaces 09150-06001.

09150-06010

1
Out of stock

12

WASHER This part replaces 08322-21058.

08322-01057

1
Out of stock

13

COTTER PIN This part replaces 04111-20208.

04111-2020A

1
Out of stock

14

PIN

09200-06013

1
Out of stock

15

WASHER This part replaces 08322-21068.

08322-01067

1
Out of stock
