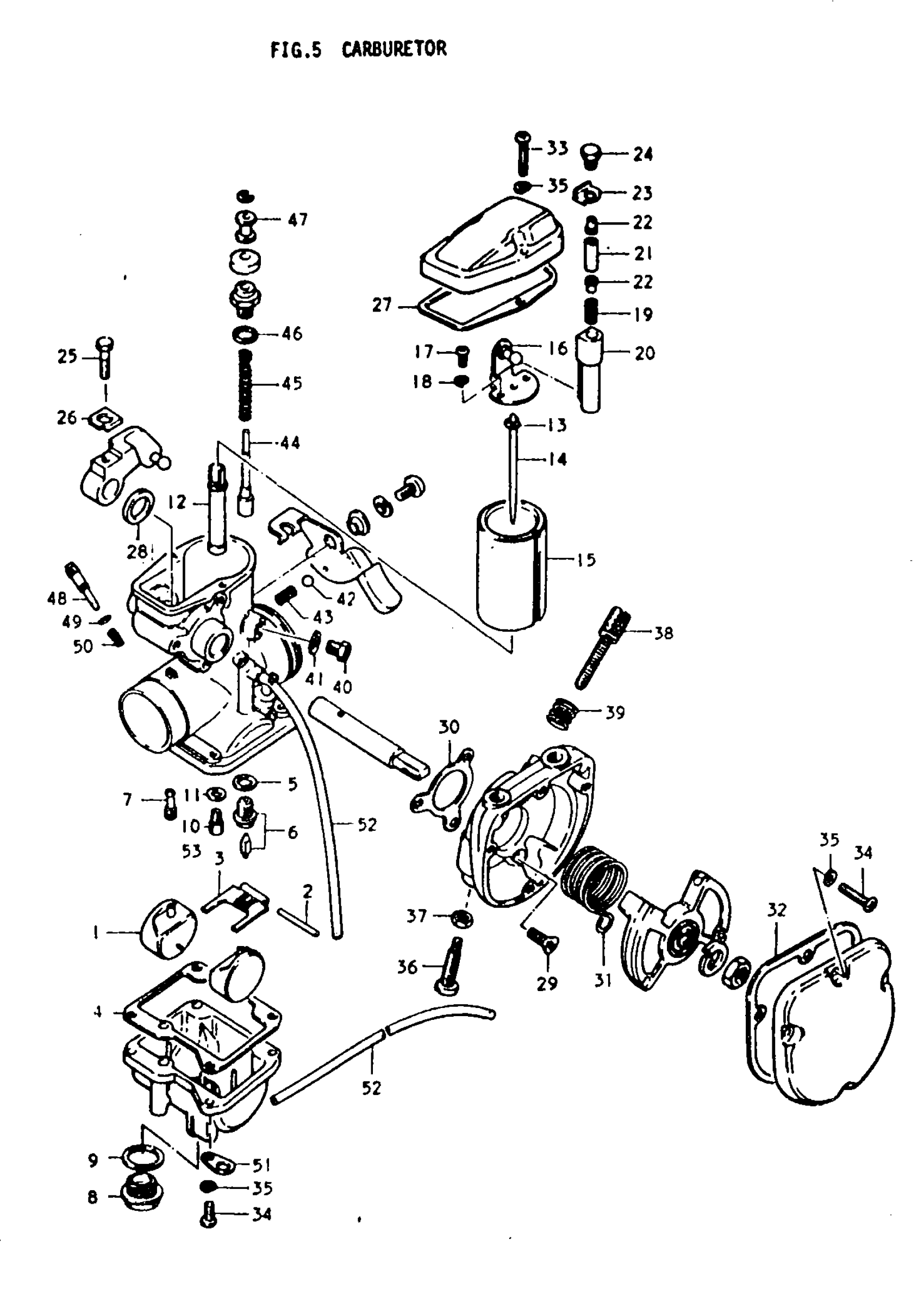

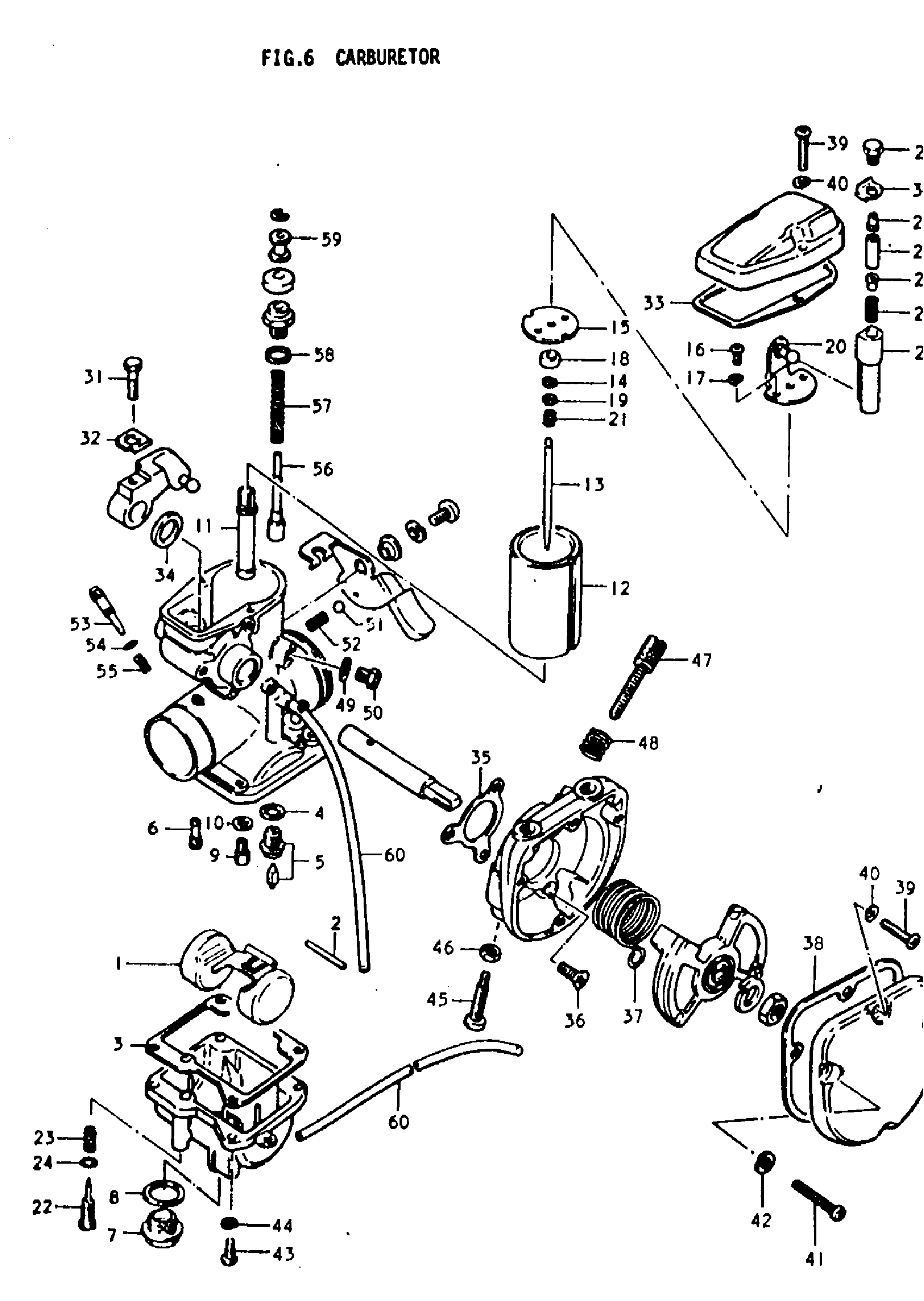

Suzuki TS250 (1979) CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSY | N.J:0-9, P.J.:#30 This part replaces 13200-30510.

13200-30511

Unavailable

1

CARBURETOR ASSY | N.J:P-1, P.J.:#27.5; Includes Item(s) 1 - 52

13200-30511

Unavailable

1

FLOAT

13252-30650

Unavailable

2

.PIN, FLOAT

13254-01010

$3.41

3

ARM, FLOAT

13253-30650

Unavailable

4

GASKET

13251-30650

Unavailable

5

GASKET, VALVE

13392-58600

$1.85

6

VALVE ASSY, NEEDLE

13370-30651

Unavailable

7

JET, PILOT (30) | #30 This part replaces 09492-30003.

09492-30006

$8.74

7

JET, PILOT (27.5) | #27.5 This part replaces 09492-27001.

09492-27003

$12.70

8

PLUG, DRAIN

13247-30650

Unavailable

9

GASKET

13249-28310

Unavailable

10

JET, MAIN | #140 This part replaces 09491-28002.

09491-28009

Unavailable

11

WASHER

13382-03110

$2.80

12

JET, NEEDLE | O-9

09494-00180

Unavailable

12

JET, NEEDLE | P-1

09494-00184

Unavailable

13

CLIP

13394-10010

$6.15

14

NEEDLE, JET | 5CN3-3

13383-18620

Unavailable

15

VALVE, PISTON | CA:2.5

13551-30650

Unavailable

16

BRACKET

13398-30650

Unavailable

17

SCREW This part replaces 02111-03067.

02112-0306B

$1.61

18

WASHER,LOCK This part replaces 08321-21038.

09162-03001

$1.18

19

SPRING

13543-43010

Unavailable

20

CONNECTOR

13545-43010

Unavailable

21

PIN

13546-30650

Unavailable

22

PIN

13544-43010

Unavailable

23

PLATE

13547-43010

Unavailable

24

SCREW

13548-30650

Unavailable

25

BOLT

13613-30650

Unavailable

26

PLATE

13576-30650

Unavailable

27

GASKET

13266-30650

Unavailable

28

RING

13574-30650

Unavailable

29

SCREW

02121-05258

Unavailable

30

GASKET

13632-30650

Unavailable

31

SPRING

13573-30650

Unavailable

32

GASKET

13631-30650

Unavailable

33

SCREW This part replaces 02112-04258.

02112-0425B

$2.37

34

SCREW This part replaces 02112-04168.

02112-0416A

$1.24

35

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.86

36

ADJUSTER, THROTTLE

13605-30650

Unavailable

37

.NUT This part replaces 08310-22068.

08310-00067

$1.83

38

ADJUSTE, THROTTLE

13267-30650

Unavailable

39

SPRING

13268-33110

Unavailable

40

PLUG

13664-18654

$10.15

41

WASHER

13663-31010

$2.80

42

BALL

13435-33110

$2.21

43

SPRING

13434-30650

$3.38

44

VALVE, STARTER

13411-33110

Unavailable

45

SPRING

13417-18630

$6.77

46

O RING This part replaces 13295-15010.

09280-08014

$1.92

47

BUSH

13424-33110

$3.97

48

SCREW, AIR PILOT

13269-15011

Unavailable

49

O RING

13295-33010

$4.09

50

SPRING

13268-35010

$4.09

51

PLATE

13693-30650

Unavailable

52

HOSE This part replaces 13684-30650.

13684-40A00

$12.72

53

JET, MAIN | OPT; #130

09491-26003

$10.70

53

JET,MAIN #135 | OPT; #135 This part replaces 09491-27005.

09491-27015

Unavailable

53

JET, MAIN | OPT; #145

09491-29002

$11.75

53

JET,MAIN,150 | OPT; #150 This part replaces 09491-30003.

09491-30017

Unavailable

53

JET, MAIN | OPT; #160

09491-32002

Unavailable

53

JET, MAIN | OPT; #170

09491-34002

Unavailable

53

JET, MAIN (180) | OPT; #180 This part replaces 09491-36003.

09491-36006

Unavailable

53

JET, MAIN (190) | OPT; #190 This part replaces 09491-38003.

09491-38009

Unavailable
