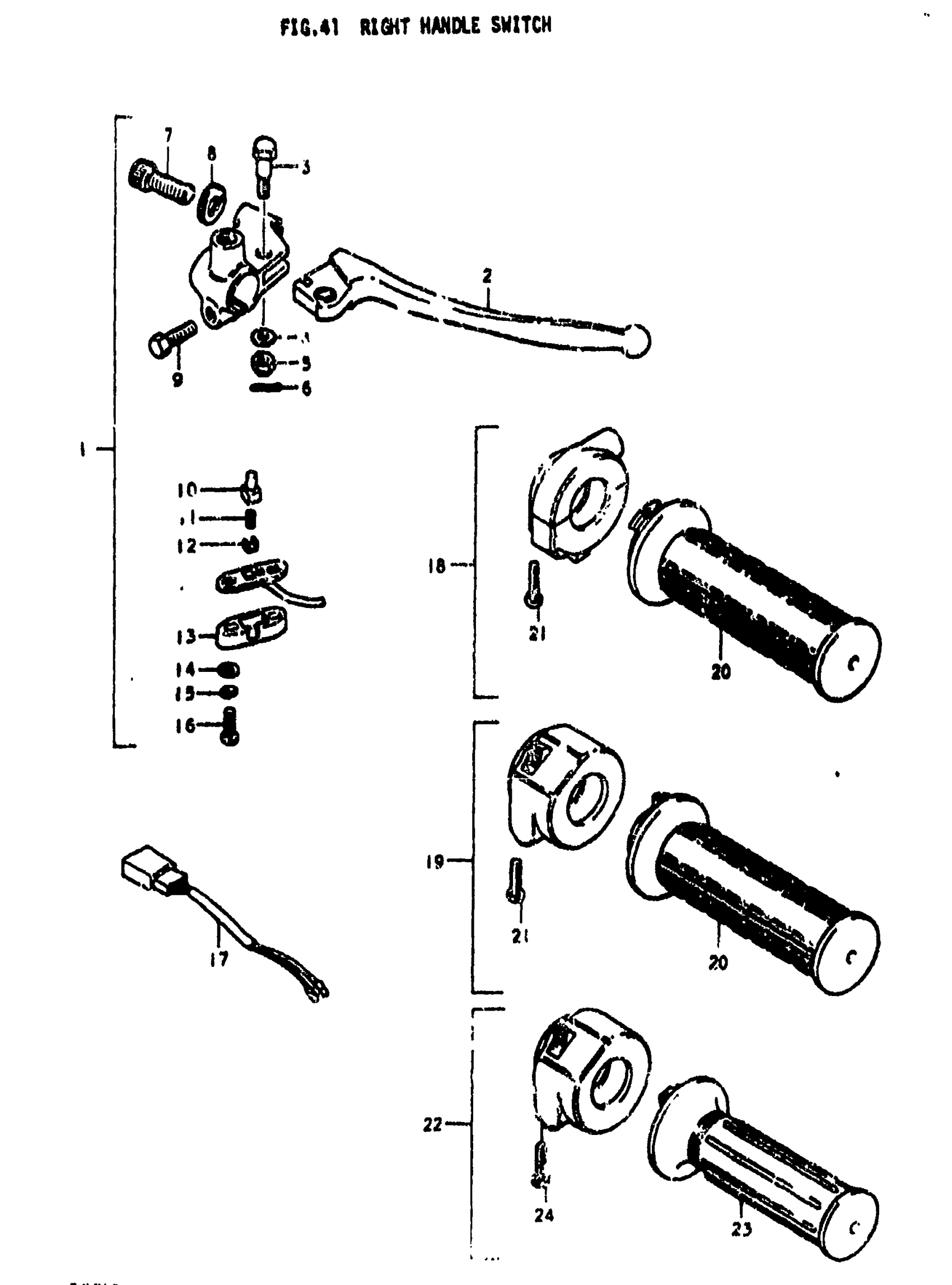

Suzuki TS250 (1976) RIGHT HANDLE SWITCH Diagram

#

Description
Price

1

LEVER ASSY, BRAKE | K; TO 57300-30700 This part replaces 57300-30011.

57300-30501

Unavailable

1

LEVER ASSY, BRAKE | L; TO 57300-30701 USED WITH 56741-31700 This part replaces 57300-30700.

57300-30501

Unavailable

1

LEVER ASSY, BRAKE | M,A; FROM 57300-30013; Includes Item(s) 2 - 16 This part replaces 57300-30014.

57300-30501

Unavailable

2

LEVER, BRAKE | FROM 57420-33010

57420-18602

Unavailable

3

BOLT This part replaces 57431-11010.

57431-11013

$6.21

4

LOCK WASHER This part replaces 08321-21066.

08321-0106A

$1.89

5

NUT

57433-11010

Unavailable

6

PIN This part replaces 04111-16158.

04111-1620A

$0.96

7

ADJUSTER, CABLE

57441-11010

$5.38

8

NUT

57442-11010

$2.80

9

BOLT This part replaces 01112-06208.

01500-06207

$2.48

10

HOLDER This part replaces 57461-18600.

57465-18601

$4.15

11

HOLDER This part replaces 57462-18600.

57465-18601

$4.15

12

HOLDER This part replaces 57463-18600.

57465-18601

$4.15

13

COVER

57481-33010

$5.74

14

WASHER This part replaces 08322-21038.

08322-01037

$2.01

15

WASHER,LOCK This part replaces 08321-21038.

09162-03001

$1.22

16

SCREW This part replaces 09125-03105.

09125-03105-XC0

$2.08

17

LEAD WIRE | K,L

57323-31700

Unavailable

18

GRIP ASSY, THROTTLE | K,L

57100-28010

Unavailable

19

NO DESCRIPTION AVAILABLE | M; Includes Item(s) 20 - 21 This part replaces 57100-32600.

57100-39650

Unavailable

20

GRIP, THROTTLE | K,L,M

57110-28010

$46.15

21

SCREW | K,L,M This part replaces 02111-05207.

02112-05207

$2.03

22

GRIP ASSY, THROTTLE | A; Includes Item(s) 23 - 24

57100-32610

Unavailable

23

GRIP, THROTTLE | A

57110-32610

Unavailable

24

SCREW | A This part replaces 02111-05207.

02112-05207

$2.03
