1976 Suzuki TS250 Clutch Diagram

← All diagrams

Find the part on the Clutch diagram for your 1976 Suzuki TS250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

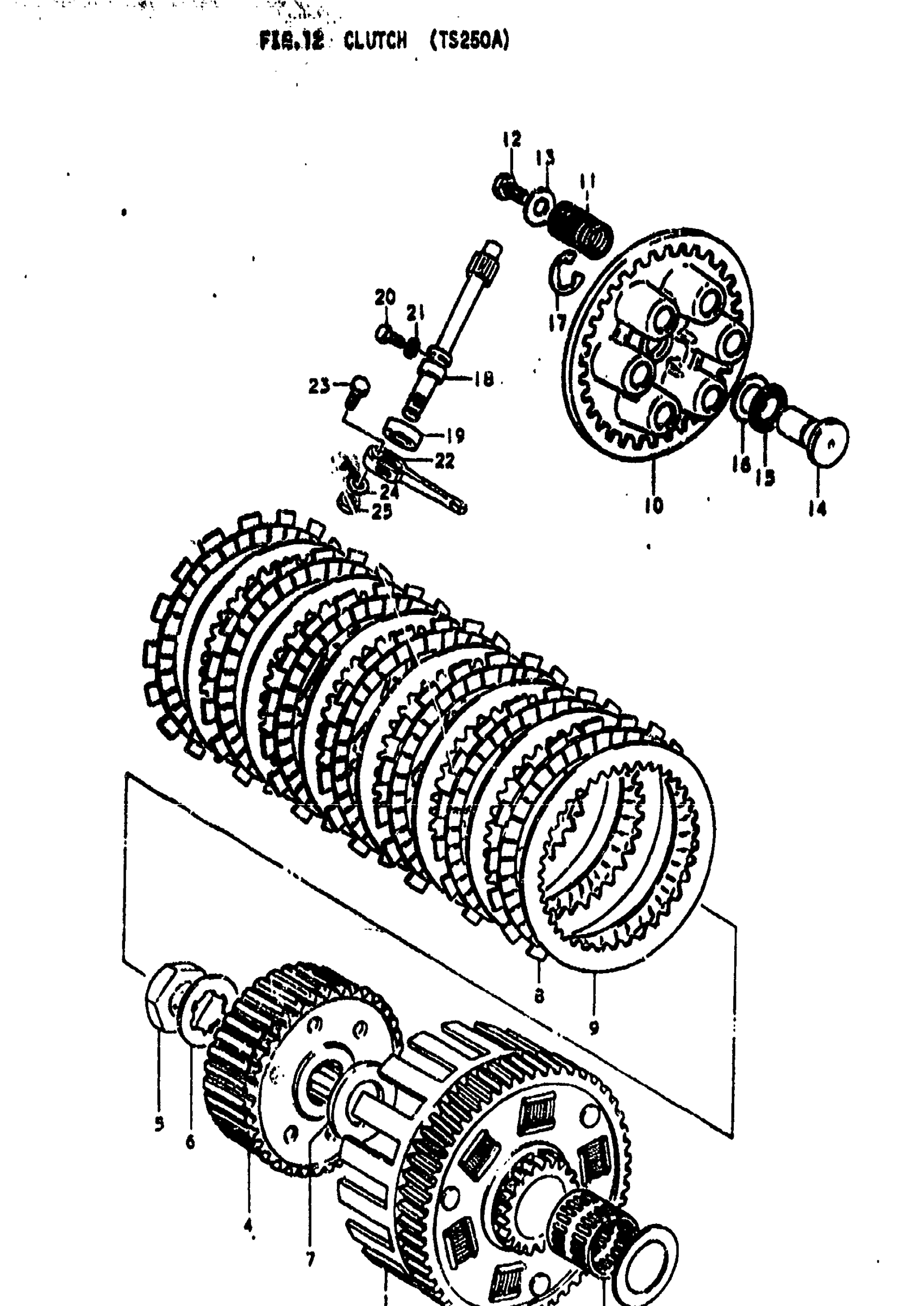

1976 Suzuki TS250 Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GEAR ASSY, PRIMARY DRIVEN | NT:67/18

21200-30003

1
Out of stock

2

BEARING

09263-25014

1
Out of stock

3

THRUST WASHER | 25x41x3

09160-25009

1
Out of stock

4

HUB, SLEEVE This part replaces 21411-30000.

21411-30001

1
Out of stock

5

NUT This part replaces 09140-20002.

09140-20001

1
Out of stock

6

LOCK WASHER | 16.5x38x0.8 This part replaces 09167-20006.

09167-20009

1
Out of stock

7

THRUST WASHER | 20x44x3

09160-20015

1
Out of stock

8

PLATE, CLUTCH DRIVE NO.2 This part replaces 21441-16500.

21442-37401

6
Out of stock

9

PLATE, CLUTCH DRIVEN

21451-31000

6
Out of stock

10

PLATE, PRESSURE This part replaces 21462-16500.

21462-14301

1
Out of stock

11

SPRING

09440-19004

6
Out of stock

12

BOLT, CANISTER This part replaces 01112-06168.

01500-06167

6
Out of stock

13

WASHER (6.5X20X1.6) | 6.5x20x1.6 This part replaces 09160-06020.

09160-06066

6
Out of stock

14

NO DESCRIPTION AVAILABLE | TO 23165-16501 This part replaces 23165-16500.

23165-16502

1
Out of stock

15

BEARING

09263-15003

1
Out of stock

16

WASHER, CLUTCH PUSH | 15x28x1 This part replaces 09160-15015.

09160-15045

1
Out of stock

17

E-RING This part replaces 08332-11126.

08332-1112A

1
Out of stock

18

PINION, RELEASE This part replaces 23261-16500.

23261-16501

1
Out of stock

19

OIL SEAL (12X22X9) This part replaces 09285-12002.

09285-12006

1
Out of stock

20

BOLT

09135-06009

1
Out of stock

21

WASHER This part replaces 08322-21068.

08322-01067

1
Out of stock

22

ARM, RELEASE This part replaces 23271-16500.

23271-45400

1
Out of stock

23

BOLT This part replaces 01112-06258.

01500-06257

1
Out of stock

24

WASHER This part replaces 08322-21068.

08322-01067

1
Out of stock

25

.NUT This part replaces 08311-11068.

08310-00067

1
Out of stock
