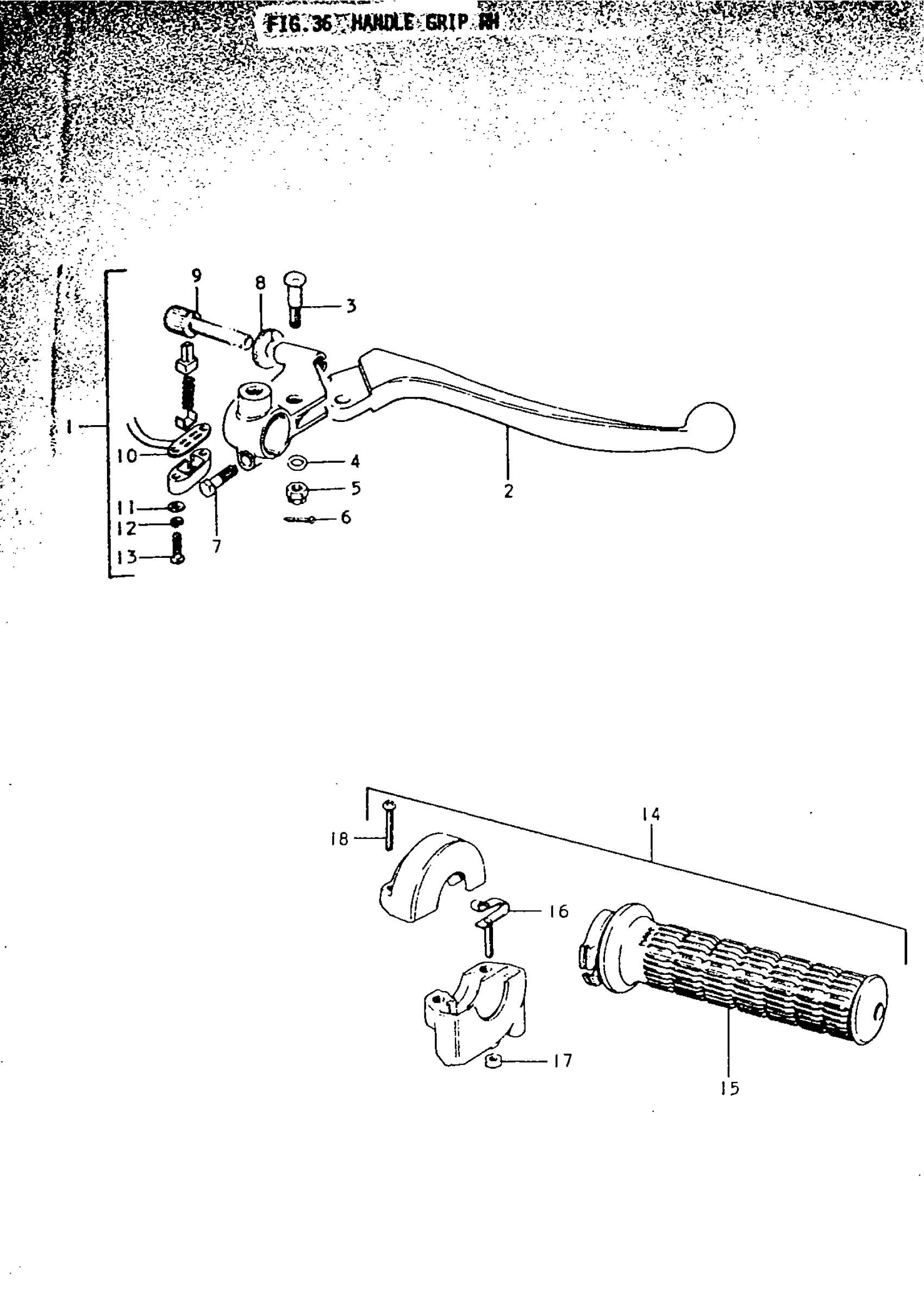

Suzuki TS250 (1970) HANDLE GRIP RH Diagram

#

Description
Price

1

LEVER ASSY, BRAKE | TO 37500-10610; Includes Item(s) 2 - 13

57300-16600

Unavailable

2

LEVER, BRAKE

57420-18600

Unavailable

3

BOLT This part replaces 57431-11010.

57431-11013

$5.95

4

LOCK WASHER This part replaces 08321-21068.

08321-01067

$1.83

5

NUT, PIVOT

57433-11010

$5.32

6

PIN This part replaces 04111-16158.

04111-1620A

$0.96

7

BOLT | TO 01112-06208 This part replaces 57451-11010.

01500-06207

$1.99

8

NUT, CABLE ADJUSTER

57442-11010

$2.80

9

ADJUSTER, CABLE

57441-11010

$5.14

10

WIRING HARNESS

57470-16600

Unavailable

11

WASHER This part replaces 08322-21038.

08322-01037

$1.95

12

WASHER,LOCK This part replaces 08321-21038.

09162-03001

$1.18

13

SCREW This part replaces 09125-03105.

09125-03105-XC0

$2.08

14

GRIP ASSY, THROTTLE | TO 57100-15111; Includes Item(s) 15 - 18

57100-15110

Unavailable

15

GRIP, THROTTLE This part replaces 57110-15110.

57110-31012

Unavailable

16

ADJUSTER, THROTTLE

57170-11011

Unavailable

17

NUT This part replaces 08311-11058.

08310-00057

$1.83

18

SCREW

02111-05208

Unavailable
