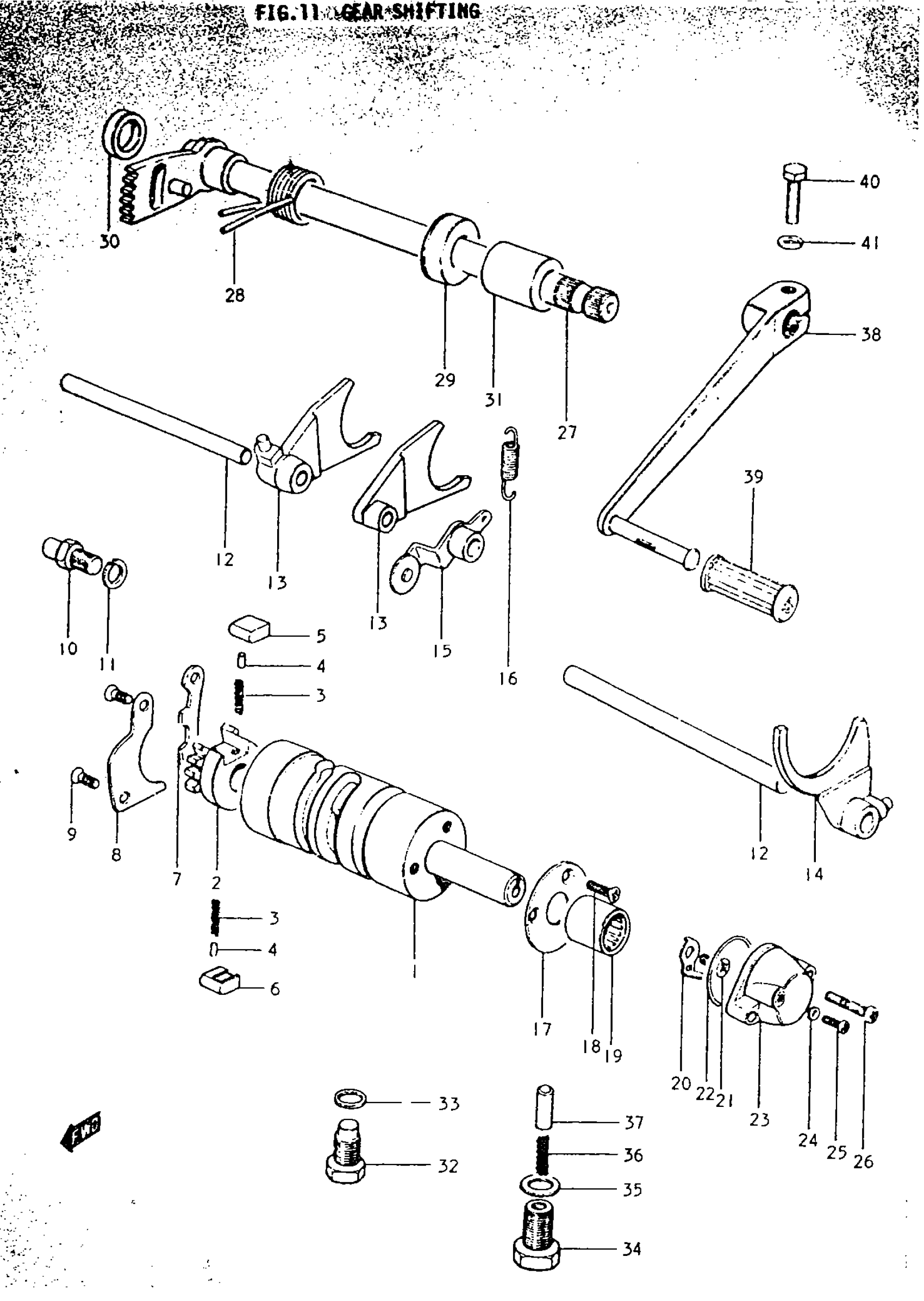

Suzuki TS250 (1970) GEAR SHIFTING Diagram

#

Description
Price

1

CAM, GEAR SHIFTING

25300-16400

Unavailable

2

GEAR, GEAR SHIFT CAM DRIVEN This part replaces 25322-11000.

25322-31310

$30.40

3

SPRING

09440-04003

$1.48

4

PIN | OD:5, W:8

09261-05003

$1.69

5

PAWL, GEAR SHIFT NO.2 This part replaces 25324-11000.

25324-34201

$6.80

6

PAWL, GEAR SHIFT NO.1 This part replaces 25323-11000.

25323-34201

$6.61

7

GUIDE, GEAR SHIFTING CAM

25341-11000

Unavailable

8

LIFTER, PAWL

25331-11001

$7.22

9

SCREW

02121-06128

Unavailable

10

STOPPER, ARM This part replaces 25671-01000.

25671-01011

$4.09

11

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$1.83

12

SHAFT, GEAR SHI This part replaces 25411-16400.

25411-48001

Unavailable

13

FORK, GEAR SHIFTING NO.1

25221-16400

Unavailable

14

FORK, GEAR SHIFTING NO.2

25211-16400

Unavailable

15

STOPPER, GEAR SHIFTING CAM

25350-16400

Unavailable

16

SPRING

09443-11002

$2.80

17

PLATE, CAM STOPPER This part replaces 25381-20000.

25381-20001

Unavailable

18

SCREW

02121-04128

Unavailable

19

BEARING | 16x22x16

09263-16006

Unavailable

20

CONTACT, SWITCH This part replaces 37711-05100.

37711-05101

$3.50

21

SCREW

02121-06128

Unavailable

22

O RING | ID:27.7, D:1.9

09280-28002

$2.27

23

BODY, GEAR SHIFTING SWITCH

37721-15002

Unavailable

24

WASHER This part replaces 08322-21038.

08322-01037

$1.95

25

SCREW This part replaces 02111-03048.

02112-03047

$2.35

26

SCREW

02111-05208

Unavailable

27

SHAFT, GEAR SHIFTING

25510-16401

Unavailable

28

SPRING

09444-26001

$6.38

29

OIL SEAL (12X22X9) | 12X22X9 This part replaces 09285-12002.

09285-12006

$5.70

30

SPACER | 12.2x21x5

09180-12021

Unavailable

31

CUSHION | 13x18x20

09320-13001

Unavailable

32

BOLT

09135-14002

Unavailable

33

GASKET

09168-14002

$2.83

34

HOLDER, STOPPER This part replaces 25352-11000.

25352-11010

$6.80

35

GASKET

09168-14002

$2.83

36

SPRING This part replaces 09440-05010.

09440-05018

$2.00

37

STOPPER, SELECT CAM This part replaces 25351-18000.

25351-39300

$11.55

38

LEVER ASSY, GEAR SHIFTING | Includes Item(s) 39 This part replaces 25600-16401.

25600-29101

Unavailable

39

.RUBBER,GEAR SHIFT PEDAL This part replaces 25652-03201.

25652-16510

$3.42

40

BOLT, REAR | I This part replaces 01121-08208.

01500-08207

$2.55

40

BOLT This part replaces 01112-06208.

01500-06207

$1.99

41

.LOCK WASHER | I This part replaces 08321-21088.

08321-01087

$1.83

41

LOCK WASHER | 1 This part replaces 08321-21068.

08321-01067

$1.83
