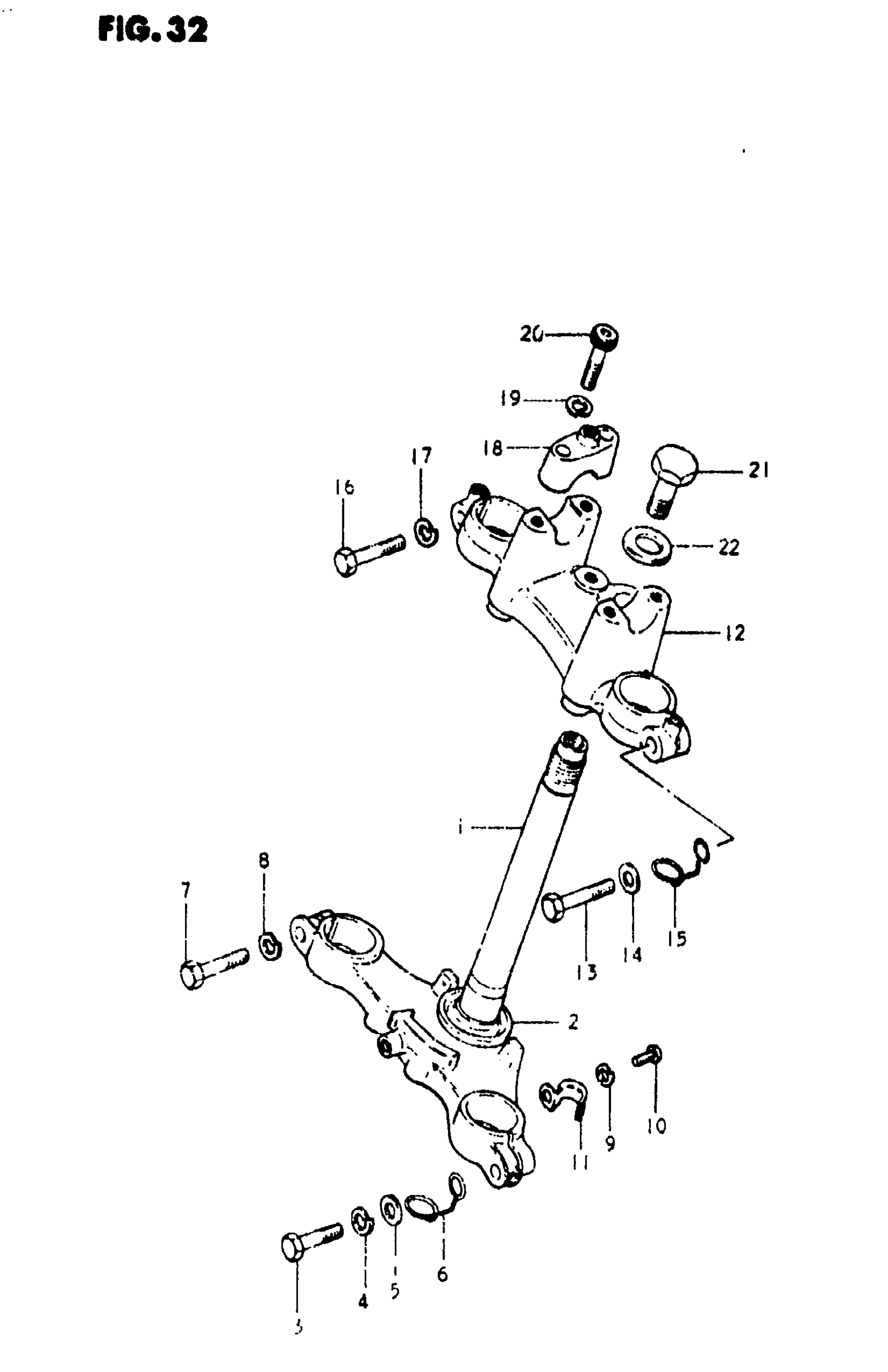

Suzuki TS185 (1981) STEERING STEM Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL T This part replaces 51410-29920-08C.

51410-29930-08C

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL X; Includes Item(s) 2 This part replaces 51410-29920-291.

51410-29930-08C

Unavailable

2

OUTER RACE

51621-33001

$18.33

3

BOLT This part replaces 01107-12458.

01500-12457

$6.65

4

LOCK WASHER This part replaces 08321-21128.

08321-01127

$2.07

5

WASHER This part replaces 08322-11128.

08322-01127

$1.86

6

CLIP

51455-30540

Unavailable

7

NO DESCRIPTION AVAILABLE This part replaces 01104-12408.

01500-12403

Unavailable

8

LOCK WASHER This part replaces 08321-21128.

08321-01127

$2.07

9

LOCK WASHER This part replaces 08321-21068.

08321-01067

$1.83

10

SCREW This part replaces 02112-06108.

02112-06107

$1.45

11

CLIP

51453-05110

Unavailable

12

HEAD, STEERING STEM (GOLD) | MODEL T

51311-29920-08C

Unavailable

12

HEAD, STEERING STEM (BLACK) | MODEL X

51311-29920-291

Unavailable

13

BOLT This part replaces 01107-10408.

01500-10407

$3.25

14

WASHER (12.5X26X1.6) This part replaces 09160-12006.

09160-12089

$1.99

15

CLIP

51455-29330

Unavailable

16

BOLT This part replaces 01107-10408.

01500-10407

$3.25

17

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.83

18

HOLDER, HANDLE (GOLD) | MODEL T

56211-29900-08C

Unavailable

18

HOLDER, HANDLE (BLACK) | MODEL X

56211-29900

$17.17

19

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$1.83

20

BOLT This part replaces 09106-08004.

07130-0835B

$3.58

21

BOLT This part replaces 51351-20010.

51351-29400

$35.23

22

WASHER

51356-22012

$7.67
