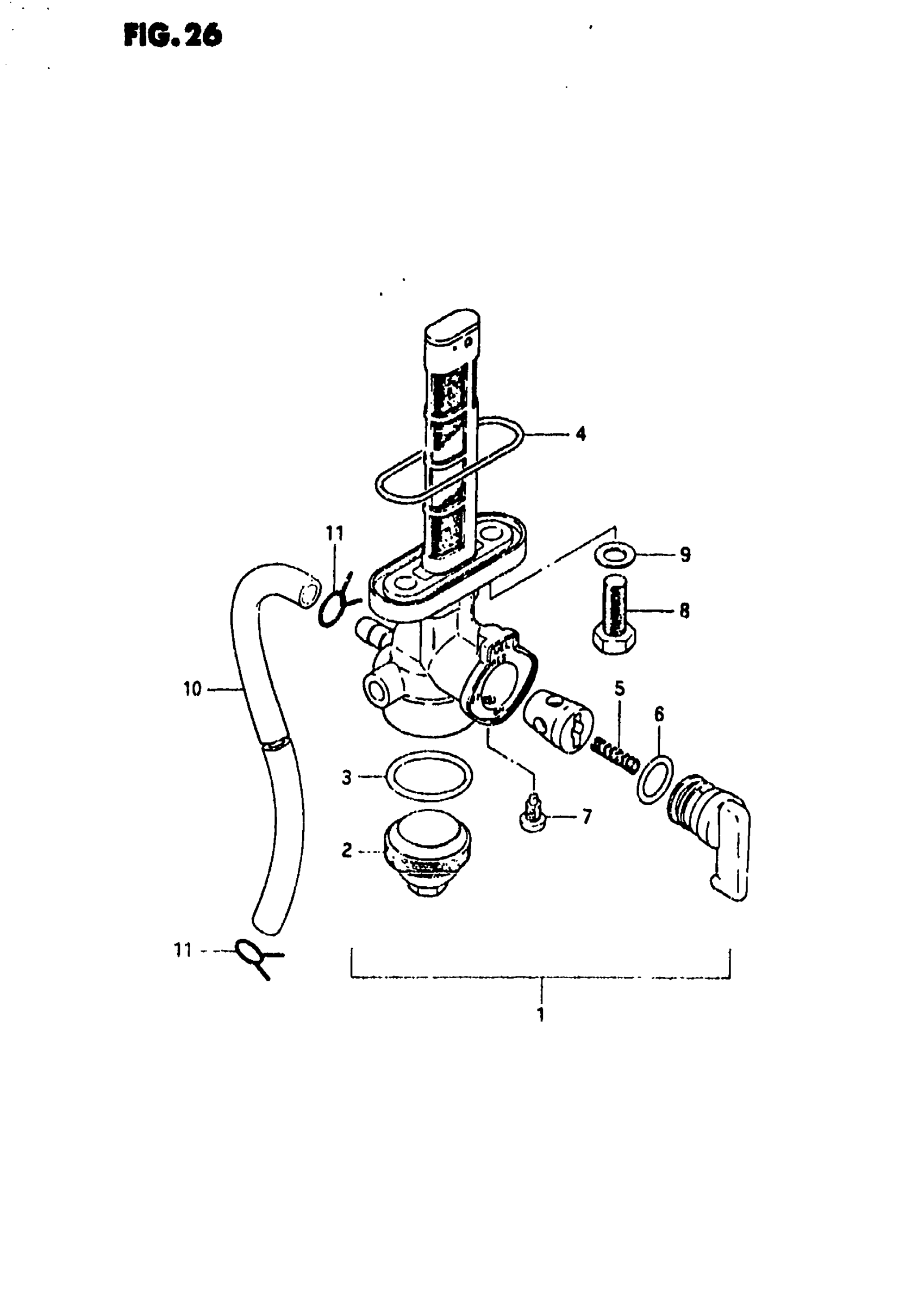

Suzuki TS185 (1981) FUEL COCK Diagram

#

Description
Price

1

COCK ASSY,FUEL | Includes Item(s) 2 - 7 This part replaces 44300-22071.

44300-22077

$50.78

2

CAP

44347-28071

$10.15

3

O-RING This part replaces 44346-28070.

44346-28071

$2.35

4

O-RING This part replaces 44346-28070.

44346-28071

$2.35

5

SPRING

44357-32470

$2.12

6

O RING, LEVER This part replaces 44353-32470.

44353-12C01

$6.80

7

SCREW

44343-41370

$2.50

8

BOLT This part replaces 09128-06006.

09128-06057

$1.64

9

GASKET (5.8X13X1.2) This part replaces 09168-06010.

09168-06023

$2.01

10

HOSE,5X10X600 This part replaces 09343-05129.

44421-13ER0

$9.08

11

CLIP

09401-08402

$1.38
