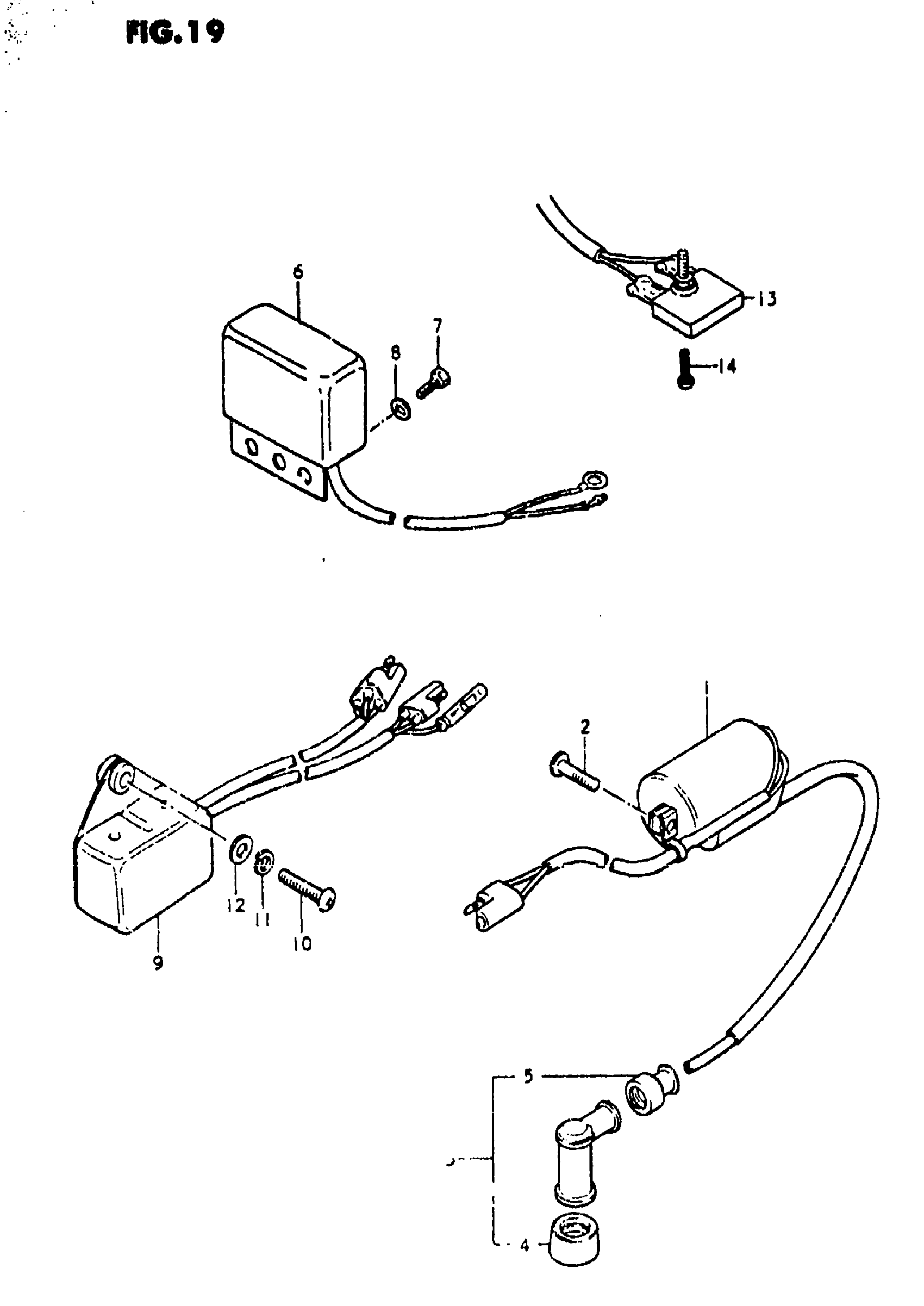

Suzuki TS185 (1981) ELECTRICAL Diagram

#

Description
Price

1

COIL ASSY, IGNITION This part replaces 33410-30020.

33410-14120

$105.41

2

SCREW This part replaces 02112-05208.

02112-05207

$1.97

3

CAP SET,SPARK P | Includes Item(s) 4 - 5 This part replaces 33500-69810.

33500-69811

Unavailable

4

SEAL, SPARK PLUG

33541-69010

$4.11

5

SEAL,HIGH TENSION CORD (SIDE) This part replaces 33542-98000.

33542-38B00

$3.97

6

REGULATOR ASSY, VOLTAGE

32500-25600

Unavailable

7

SCREW

09128-05101

$1.41

8

WASHER This part replaces 08322-21058.

08322-01057

$1.86

9

C.D.I UNIT ASSY

32900-30520

Unavailable

10

SCREW This part replaces 02112-06208.

02112-06207

$1.77

11

LOCK WASHER This part replaces 08321-21068.

08321-01067

$1.83

12

WASHER This part replaces 08322-21068.

08322-01067

$1.86

13

DIODE This part replaces 32800-19063.

32800-16A00

$21.12

14

SCREW This part replaces 02112-05168.

02112-05167

$1.97
