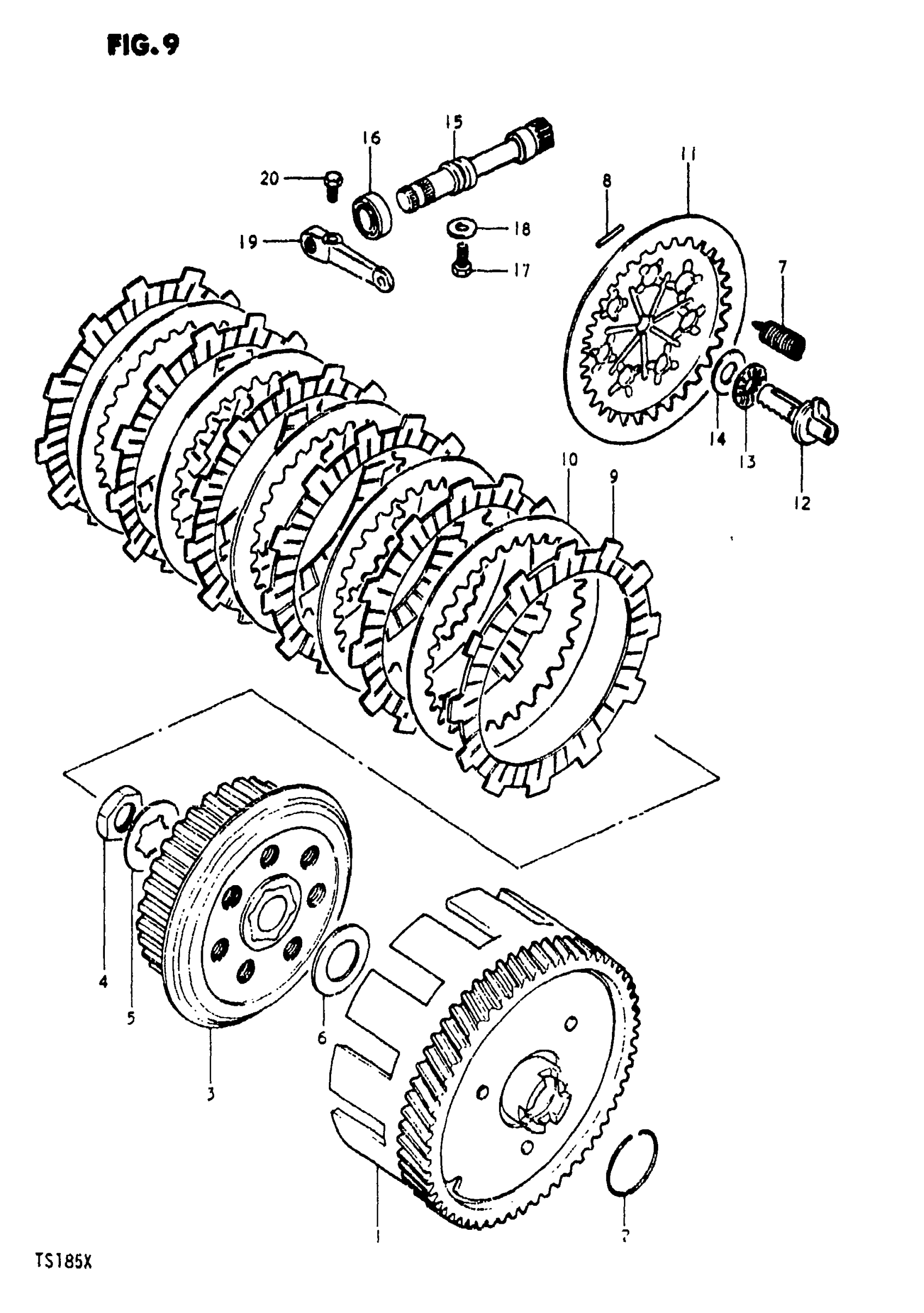

Suzuki TS185 (1981) CLUTCH Diagram

NO DESCRIPTION AVAILABLE This part replaces 21200-29002.

21200-29003

Unavailable

CLIP

09380-30001

Unavailable

HUB,CLUTCH SLEE This part replaces 21410-28700.

21410-39131

$100.46

NUT This part replaces 09140-16001.

09140-16005

$4.08

WASHER

09167-17002

$1.76

WASHER

08211-17282

$2.95

SPRING

09443-12018

$2.80

PIN

09261-02001

$1.50

PLATE, CLUTCH DRIVE This part replaces 21441-28300.

21441-13A01

$13.49

PLATE, CLUTCH DRIVEN (T:1.6) This part replaces 21451-28000.

21451-19A00

$6.94

PLATE, PRESSURE

21460-28000

$28.50

RACK RELEASE This part replaces 23165-28000.

23165-28001

Unavailable

BEARING

09263-10002

$9.20

WASHER This part replaces 09160-10021.

09160-10121

$2.06

PINION, RELEASE

23261-28300

$51.22

OIL SEAL (12X22X9) This part replaces 09285-12002.

09285-12006

$5.70

BOLT

09135-06009

$2.21

WASHER This part replaces 08322-21068.

08322-01067

$1.86

ARM, RELEASE

23271-29300

$33.30

BOLT This part replaces 01107-06208.

01500-06207

$1.99
