1979 Suzuki TS185 Rear Fender Diagram

← All diagrams

Find the part on the Rear Fender diagram for your 1979 Suzuki TS185, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

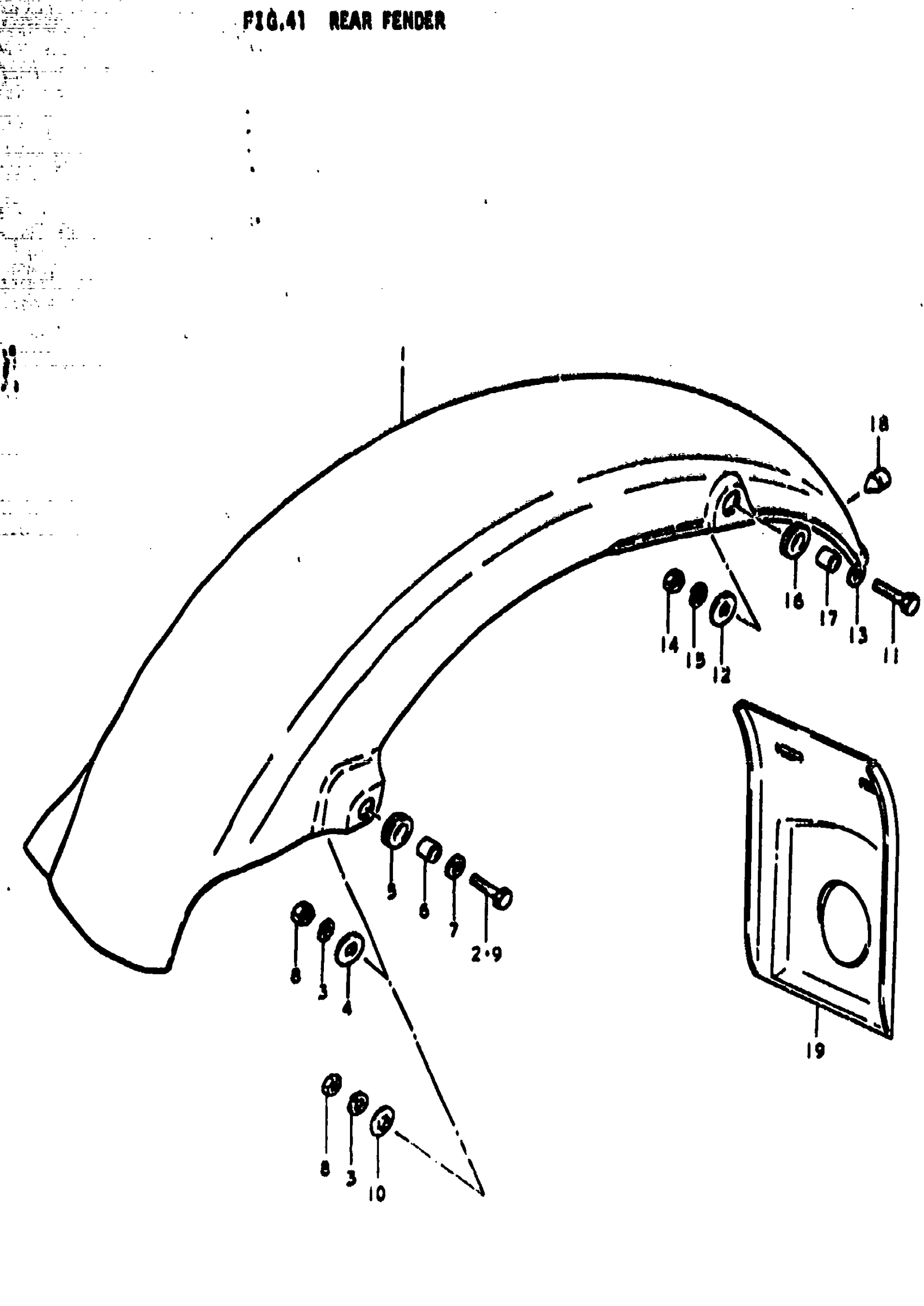

1979 Suzuki TS185 Rear Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE | B This part replaces 63111-29300-189.

63111-29303-737

1
Out of stock

1

NO DESCRIPTION AVAILABLE | C; TO 63111-29303-189 USED WITH 01107-06128 09169-06010 This part replaces 63111-29302-189.

63111-29303-737

1
Out of stock

1

FENDER, REAR | N

63111-29303-03J

1
Out of stock

2

2

$2.48

In stock

3

2

$2.28

In stock

4

WASHER (6.5X20X1.2) | B,C; 6.5x20x1.2 This part replaces 09160-06027.

09160-06077

2
Out of stock

5

CUSHION (8.5X20X8) | B,C This part replaces 09320-08007.

09320-08510

2
Out of stock

6

2

$2.16

In stock

7

1

$1.84

In stock

8

1

$1.82

In stock

9

2

$2.10

In stock

10

WASHER | N

09169-06010

2

$2.83

In stock

11

2

$2.94

In stock

12

WASHER | 8.5x26x1.2

09160-08032

2

$2.64

In stock

13

WASHER This part replaces 08322-11088.

08322-01087

2
Out of stock

14

2

$1.93

In stock

15

2

$2.28

In stock

16

2

$2.05

In stock

18

CUSHION | B,C This part replaces 09321-06013.

09321-06036

1
Out of stock

19

MUD FLAP, REAR FENDER | OPT This part replaces 63331-30600.

63331-30601

1
Out of stock
