Partiron

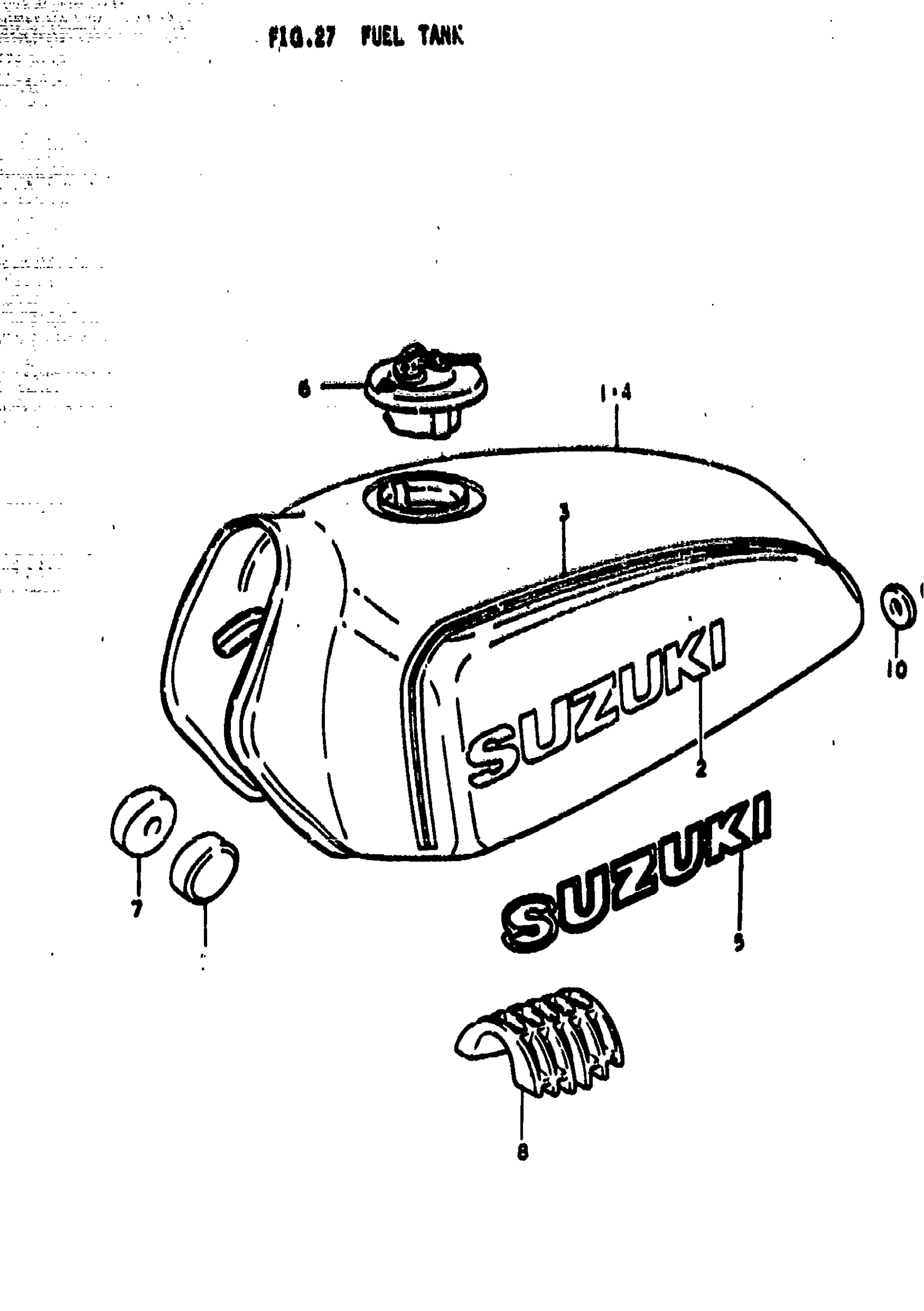

Suzuki TS185 (1979) FUEL TANK Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | B This part replaces 44110-29300-00N.

44110-29301-13L

Unavailable

1

NO DESCRIPTION AVAILABLE | C; Includes Item(s) 2 This part replaces 44110-29310-03K.

44110-29301-13L

Unavailable

2

EMBLEM (BLACK) | B,C This part replaces 68111-29300-019.

68111-43400-019

Unavailable

3

,TAPE SET | C

68100-29810-63R

Unavailable

4

NO DESCRIPTION AVAILABLE | N; Includes Item(s) 5 This part replaces 44100-29330-03J.

44110-29301-13L

Unavailable

5

EMBLEM | N This part replaces 68111-29310-62S.

68111-29310-064

Unavailable

6

CAP SET,FUEL TA | B,C This part replaces 44200-30700.

44200-30832

$105.35

6

CAP SET,FUEL TA | N This part replaces 44200-30702.

44200-30832

$105.35

7

CUSHION This part replaces 09329-10007.

09329-10026

$1.91

8

CUSHION, CENTER

44541-28000

$6.29

9

CUSHION, REAR NO.1

09320-12013

$2.68

10

CUSHION, REAR NO.2

09320-12017

$2.02

11

WASHER, EXHAUST SUPPORT | 8.5x29x1.6 This part replaces 09160-08002.

09160-08135

$2.10

12

SPACER 8.2X12X1 | 8.2x12x17 This part replaces 09180-08032.

09180-08143

$3.45

13

BOLT This part replaces 01107-08308.

01500-08307

$2.80
