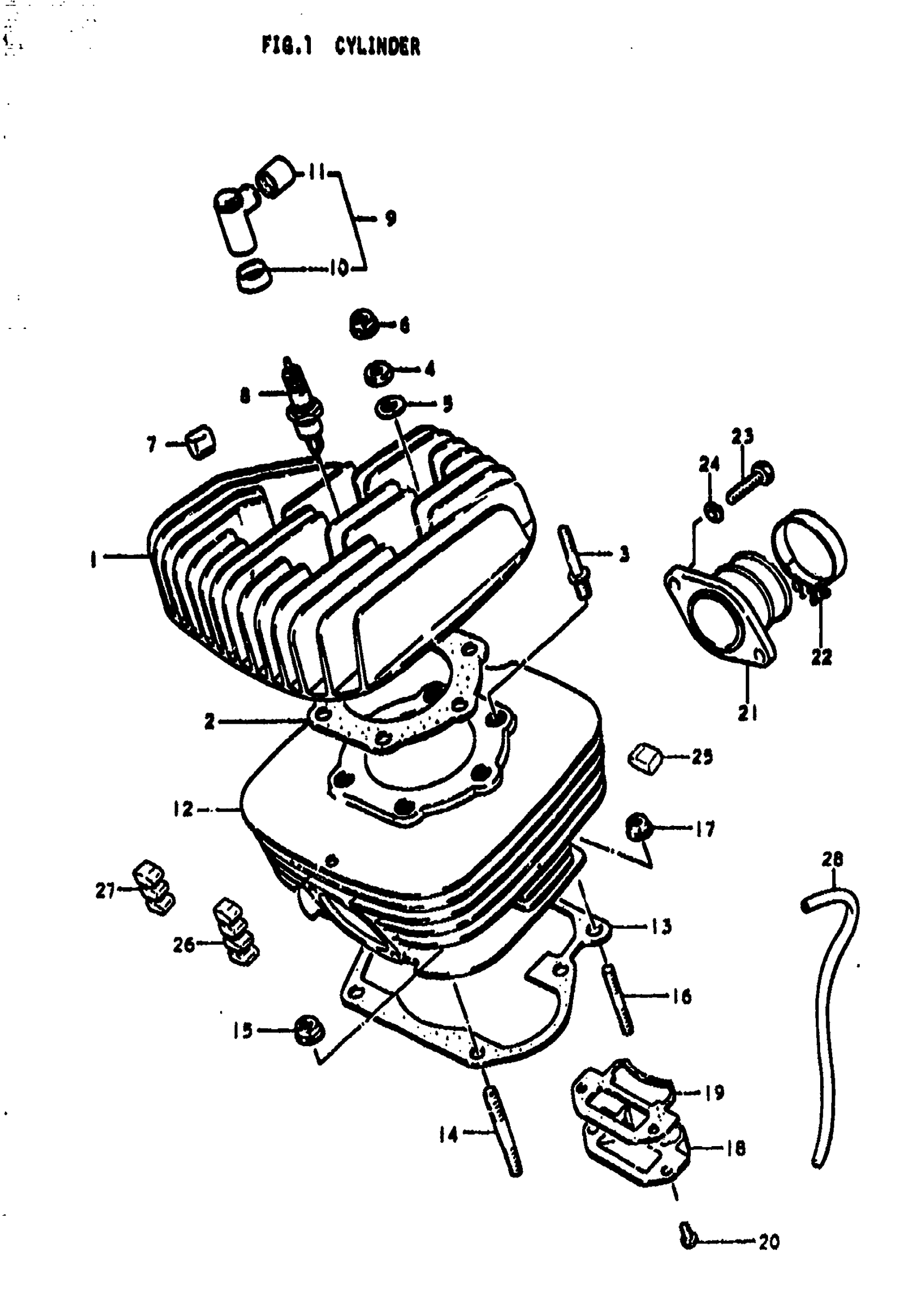

Suzuki TS185 (1979) CYLINDER Diagram

#

Description
Price

1

CYLINDER HEAD | B; TO 11111-29302 USED WITH 09482-00089 OR 09482-00090

11111-29301

Unavailable

1

HEAD,CYLINDER | C,N This part replaces 11111-29302.

11111-29910

Unavailable

2

GASKET This part replaces 11141-29600.

11141-29900

$23.67

3

STUD BOLT

09108-08018

$2.92

4

NUT, CLUTCH RELEASE NO.1 | B,C This part replaces 09140-08005.

09140-08017

$2.12

5

WASHER | B,C This part replaces 08322-21088.

08322-01087

$1.86

6

NUT (CHROME) | N This part replaces 08316-16088.

08316-10087

$2.24

7

NO DESCRIPTION AVAILABLE This part replaces 11251-29300.

11251-30530

Unavailable

8

SPARK PLUG | B; NGK, B7HS

09482-00082

$2.80

8

SPARK PLUG | B; ND, W22FS

09482-00083

Unavailable

8

SPARK PLUG | C,N; NGK, BP7ES

09482-00139

$2.80

8

SPARK PLUG | C,N; ND, W22EP

09482-00140

Unavailable

9

CAP SET,SPARK P | Includes Item(s) 10 - 11 This part replaces 33500-69810.

33500-69811

Unavailable

10

SEAL, SPARK PLUG

33541-69010

$4.11

11

SEAL,HIGH TENSION CORD (SIDE) This part replaces 33542-98000.

33542-38B00

$3.97

12

NO DESCRIPTION AVAILABLE | B This part replaces 11210-29300.

11210-29901

Unavailable

12

NO DESCRIPTION AVAILABLE | C,N This part replaces 11210-29510.

11210-29901

Unavailable

13

GASKET,CYLINDER This part replaces 11241-29300.

11241-29310

$7.98

14

BOLT,STUD This part replaces 01421-10258.

01421-1025B

$2.90

15

NUT, WHEEL SET This part replaces 09159-10022.

08316-10107

$2.38

15

NUT, WHEEL SET | N This part replaces 08316-16108.

08316-10107

$2.38

16

BOLT,STUD This part replaces 01421-08258.

01421-0825A

$2.01

17

NUT (CHROME) This part replaces 08316-16088.

08316-10087

$2.24

18

REED VALVE ASSY | B,C This part replaces 13150-41111.

13150-41113

$159.87

18

REED VALVE ASSY | N

13150-41113

$159.87

19

GASKET,REED VAL This part replaces 13156-41100.

13156-41100-H17

$3.24

20

SCREW This part replaces 02112-06208.

02112-06207

$1.77

21

PIPE,INTAKE This part replaces 13110-45000.

13110-49001

Unavailable

22

CLAMP This part replaces 09402-46306.

09402-46208

$4.19

23

BOLT This part replaces 01107-06108.

01500-06107

$2.07

24

LOCK WASHER This part replaces 08321-21068.

08321-01067

$1.83

25

RUBBER PAD, CYLINDER | B

11252-25000

$4.26

26

RUBBER PAD CYLI This part replaces 11251-29310.

11251-11300

$16.03

27

RUBBER PAD CYLI This part replaces 11251-29320.

11251-11300

$16.03

28

HOSE | 3x5x140 This part replaces 09344-03014.

09351-30001-600

$3.22
