1972 Suzuki TS185 Rear Swinging Arm Diagram

← All diagrams

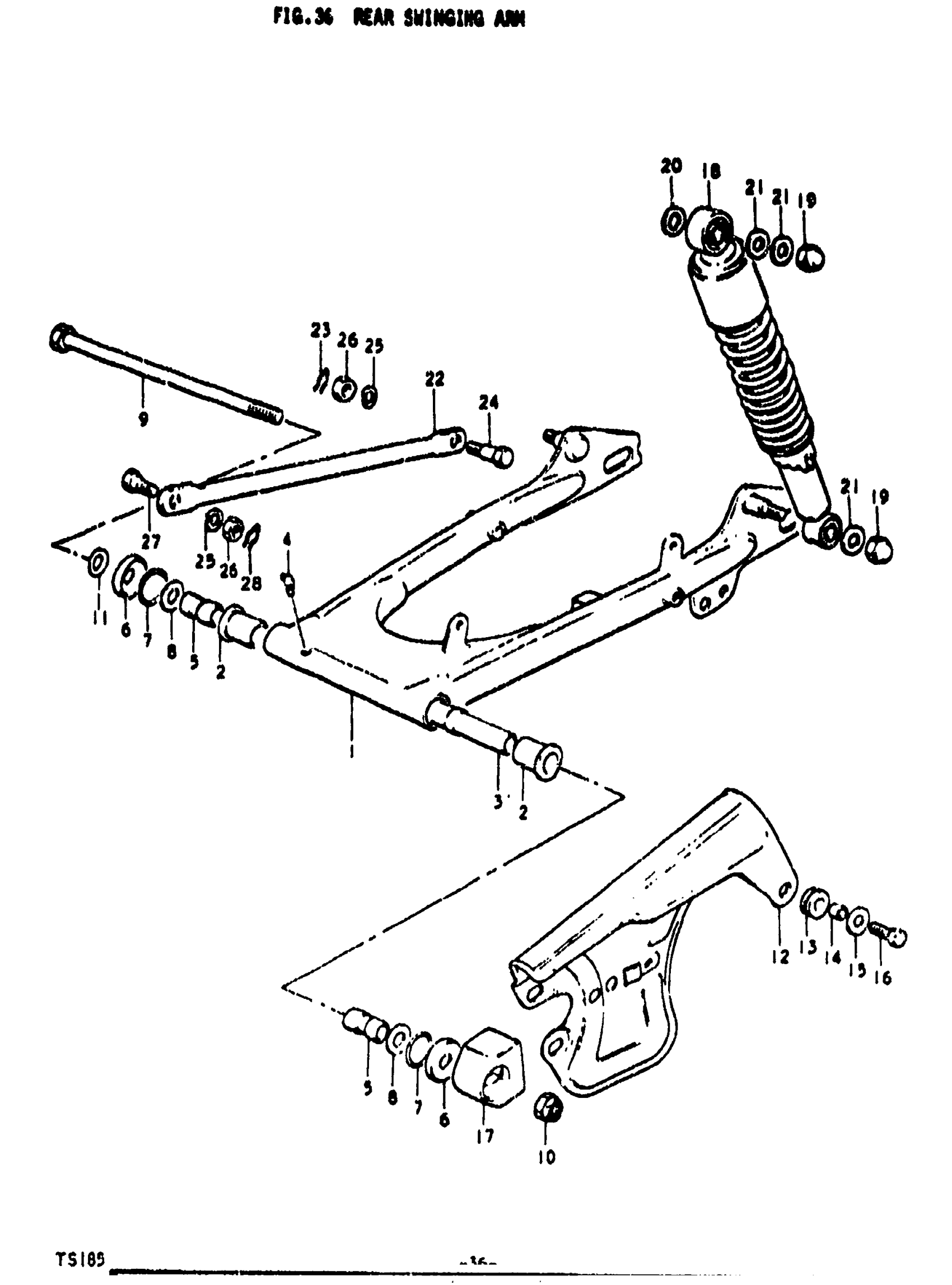

Find the part on the Rear Swinging Arm diagram for your 1972 Suzuki TS185, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1972 Suzuki TS185 Rear Swinging Arm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

REAR SWINGING ARM SET | R; FROM 61100-28805-019 TO 1100-28860-019

61100-28840-019

—
Out of stock

1

REAR SWINGING ARM SET | J; Includes Item(s) 2 - 4

61100-28860-019

1
Out of stock

2

2

$9.94

In stock

3

SPACER

61280-28000

1
Out of stock

4

1

$4.39

In stock

5

SPACER, PIVOT

61251-28000

2

$13.33

In stock

6

COVER, DUST SEAL

61262-09200

2

$3.68

In stock

7

.O-RING (D:3,ID:24.5) This part replaces 09280-24001.

09280-24003

2
Out of stock

8

WASHER | 12.5x24x2.3

09160-12005

2

$2.58

In stock

9

SHAFT, PIVOT | FROM 61211-28600 This part replaces 61211-28001.

61211-28002

1
Out of stock

10

1

$4.12

In stock

11

WASHER This part replaces 08322-11128.

08322-01127

1
Out of stock

12

CASE, CHAIN This part replaces 61310-28000-126.

61310-28000-019

1
Out of stock

13

CUSHION (8.5X20X8) This part replaces 09320-08007.

09320-08510

3
Out of stock

15

WASHER (6.5X20X1.2) | 6.5x20x1.2 This part replaces 09160-06027.

09160-06077

3
Out of stock

16

3

$2.10

In stock

18

ABSORBER ASSY, REAR SHOCK

62100-28600

—
Out of stock

19

4

$2.73

In stock

20

WASHER This part replaces 08322-11128.

08322-01127

2
Out of stock

22

1

$21.23

In stock

23

CLIP

09384-06001

1

$1.46

In stock

24

1

$3.00

In stock

25

2

$2.28

In stock

26

NUT

09140-08008

2

$1.55

In stock

27

BOLT, TORQUE LINK FRONT | R; TO 09111-08015 WITH G9385-10001 This part replaces 09119-08017.

09111-08015

1
Out of stock

27

BOLT | J

09111-08015

1
Out of stock

28

CLIP | R

09864-06001

—
Out of stock

28

CLIP | J This part replaces 09385-10001.

09385-10005

1
Out of stock
