1972 Suzuki TS185 Rear Fender Diagram

← All diagrams

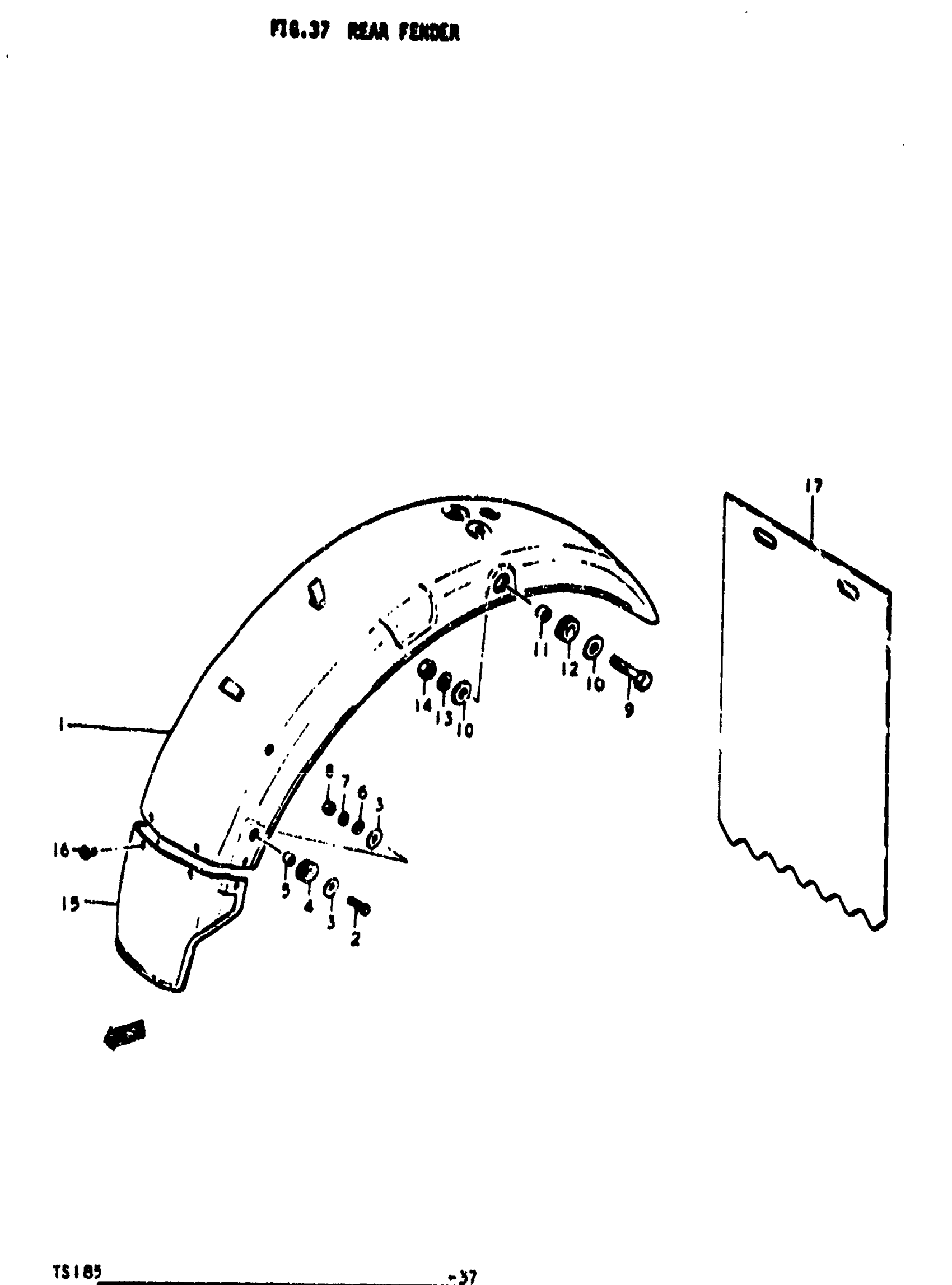

Find the part on the Rear Fender diagram for your 1972 Suzuki TS185, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1972 Suzuki TS185 Rear Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FENDER, REAR

63110-29000

1
Out of stock

2

BOLT This part replaces 01112-06208.

01500-06207

2
Out of stock

3

WASHER (6.5X20X1.2) | 6.5x20x1.2 This part replaces 09160-06027.

09160-06077

4
Out of stock

4

CUSHION (8.5X20X8) This part replaces 09320-08007.

09320-08510

2
Out of stock

5

SPACER | 8.5x10.5x17.2

09180-08038

—
Out of stock

6

WASHER This part replaces 08322-21068.

08322-01067

2
Out of stock

7

2

$2.28

In stock

8

.NUT This part replaces 08311-11068.

08310-00067

2
Out of stock

9

2

$3.00

In stock

10

WASHER | 10.3x25x1.6 TO 09160-10041 This part replaces 09160-10031.

09160-10126

4
Out of stock

11

SPACER | 10.1x13x7

09180-10026

2
Out of stock

12

FENDER SIDE CUS This part replaces 09320-12011.

09320-12090

2
Out of stock

13

LOCK WASHER This part replaces 08321-21108.

08321-01107

2
Out of stock

14

NUT This part replaces 08312-32108.

08310-00107

2
Out of stock

15

GUARD, MUD

63411-29000

1
Out of stock

16

SCREW This part replaces 02141-05107.

02142-05107

4
Out of stock

17

FLAP, REAR FENDER MUD | OPT

63331-26000

1
Out of stock
