1972 Suzuki TS185 Fuel Cock Diagram

← All diagrams

Find the part on the Fuel Cock diagram for your 1972 Suzuki TS185, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

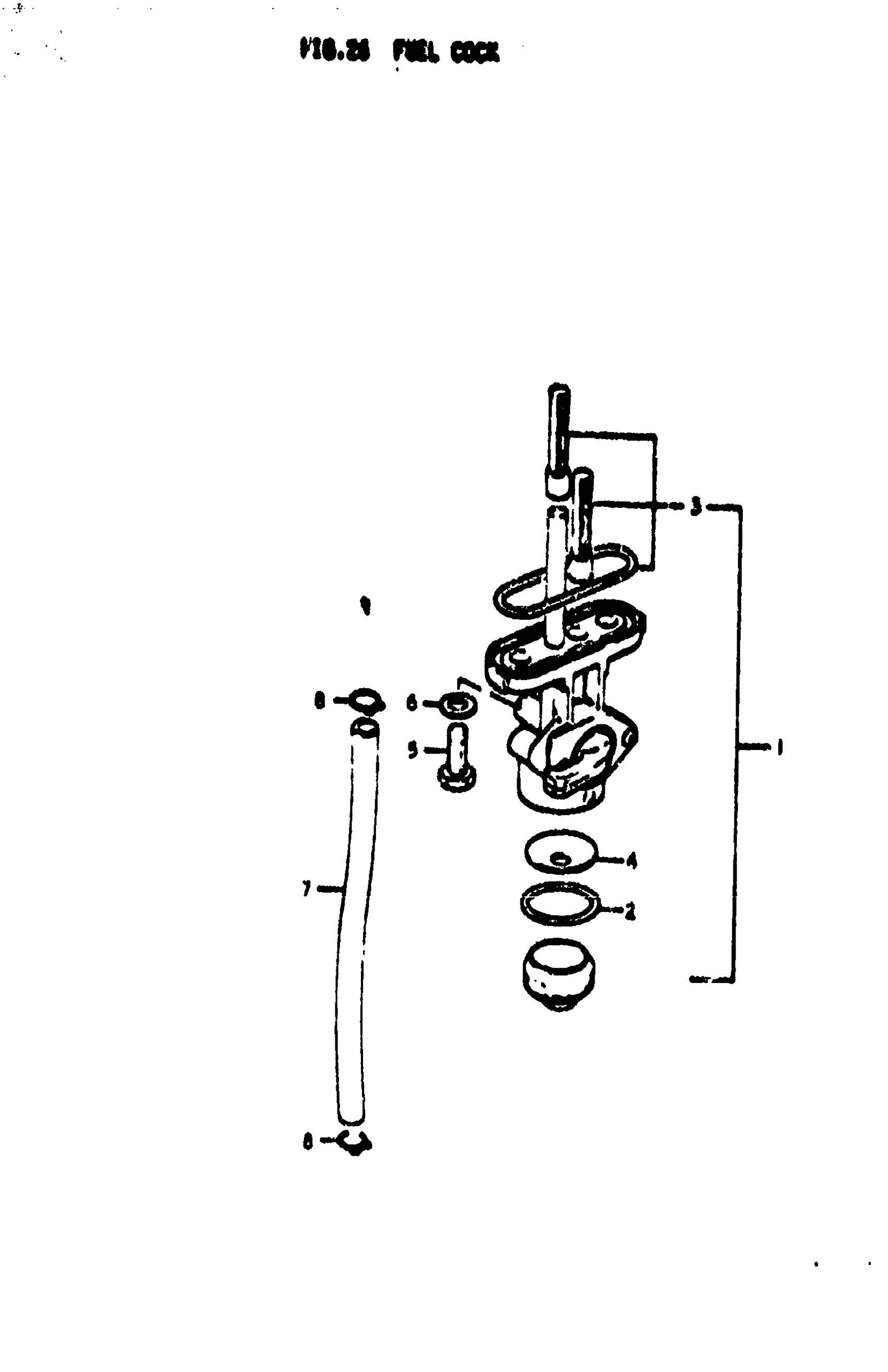

1972 Suzuki TS185 Fuel Cock Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COCK ASSY FUEL | R; TO 44300-28071 This part replaces 44300-28070.

44300-28604

1
Out of stock

1

COCK ASSY FUEL | J; Includes Item(s) 2 - 4 This part replaces 44300-28071.

44300-28604

1
Out of stock

2

O-RING This part replaces 44346-28070.

44346-28071

1
Out of stock

3

FILTER SET This part replaces 44300-28817.

44300-28818

1
Out of stock

4

FILTER

44344-28070

1
Out of stock

5

SCREW This part replaces 09128-06005.

02162-0616B

2
Out of stock

6

GASKET (5.8X13X1.2) This part replaces 09168-06010.

09168-06023

2
Out of stock

7

HOSE, FUEL | 5x8.2x200

09343-05032

—
Out of stock

8

CLIP, FUEL HOSE

09401-08401

2
Out of stock
← Carburetor Fuel Tank →
