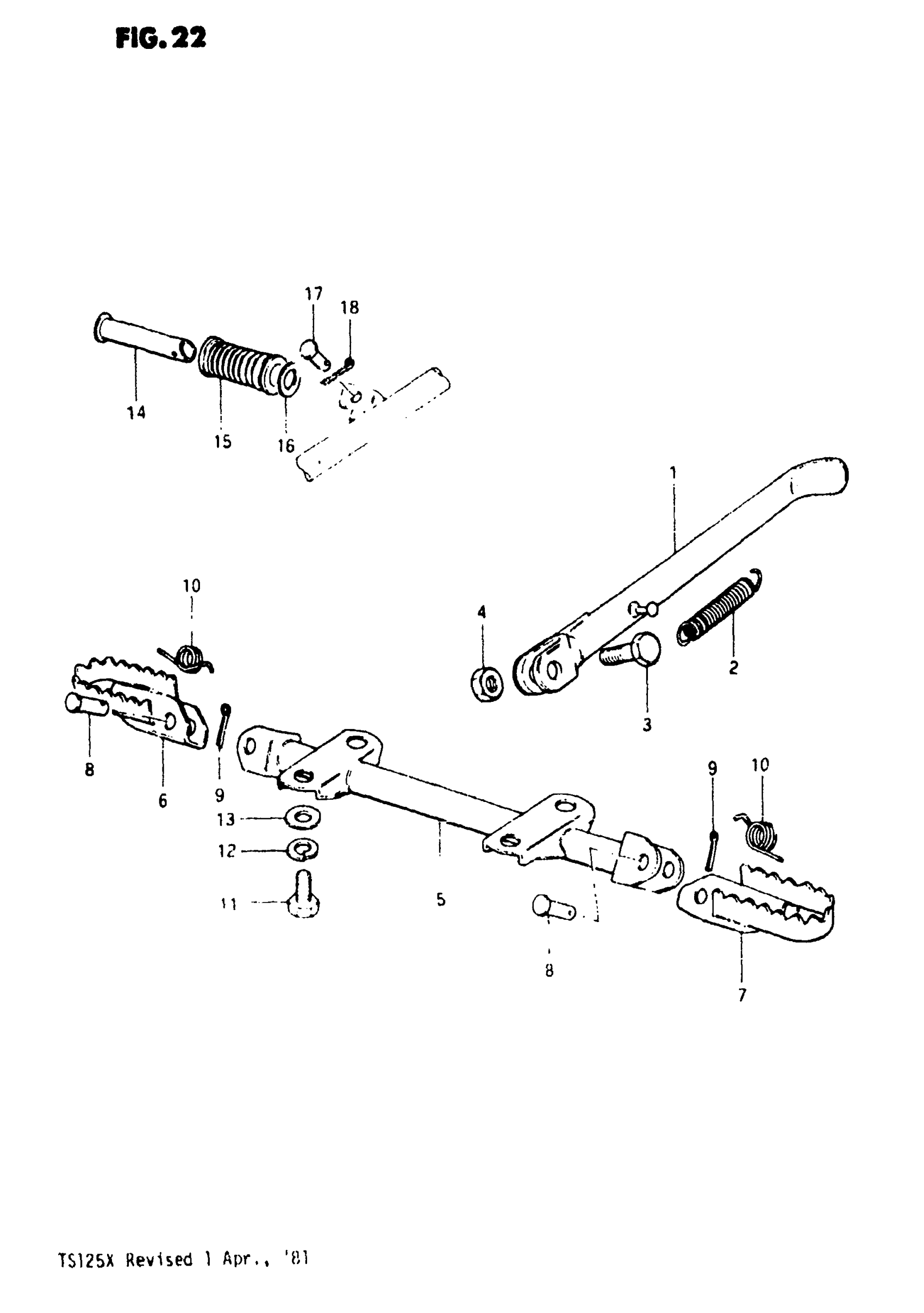

Suzuki TS125 (1981) STAND Diagram

#

Description
Price

1

STAND, PROP

42310-48500

Unavailable

2

SPRING

09443-14017

$2.88

3

BOLT (10X30)

09100-10067

$2.71

4

NUT This part replaces 08310-22108.

08310-00107

$2.25

5

BAR, FRONT FOOTREST

43510-48001

$152.76

6

FOOTREST,FRONT, This part replaces 43550-41102.

43550-48501

$45.57

7

FOOTREST,FRONT, This part replaces 43560-41102.

43560-48501

$42.95

8

PIN

09200-10008

$2.74

9

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.25

10

SPRING

09448-15004

$2.40

11

BOLT, REAR This part replaces 01107-08208.

01500-08207

$2.64

12

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$1.89

13

WASHER This part replaces 08322-11088.

08322-01087

$1.92

14

BAR, PILLION FOOTREST

43610-03001

$6.41

15

RUBBER

43612-03001

$5.07

16

WASHER This part replaces 09160-19006.

09160-19024

$3.22

17

PIN

09200-06010

$1.87

18

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.25
