1979 Suzuki TS125 Rear Fender Diagram

← All diagrams

Find the part on the Rear Fender diagram for your 1979 Suzuki TS125, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

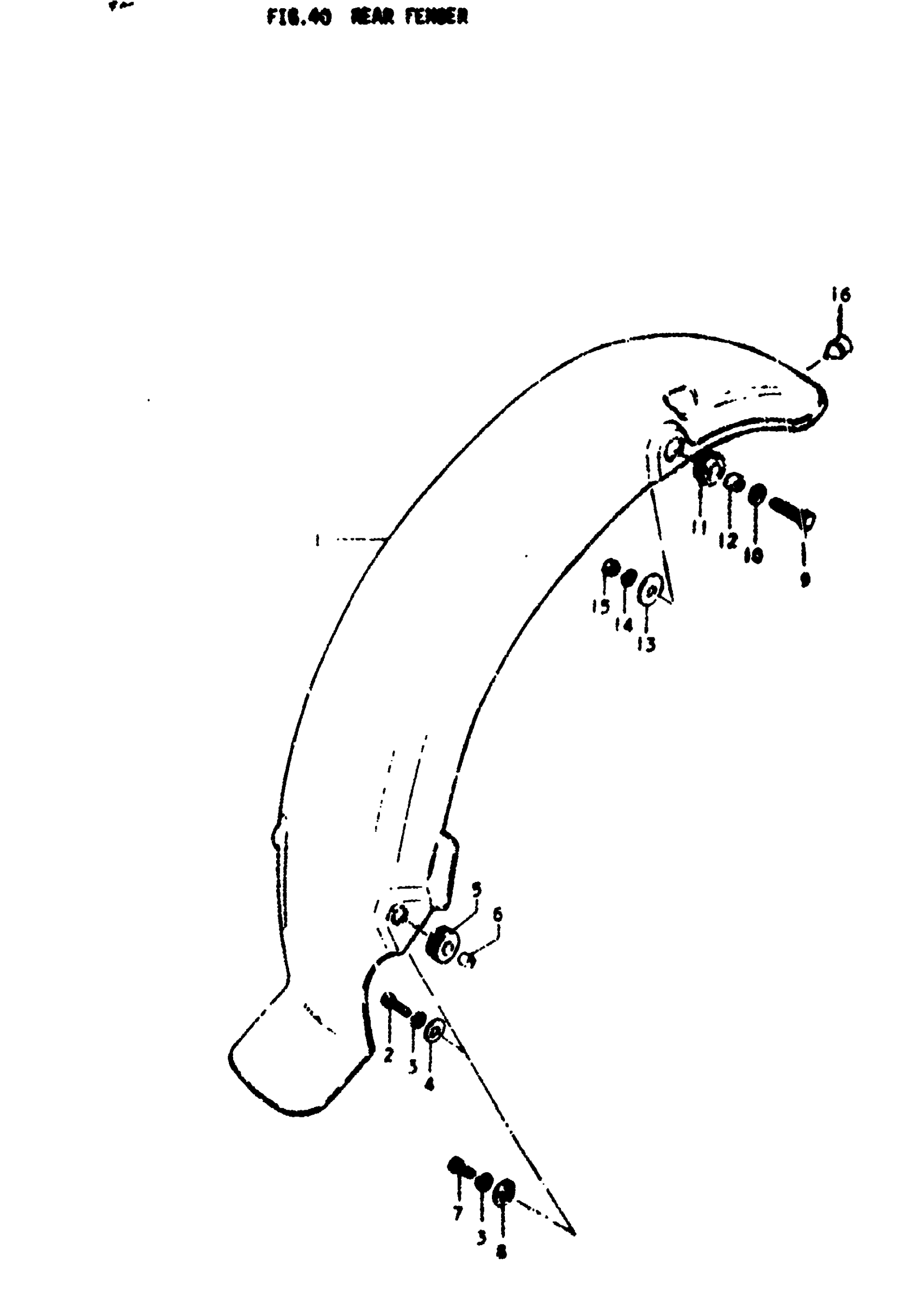

1979 Suzuki TS125 Rear Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE | C; FROM 63111-48000-189 TO 63111-48002-100 USED, WITH 01107-85168 09100-00010 This part replaces 63111-48001-189.

63111-48602-13L

1
Out of stock

1

NO DESCRIPTION AVAILABLE | N This part replaces 63111-48002-03K.

63111-48002-737

1
Out of stock

2

BOLT | C This part replaces 01107-06208.

01500-06207

2
Out of stock

3

LOCK WASHER This part replaces 08321-21068.

08321-01067

2
Out of stock

4

WASHER (6.5X20X1.2) | C; 6.5x20x1.2 This part replaces 09160-06027.

09160-06077

2
Out of stock

5

CUSHION (8X18X10) | C This part replaces 09320-08001.

09320-08527

2
Out of stock

6

SPACER | C; 6.3x9.1x6.7 This part replaces 09180-06027.

09180-06258

2
Out of stock

7

BOLT, CANISTER | N This part replaces 01107-06168.

01500-06167

2
Out of stock

8

WASHER | N

09169-06010

2
Out of stock

9

BOLT This part replaces 01107-06356.

01500-0635A

2
Out of stock

10

WASHER This part replaces 08322-11088.

08322-01087

2
Out of stock

11

FENDER SIDE CUS This part replaces 09320-12011.

09320-12090

2
Out of stock

12

WASHER | 8.2x11.8x7.5 This part replaces 09160-08021.

09160-08130

2
Out of stock

13

WASHER | 8.5x26x1.2

09160-08032

2
Out of stock

14

.LOCK WASHER This part replaces 08321-21088.

08321-01087

2
Out of stock

15

NUT This part replaces 08310-12088.

08310-00087

2
Out of stock

16

CUSHION | C This part replaces 09321-06013.

09321-06036

1
Out of stock
