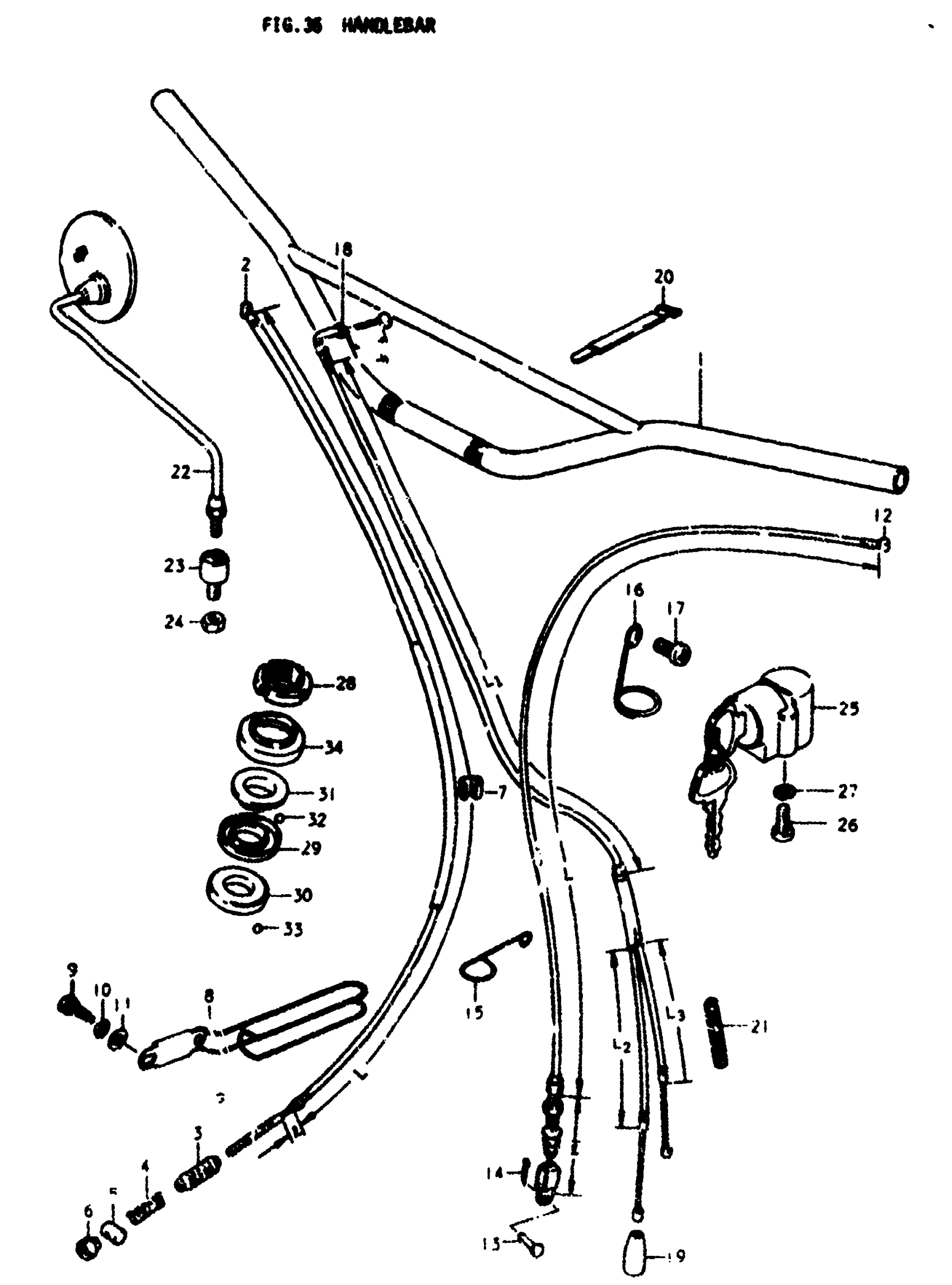

Suzuki TS125 (1979) HANDLEBAR Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | C This part replaces 56110-48001.

56110-48003-08C

Unavailable

1

NO DESCRIPTION AVAILABLE | C This part replaces 56110-48002.

56110-48003-08C

Unavailable

1

NO DESCRIPTION AVAILABLE | N This part replaces 56110-48003.

56110-48003-08C

Unavailable

2

CABLE,FR BRAKE | L:1110, L:66; Includes Item(s) 3 - 6 This part replaces 58100-28100.

58100-28090

$19.30

3

DUST SEAL

09287-07001

$2.01

4

SPRING

09440-06003

$2.67

5

PIN

09209-10001

$1.33

6

NUT

09150-05101

$2.80

7

CLIP, CABLE

09408-00002

$2.20

8

GUIDE,CABLE This part replaces 58620-30501.

34930-05203

$21.23

9

BOLT This part replaces 01107-08128.

01500-08127

$2.64

10

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$1.83

11

WASHER This part replaces 08322-11088.

08322-01087

$1.86

12

CABLE,CLUTCH | L:960, L:136 This part replaces 58200-48000.

58200-46090

$13.50

13

PIN

09200-06011

Unavailable

14

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.22

15

CLAMP

34948-29000

Unavailable

16

GUIDE, HIGHTENSION CORD This part replaces 34949-30001.

34949-30002

$6.43

17

SCREW This part replaces 02112-06088.

02112-06087

$1.45

18

CABLE ASSY, THROTTLE | C~F.NO.115350 L1:640, L2:330, L3:210, L4:29

58300-48000

Unavailable

18

CABLE ASSY,THRO | F.NO.115351~ L1:640, L2:330, L3:210, L4:39 This part replaces 58300-48001.

58300-48402

Unavailable

19

SEAL,DUST This part replaces 09287-07002.

09287-07006

$2.50

20

CLAMP | L:110 This part replaces 09407-11302.

09407-18302

$2.27

21

PROTECTOR

58399-27100

$3.56

22

MIRROR ASSY,RR This part replaces 56500-31011.

56500-31014

$45.21

22

MIRROR ASSY,RR This part replaces 56600-31011.

56600-31014

$45.21

23

CUSHION, REAR VIEW MIRROR This part replaces 56700-31001.

56700-45400

$20.62

24

NUT This part replaces 08310-22108.

08310-00107

$2.19

25

LOCK ASSY, STEERING This part replaces 51910-25310.

51910-25311

$45.52

26

SCREW This part replaces 02112-05128.

02112-05127

$1.97

27

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.83

28

NUT, STEERING STEM

51631-28000

$19.60

29

RACE,STEERING INNER UPPER

51611-20002

$13.50

30

RACE, INNER LOWER

51611-33002

$13.02

31

RACE,STEERING OUTER UPPER

51621-28000

$13.50

32

STEEL BALL

06111-06003

$1.24

33

STEEL BALL

06111-08003

$1.30

34

DUST SEAL,STEERING UPPER

51643-25001

$4.17
