1972 Suzuki TS125 Rear Fender Diagram

← All diagrams

Find the part on the Rear Fender diagram for your 1972 Suzuki TS125, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

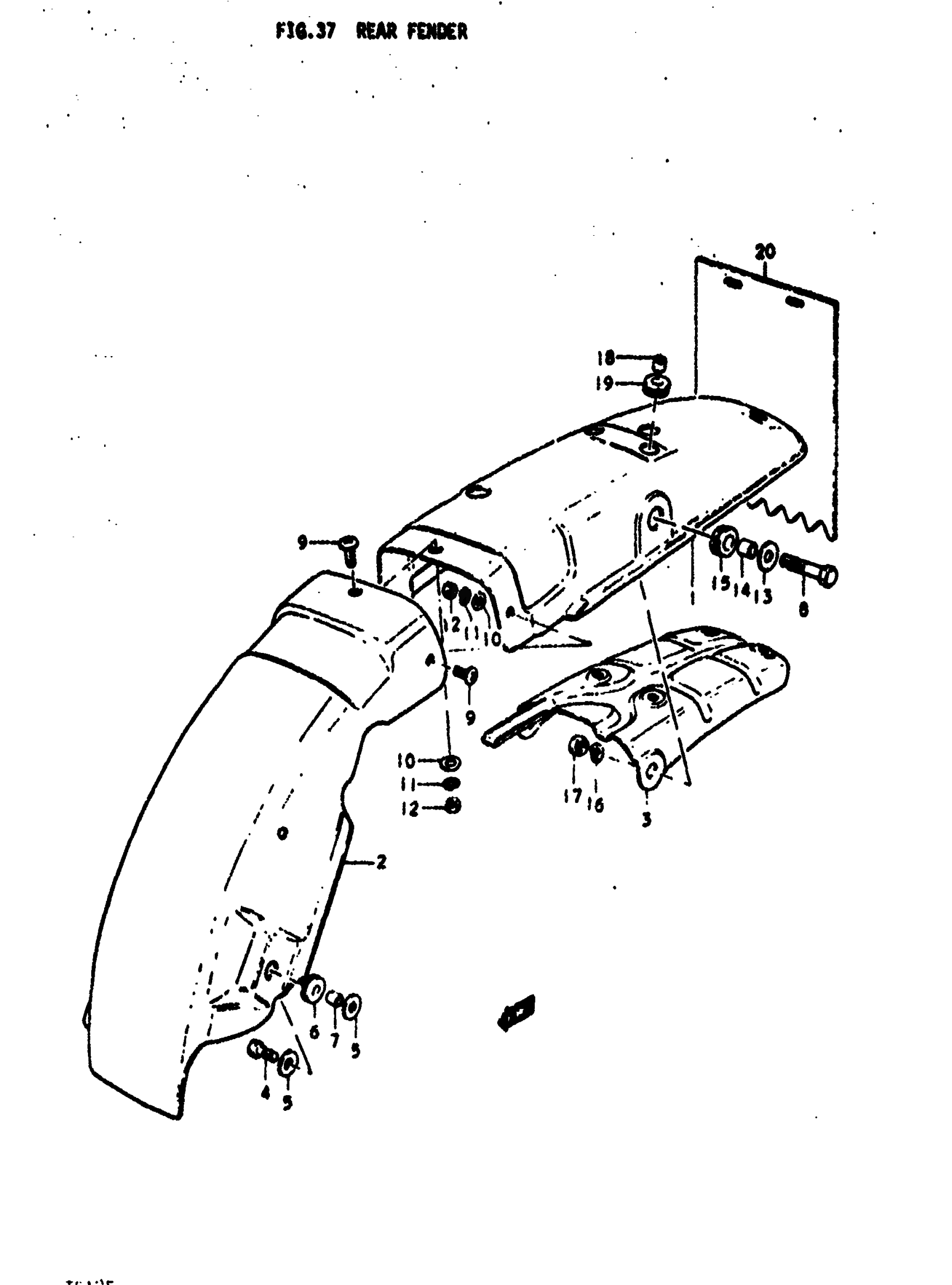

1972 Suzuki TS125 Rear Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FENDER, REAR | R; TO 63113-28000-737 This part replaces 63113-28000-137.

63113-28000-737

1
Out of stock

1

FENDER, REAR | R; TO 63113-28000-737 This part replaces 63113-28000-163.

63113-28000-737

1
Out of stock

1

FENDER, REAR | R

63113-28000-737

1
Out of stock

1

FENDER, REAR | J This part replaces 63113-28000-184.

63113-28000-737

1
Out of stock

2

BODY, REAR FENDER FRONT | TO 63110-28600

63112-28000

—
Out of stock

3

REINFORCEMENT, REAR FENDER

63120-28000

1
Out of stock

4

2

$2.10

In stock

5

WASHER (6.5X20X1.2) This part replaces 09160-06027.

09160-06077

4
Out of stock

6

CUSHION

09320-06007

—
Out of stock

7

SPACER

09180-06038

2

$2.16

In stock

8

2

$3.00

In stock

9

SCREW This part replaces 02141-05127.

02142-05127

3
Out of stock

10

WASHER

08322-11056

—
Out of stock

11

LOCK WASHER This part replaces 08321-21058.

08321-0105A

3
Out of stock

12

3

$1.97

In stock

13

WASHER | TO 09160-10041 This part replaces 09160-10031.

09160-10126

2
Out of stock

14

SPACER, FENDER SIDE

09180-10026

2
Out of stock

15

2

$2.05

In stock

16

2

$1.93

In stock

17

2

$2.35

In stock

18

SPACER, FENDER REAR

09180-06038

4

$2.16

In stock

19

CUSHION (8.5X20X8) This part replaces 09320-08007.

09320-08510

4
Out of stock

20

FLAP, REAR FENDER MUD | OPT

63331-26000

1
Out of stock
