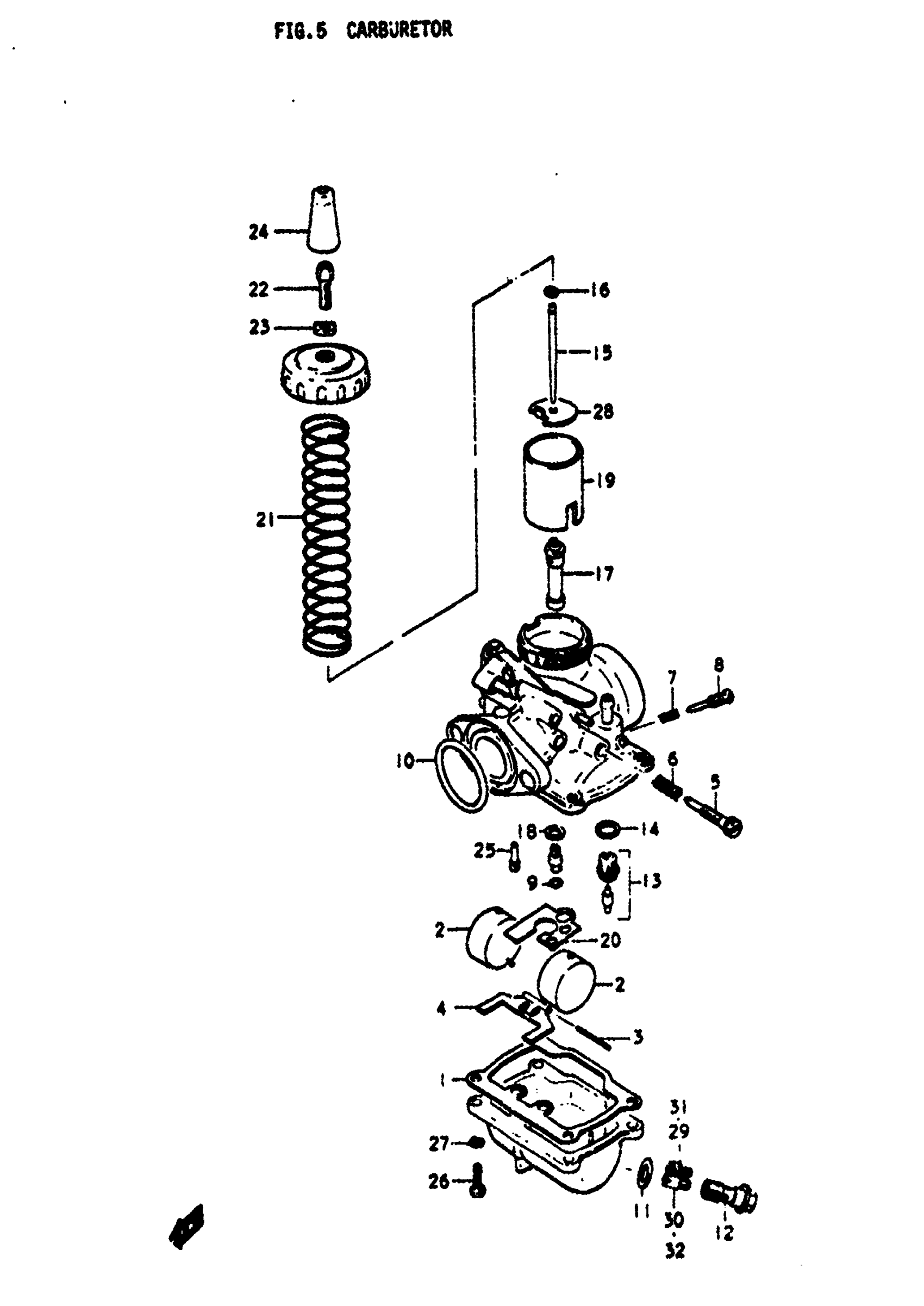

Suzuki TS125 (1972) CARBURETOR Diagram

#

Description
Price

0

CARBURETOR ASSY | Includes Item(s) 1 - 30

13200-28603

Unavailable

1

GASKET, FLOAT CHAMBER

13251-11010

$5.14

2

FLOAT

13252-18620

$20.55

3

PIN, FLOAT

13254-11010

Unavailable

4

ARM, FLOAT

13253-28010

Unavailable

5

SCREW, THROTTLE STOP This part replaces 13267-15110.

13267-40230

$11.12

5

SCREW, THROTTLE STOP | J; F.NO.55480~

13267-28110

Unavailable

6

SPRING, STOP SCREW

13268-03110

$6.15

7

SPRING, PILOT AIR ADJUSTING

13268-01010

$4.11

8

SCREW, PILOT AIR ADJUSTING

13269-15010

Unavailable

9

O RING

13294-28010

$4.22

10

O RING This part replaces 13295-28010.

13295-28011

$3.07

11

WASHER, BANJO BOLT

13332-97010

Unavailable

12

BOLT, BANJO | R

13333-28010

Unavailable

12

BOLT, BANJO | J; FROM 13333-28010

13333-29110

Unavailable

12

BOLT, BANJO | J; F.NO.55480~

13333-97010

Unavailable

13

VALVE,NEEDLE This part replaces 13370-28010.

13370-48051

$70.88

13

VALVE ASSY, NEEDLE | J; F.NO.55480~

13370-28110

$42.76

14

GASKET, NEEDLE VALVE

13392-58600

$1.85

15

NEEDLE, JET | 4DH5-2 This part replaces 13383-11010.

13383-33010

$22.72

15

NEEDLE, JET | J; 4DH7-3 F.NO.55480~

13383-33010

$22.72

16

CLIP, NEEDLE

13394-03010

Unavailable

16

CLIP, NEEDLE | J; F.NO.55480~

13394-10010

$6.15

17

NO DESCRIPTION AVAILABLE | 0-4

09494-00080

Unavailable

17

NOZZLE, NEEDLE | J; 0-0 F.NO.55480~

09494-00102

Unavailable

18

WASHER, NEEDLE JET

13382-03110

$2.80

19

VALVE, THROTTLE | CA:3.0

13551-28010

Unavailable

20

PLATE | J; F.NO.55480~

13259-97010

$3.42

21

SPRING, THROTTLE VALVE This part replaces 13573-97010.

13573-30900

$8.13

22

ADJUSTER This part replaces 13577-03010.

13577-48110

$9.37

23

NUT, CABLE ADJUSTER

13661-16600

$4.37

24

BOOT, CABLE ADJUSTER

13681-16601

$7.78

25

JET, PILOT (25) | #25 This part replaces 09492-25003.

09492-25005

$8.74

26

SCREW This part replaces 02111-04168.

02112-0416A

$1.24

27

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.86

28

SEAT, THROTTLE VALVE SPRING

13581-28010

$8.97

29

JET, MAIN (90) | J; #90 F.NO.55480~ This part replaces 09491-90003.

09491-90007

$12.87

30

JET, MAIN (120) | R,J; #120 This part replaces 09491-24002.

09491-24014

Unavailable

31

JET, MAIN (100) | J; #100 OPT F.NO. 55480~ This part replaces 09491-20003.

09491-20017

$8.87

31

JET, MAIN (110) | J; #110 OPT F.NO. 55480~ This part replaces 09491-22004.

09491-22016

$9.22

31

JET, MAIN (125) | J; #125 OPT F.NO. 55480~ This part replaces 09491-25001.

09491-25010

$11.98

31

JET, MAIN (130) | J; #130 OPT F.NO. 55480~ This part replaces 09491-26004.

09491-26011

$12.38

32

JET, MAIN | #125 OPT

09491-24004

Unavailable

32

JET, MAIN (127.5) | #130 OPT This part replaces 09491-25003.

09491-25011

$12.38

32

JET, MAIN (132.5) | #135 OPT This part replaces 09491-26005.

09491-26012

$12.15

32

JET, MAIN | #140 OPT This part replaces 09491-28002.

09491-28009

Unavailable
