1972 Suzuki TS125 Brake Pedal Diagram

← All diagrams

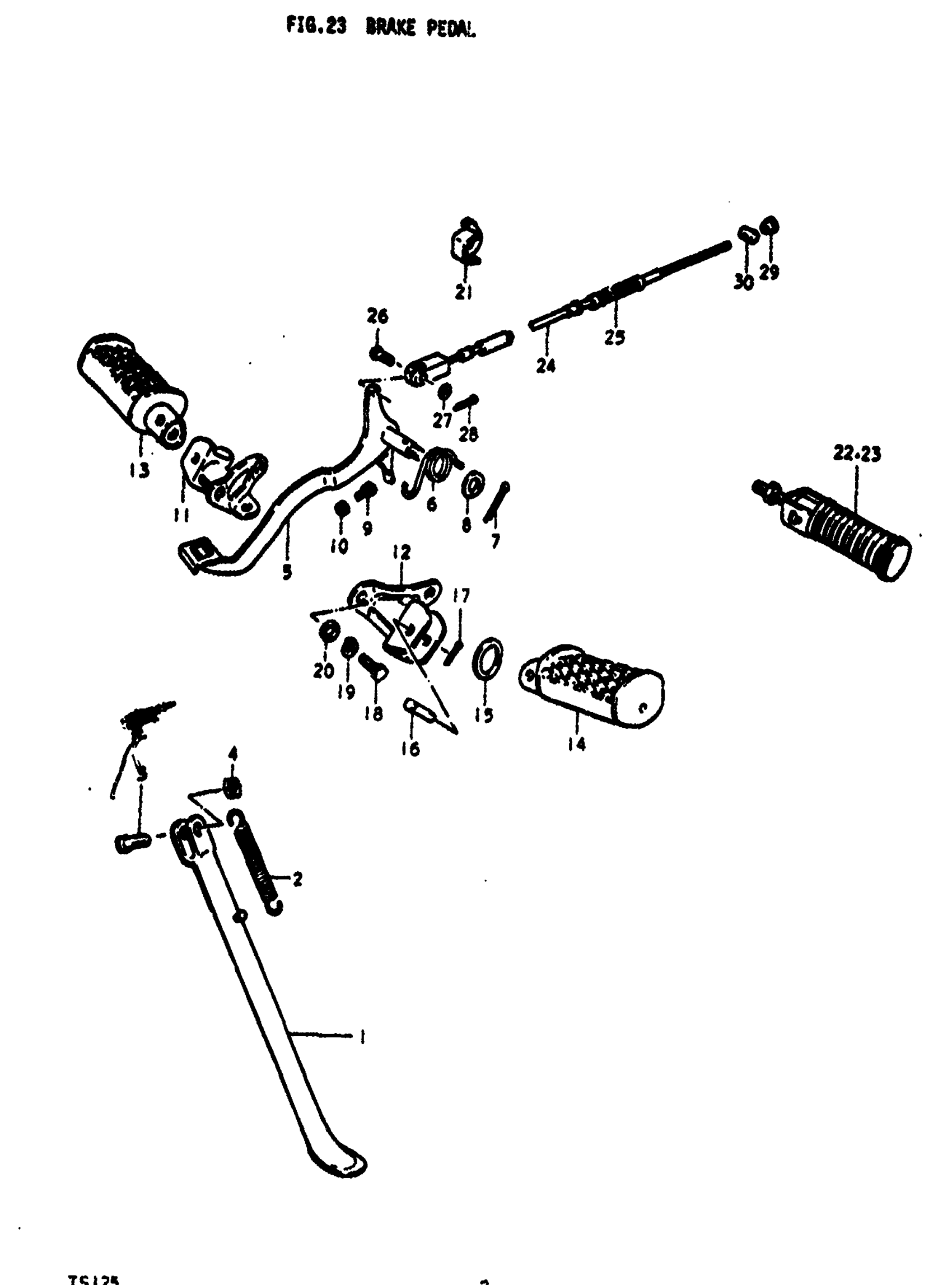

Find the part on the Brake Pedal diagram for your 1972 Suzuki TS125, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1972 Suzuki TS125 Brake Pedal Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STAND, PROP

42310-28000

1
Out of stock

2

SPRING This part replaces 09443-14005.

09443-14017

1
Out of stock

3

BOLT, PROP STAND

09100-10067

1
Out of stock

4

NUT This part replaces 08312-31108.

08310-00107

1
Out of stock

5

PEDAL, BRAKE

43110-28000

1
Out of stock

6

SPRING This part replaces 09448-32004.

09448-32004-XC0

1
Out of stock

7

PIN This part replaces 04111-30306.

04111-3030A

1
Out of stock

8

WASHER, BRAKE PEDAL

09160-10041

1
Out of stock

9

BOLT This part replaces 01112-06208.

01500-06207

1
Out of stock

10

.NUT This part replaces 08311-31068.

08310-00067

1
Out of stock

11

HOLDER, FRONT FOOTREST RH

43510-28000

1
Out of stock

12

HOLDER, FRONT FOOTREST LH

43520-28000

1
Out of stock

13

RUBBER, RH | TO 43550-25300 USED WITH 43581-25300 This part replaces 43550-25000.

43550-25301

1
Out of stock

14

RUBBER, LH | TO 43560-25300 USED WITH 43581-25300 This part replaces 43560-25000.

43560-25301

1
Out of stock

15

WASHER This part replaces 09160-22002.

09160-22033

2
Out of stock

16

PIN, FOOTREST RUBBER

09200-08002

2
Out of stock

17

COTTER PIN This part replaces 04111-20208.

04111-2020A

2
Out of stock

18

6

$2.68

In stock

19

6

$2.28

In stock

20

WASHER This part replaces 08322-11085.

08322-0108A

5
Out of stock

21

PLATE, LEVER STOP | TO 43543-28000

43540-28000

—
Out of stock

22

FOOTREST ASSY, PILLION RH

43600-28000

1
Out of stock

23

FOOTREST ASSY,P This part replaces 43600-03001.

43600-09D00

1
Out of stock

24

CABLE ASSY, REAR BRAKE | TO 58510-28000; Includes Item(s) 25 This part replaces 58510-28300.

58510-28000

1
Out of stock

25

DUST SEAL

09287-05001

1
Out of stock

26

PIN, REAR BRAKE LEVER

09200-05004

1
Out of stock

27

WASHER This part replaces 08322-21068.

08322-01067

1
Out of stock

28

.COTTER PIN This part replaces 04111-20158.

04111-2015A

2
Out of stock

29

.NUT This part replaces 09150-06001.

09150-06010

1
Out of stock

30

PIN CABLE LEVER

09209-11002

1
Out of stock
