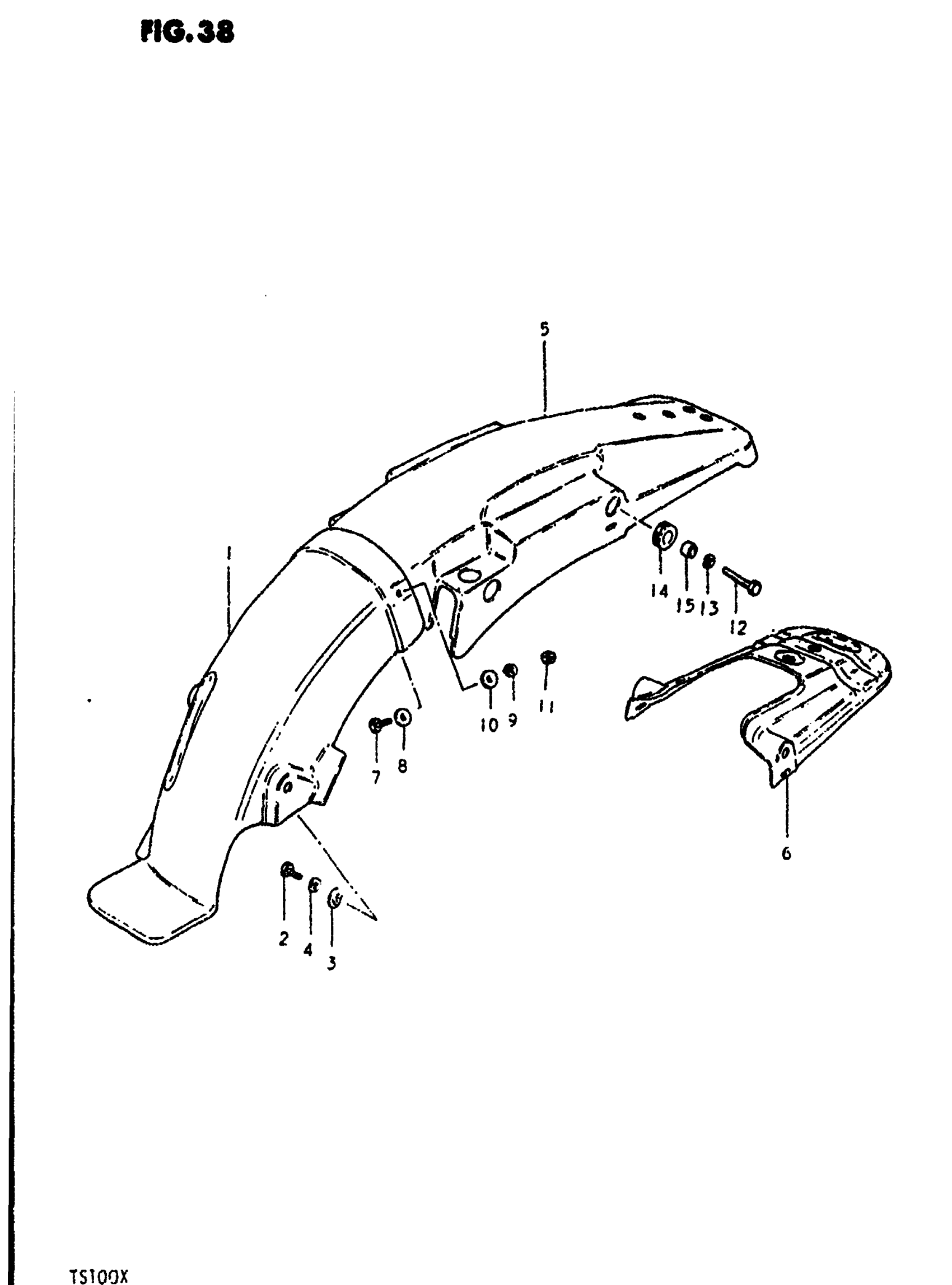

Suzuki TS100 (1981) REAR FENDER Diagram

#

Description
Price

1

BODY, REAR LENDER FRONT

63112-48500

Unavailable

2

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

3

WASHER

09169-06010

$2.61

4

LOCK WASHER This part replaces 08321-21068.

08321-01067

$1.83

5

FENDER, REAR (BLUE)

63113-48501-08Y

Unavailable

6

REINFORCEMENT

63120-48501

Unavailable

7

BOLT This part replaces 01107-05168.

01500-0516B

$2.35

8

WASHER (5.5X16X1.2) This part replaces 09160-05017.

09160-05043

$2.33

9

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.83

10

WASHER (5.2X16X1)

09160-05013

$1.25

11

NUT This part replaces 08310-11058.

08310-00057

$1.83

12

BOLT This part replaces 01107-08308.

01500-08307

$2.80

13

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$1.83

14

FENDER SIDE CUS This part replaces 09320-12011.

09320-12090

$1.89

15

SPACER This part replaces 09180-08021.

09180-08188

$2.68
