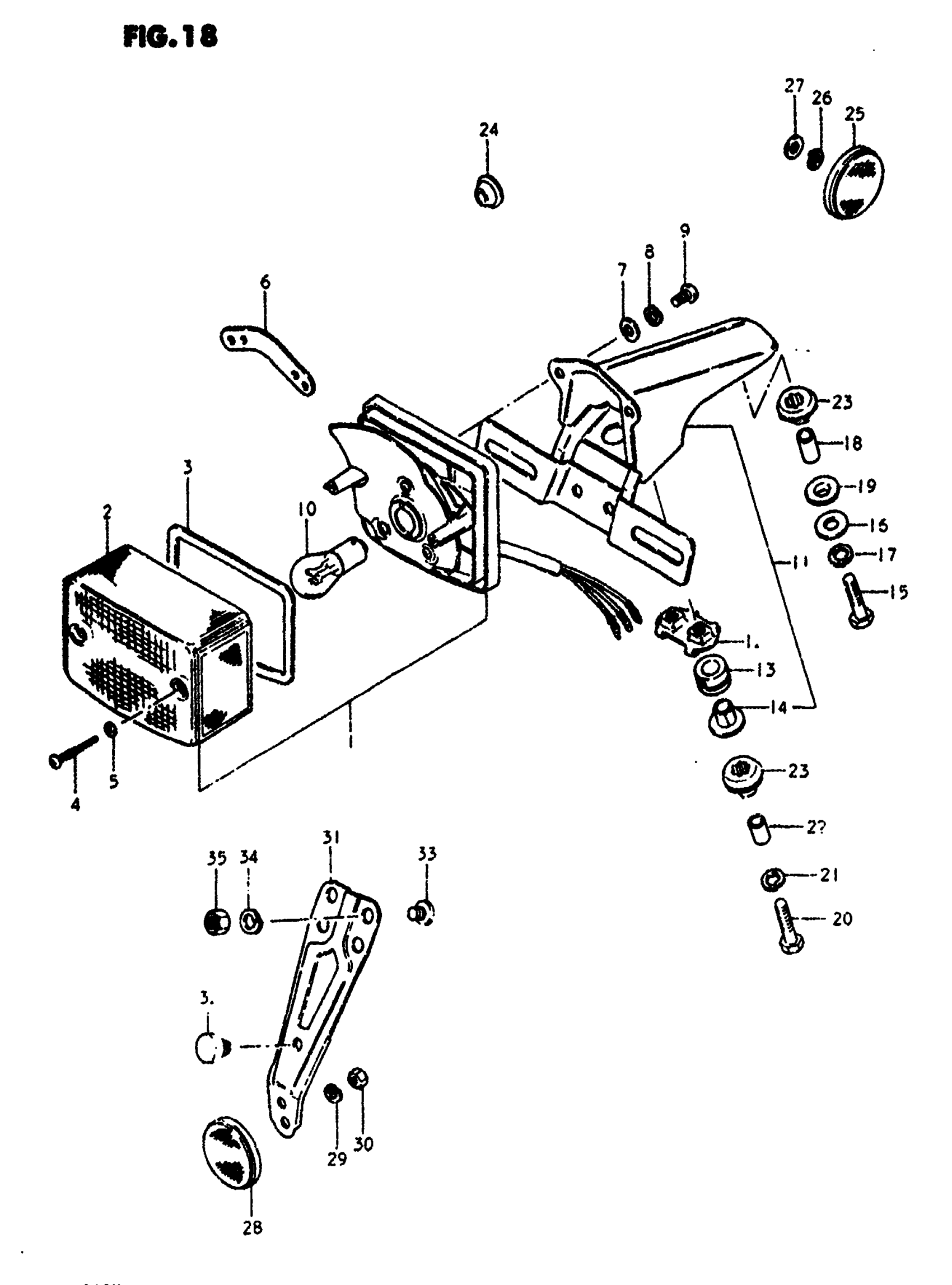

Suzuki TS100 (1981) REAR COMBINATION LAMP Diagram

#

Description
Price

1

LAMP UNIT,RR CO | Includes Item(s) 2 - 9 This part replaces 35720-48510-999.

35720-37430-999

Unavailable

2

LENS

35712-48510

$73.03

3

GASKET

35713-48510

$6.95

4

SCREW This part replaces 35625-49030.

03211-04306

$1.80

5

GASKET

35627-43010

$2.29

6

PLATE

35716-48510

Unavailable

7

WASHER This part replaces 08322-21058.

08322-01057

$1.86

8

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.83

9

SCREW This part replaces 02112-05128.

02112-05127

$1.97

10

BULB (6V,32/3CP)

09471-06030

Unavailable

11

BRACKET ASSY | Includes Item(s) 12 - 14

35730-48530

Unavailable

12

PLATE

35716-30950

Unavailable

13

CUSHION

35765-30950

$8.43

14

SPACER

35766-30950

$2.68

15

BOLT, REAR This part replaces 01107-06308.

01500-06307

$3.17

16

WASHER (6.5X20X1.2) This part replaces 09160-06027.

09160-06077

$1.89

17

LOCK WASHER This part replaces 08321-21068.

08321-01067

$1.83

18

SPACER This part replaces 09180-06072.

09180-06271

$2.17

19

CUSHION

09320-09003

$2.08

20

BOLT This part replaces 01107-06408.

01500-0640B

$2.64

21

LOCK WASHER This part replaces 08321-21068.

08321-01067

$1.83

22

SPACER,7.2X10X1 This part replaces 09180-06006.

09180-07019

$2.87

23

CUSHION

09320-09010

$2.80

24

GROMMET

09308-07004

$1.68

25

REFLEX REFLECTOR, FRONT

35950-30910

$33.92

26

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.83

27

WASHER This part replaces 08322-21058.

08322-01057

$1.86

28

REFLEX REFLECTOR, REAR

35970-30910

$50.29

29

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.83

30

NUT This part replaces 08310-11058.

08310-00057

$1.83

31

NO DESCRIPTION AVAILABLE This part replaces 35974-48530.

35974-48532

Unavailable

32

CUSHION

09321-05010

Unavailable

33

SCREW

02142-06108

$2.67

34

LOCK WASHER This part replaces 08321-21068.

08321-01067

$1.83

35

.NUT This part replaces 08310-11068.

08310-00067

$1.83
