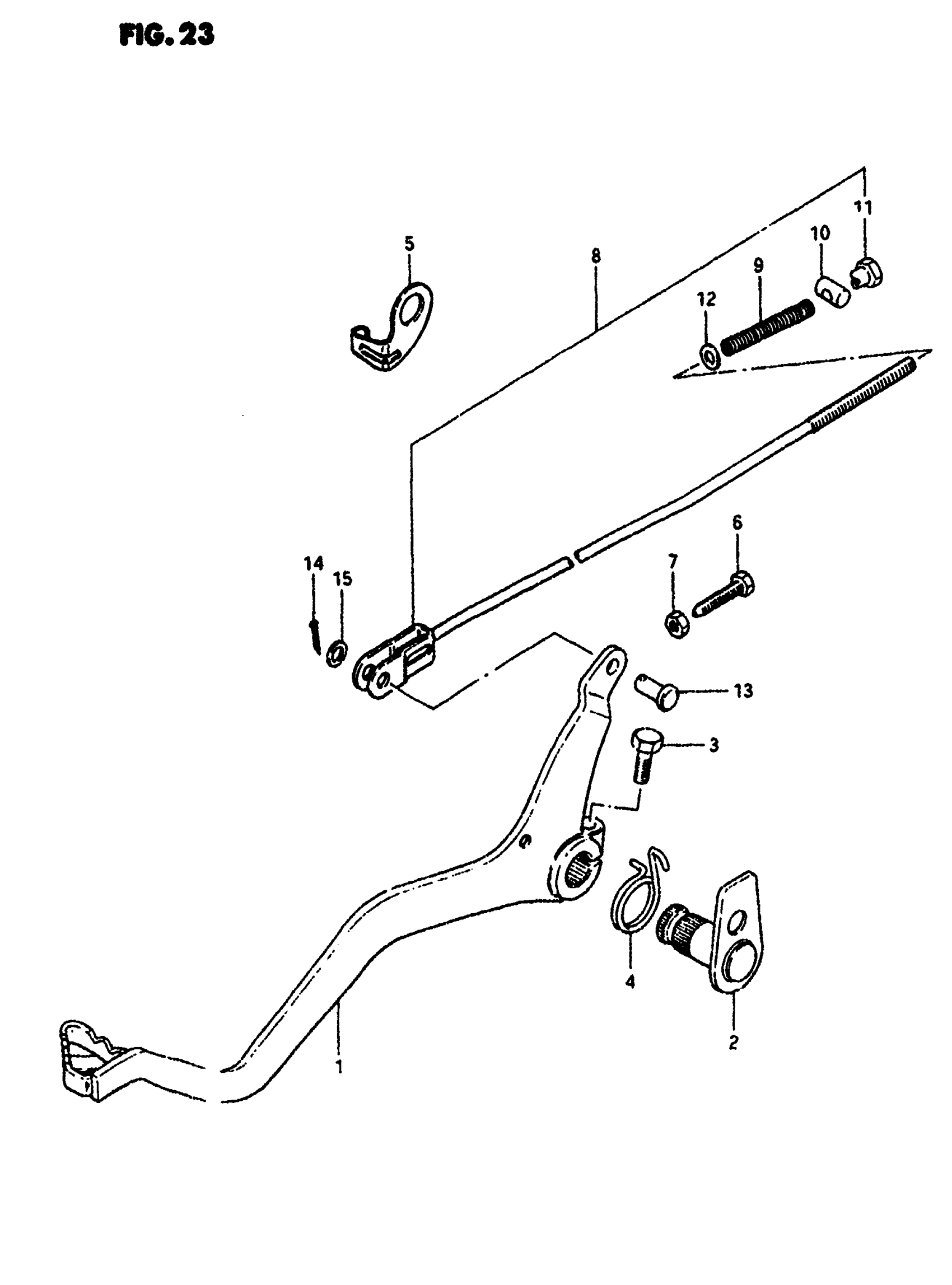

Suzuki TS100 (1981) REAR BRAKE Diagram

#

Description
Price

1

PEDAL, BRAKE

43110-48210

Unavailable

2

ARM, PEDAL LOD

43120-48210

$37.17

3

BOLT This part replaces 01107-06208.

01500-06207

$1.99

4

SPRING

09448-25001

$4.51

5

HOOK

43134-48210

Unavailable

6

BOLT (6x27)

09100-06009

$1.79

7

.NUT This part replaces 08310-11068.

08310-00067

$1.83

8

LOD ASSY, REAR BRAKE | Includes Item(s) 9 - 15

43300-48500

$20.33

9

SPRING

09440-09004

$2.06

10

.PIN (13X18) This part replaces 09209-13003.

09209-13018

$3.13

11

.NUT This part replaces 09150-06001.

09150-06010

$2.80

12

WASHER This part replaces 08322-21068.

08322-01067

$1.86

13

PIN

09200-06013

$2.05

14

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.22

15

WASHER This part replaces 08322-21068.

08322-01067

$1.86
