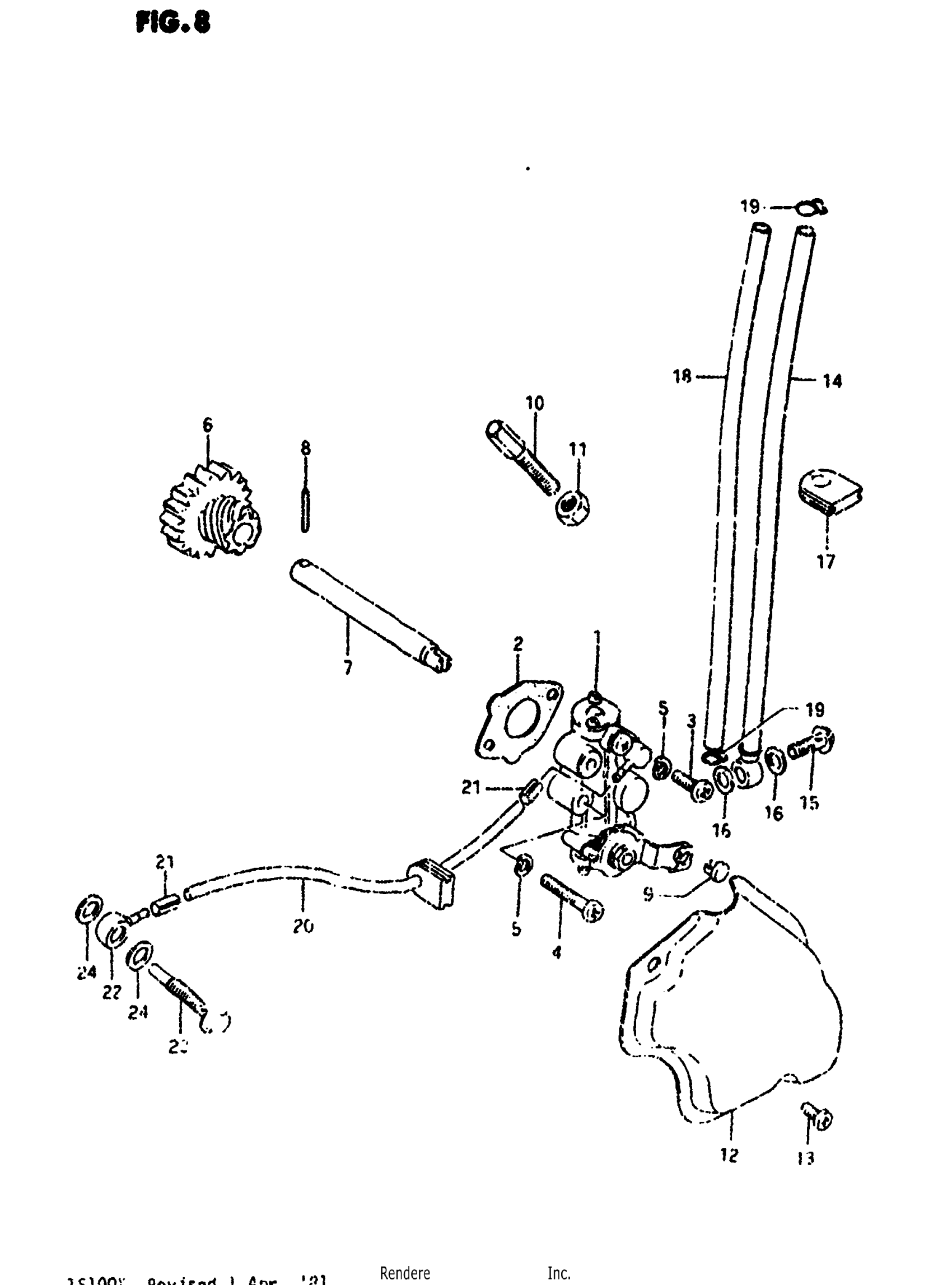

Suzuki TS100 (1981) OIL PUMP Diagram

#

Description
Price

1

PUMP, OIL | NIL INLET HOSE UNION This part replaces 16100-48010.

16100-48020

Unavailable

1

PUMP, OIL | INC. INLET HOSE UNION

16100-48020

Unavailable

2

GASKET

16731-03101

$2.80

3

SCREW This part replaces 02112-05168.

02112-05167

$1.97

4

SCREW This part replaces 02112-05308.

02112-0530A

$1.93

5

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.83

6

GEAR, DRIVE (NT:17)

16321-48030

Unavailable

7

SHAFT, DRIVE

16322-48000

Unavailable

8

PIN

09261-02001

$1.50

9

TERMINAL, CABLE This part replaces 16292-03111.

16292-03112

$4.75

10

BOLT

09119-08014

$3.25

11

NUT This part replaces 08310-12088.

08310-00087

$1.83

12

CAP, INSPECTION

11385-48000

$23.08

13

SCREW This part replaces 02112-06108.

02112-06107

$1.45

14

HOSE, OIL (L:512!97) | FOR 16100-48010 This part replaces 16810-30500.

16810-07520

Unavailable

15

UNION BOLT | FOR 16100-48010

09360-06003

$3.44

16

GASKET | FOR 16100-48010

09168-06004

$1.43

17

GROMMET This part replaces 09309-08002.

09309-08015

$2.58

18

HOSE(4.5X8.5X60 | FOR 16100-48020 This part replaces 09343-04025.

09355-45001-600

$8.55

19

CLAMP

09401-08401

$1.52

20

HOSE, OIL NO.2 This part replaces 16820-48001.

16820-39101

$9.05

21

CLIP

09401-04401

$2.07

22

UNION This part replaces 09363-02001.

09363-02002

$7.53

23

UNION BOLT, CYLINDER

09360-06009

$6.25

24

GASKET

09168-06004

$1.43
