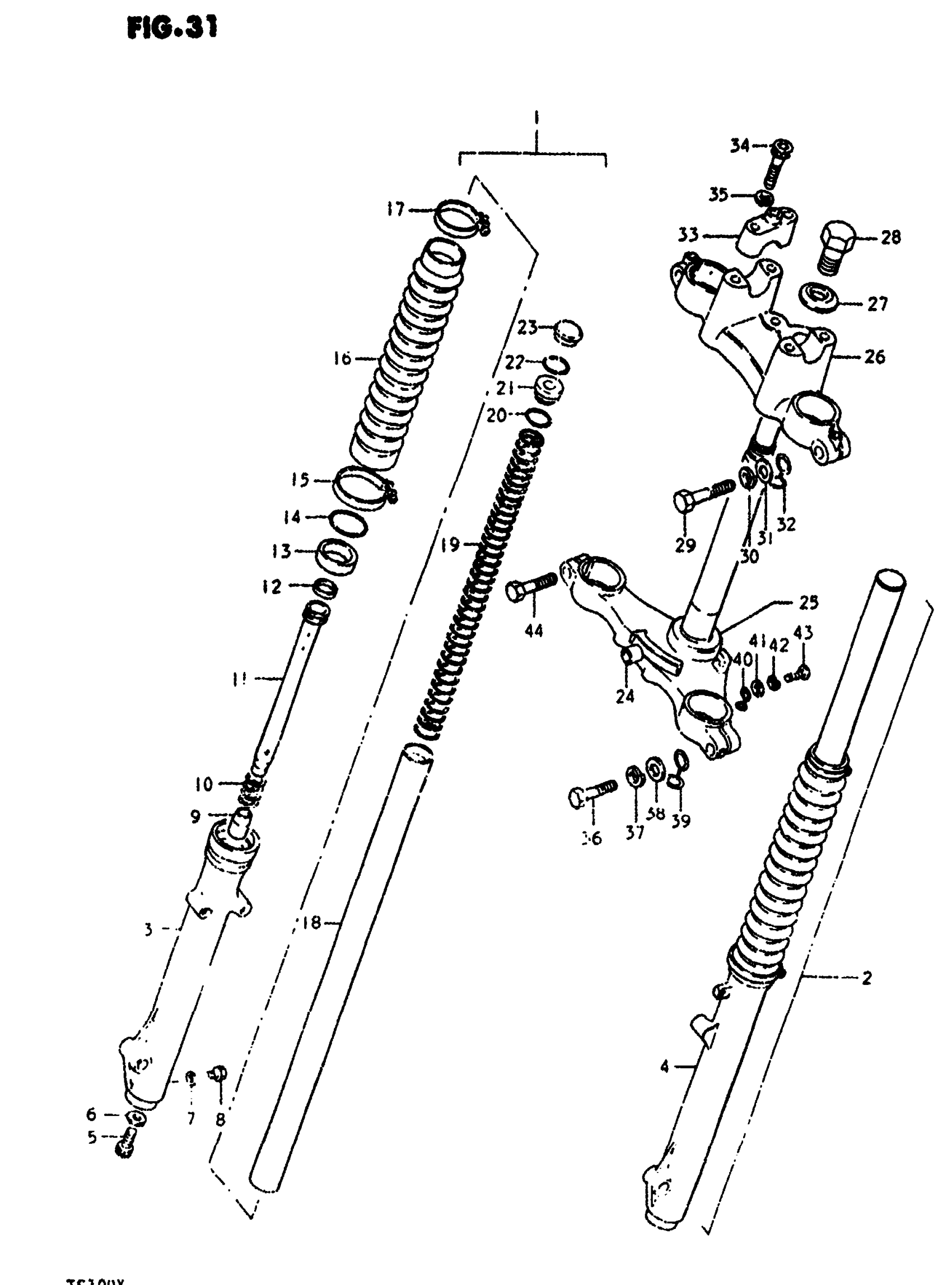

Suzuki TS100 (1981) FRONT FORK Diagram

#

Description
Price

0

FORK ASSY, FRONT (BLACK) | Includes Item(s) 1 - 23

51100-48530-291

Unavailable

1

DAMPER ASSY, RH

51103-48530

Unavailable

2

DAMPER ASSY, LH

51104-48530

Unavailable

3

OUTER TUBE RH

51131-48530

Unavailable

4

OUTER TUBE LH

51141-48530

Unavailable

5

BOLT

51147-48130

$3.97

6

O RING This part replaces 51148-31030.

51148-36011

$3.26

7

GASKET

51183-31030

$3.55

8

BOLT

09100-06011

$1.58

9

.PIECE, OIL LOCK

51195-48000

Unavailable

10

SPRING

51177-48000

Unavailable

11

CYLINDER

51146-48000

Unavailable

12

RING, PISTON

51196-48000

$9.50

13

.OIL SEAL This part replaces 51153-08030.

51153-48420

$12.53

14

.OIL SEAL This part replaces 51156-36030.

51156-48730

$6.00

15

BAND

09402-50306

$4.36

16

BOOT

51571-48530

Unavailable

17

BAND

51575-48530

Unavailable

18

INNER TUBE

51110-48530

Unavailable

19

SPRING

51171-48530

Unavailable

20

O RING

51181-33131

$6.22

21

SEAT, SPRING

51175-48500

Unavailable

22

RING

51169-48500

$3.80

23

CAP This part replaces 51189-48530.

51189-26515

Unavailable
