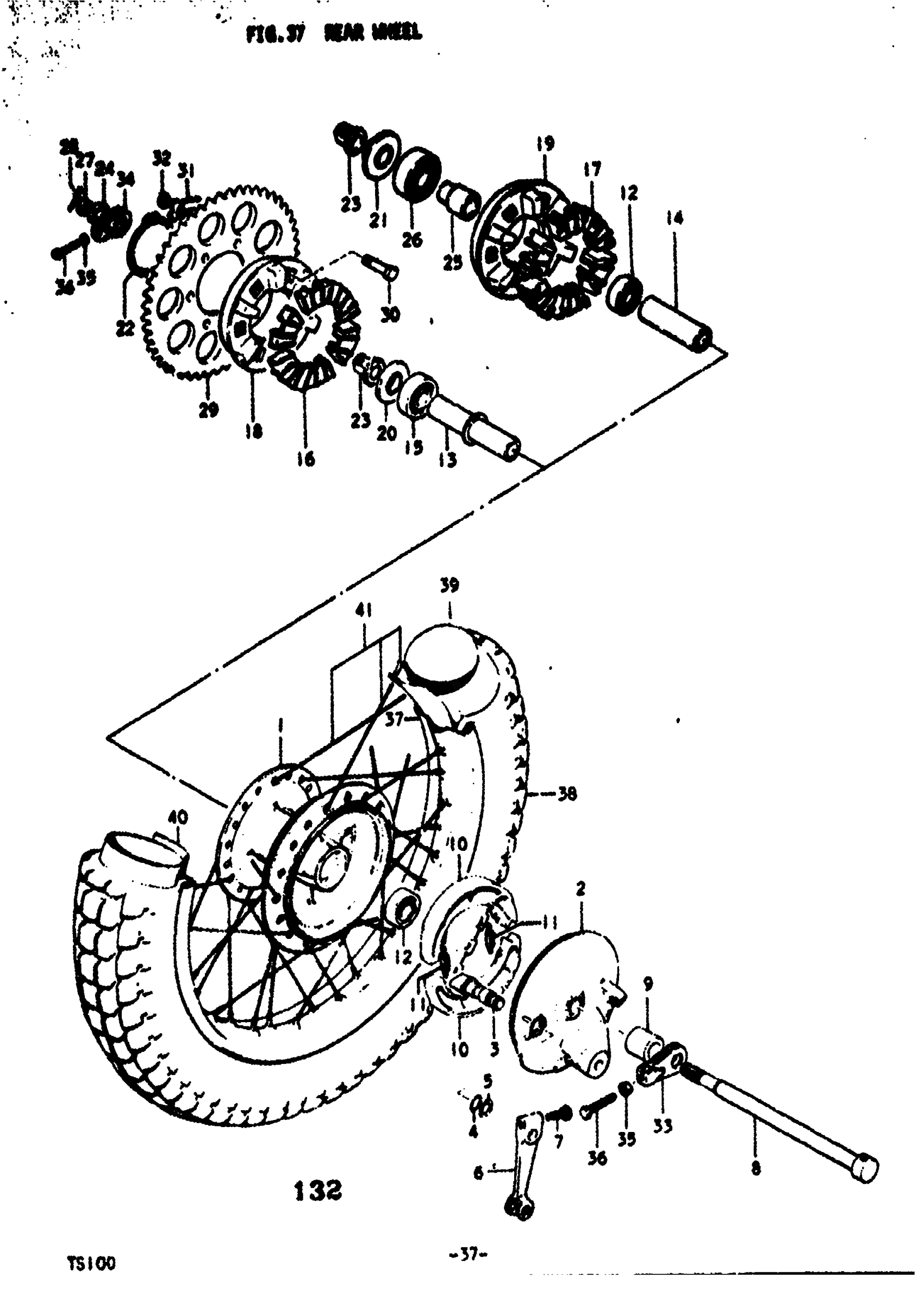

Suzuki TS100 (1977) REAR WHEEL Diagram

#

Description
Price

1

DRUM, REAR HUB | K,L; TO 64110-28002

64110-28001

Unavailable

1

DRUM, REAR HUB | M

64110-28002

Unavailable

1

DRUM, REAR HUB | A

64110-28400

Unavailable

1

DRUM, REAR HUB | B

64110-28610

Unavailable

2

PANEL, REAR HUB | K; TO 64210-28002

64210-28001

Unavailable

2

PANEL, REAR HUB | K; TO 64210-28003

64210-28002

Unavailable

2

PANEL, HUB | A This part replaces 64210-28003.

64210-28004

Unavailable

2

PANEL, HUB | B This part replaces 64210-28305.

64210-28004

Unavailable

2

PANEL, HUB | L,M; TO 64210-28003 This part replaces 64210-25500.

64210-28004

Unavailable

3

CAM, BRAKE | K; TO 54441-01002 This part replaces 54441-01001.

54441-01002

$21.23

3

SHAFT, BRAKE CAM | L,M; TO 54441-01002

54441-07001

Unavailable

3

SHAFT, BRAKE CAM | A,B

54441-01002

$21.23

4

DUST SEAL, CAM SHAFT

09280-12001

$3.25

5

WASHER | 12.5x20x1

09160-12011

$1.48

6

LEVER, BRAKE CAM

64451-25301

Unavailable

7

BOLT This part replaces 01112-06208.

01500-06207

$1.99

8

NO DESCRIPTION AVAILABLE This part replaces 64711-28001.

64711-4130V

Unavailable

9

SPACER, RH | 15.2x26x26 TO 09180-15038 This part replaces 09180-15010.

09180-15038

$8.45

10

SHOE SET, BRAKE | FROM 64410-07001 This part replaces 54410-07002.

54401-07810

Unavailable

11

SPRING This part replaces 09443-07001.

09443-07025

$1.68

12

BEARING, LH | K,L,MA,B This part replaces 08143-62020.

08143-62027

$14.44

13

SPACER, REAR HUB BEARING | K,M

64730-28000

Unavailable

13

SPACER, REAR HUB BOARING | L; TO 64730-28000

64730-38000

Unavailable

14

SPACER | A,B

09180-15039

Unavailable

15

BEARING | K,L,M This part replaces 08123-63020.

08123-6302B

$20.52

16

SHOCK, ABSORBER, REAR HUB | K,L,M; FROM 64650-28000

64650-28002

Unavailable

17

SHOCK ABSORBER, REAR HUB | A,B

64650-28400

Unavailable

18

DRUM, SPROCKET MOUNTING | K,L,M

64610-28001

Unavailable

19

DRUM, SPROCKET MOUNTING | A

64611-28400

Unavailable

19

DRUM, SPROCKET MOUNTING | B

64611-28600

Unavailable

20

SPACER | K,L,M

64750-28000

Unavailable

21

SPACER | A,B

64750-28400

Unavailable

22

CIRCLIP | K,L,M This part replaces 08331-11558.

08331-31559

$6.75

23

SPACER

64791-28001

$26.32

24

NUT | K,L,M,A This part replaces 09140-18001.

09140-18501

$2.80

24

NUT | B This part replaces 09140-18005.

09140-18501

$2.80

25

RETAINER, SPROCKET DRUM | A,B

64733-28400

Unavailable

26

BEARING | A,B This part replaces 08123-62040.

08123-6204B

$15.93

27

NUT This part replaces 08314-31128.

08314-3112A

$2.42

28

PIN This part replaces 04111-30308.

04111-3030A

$1.37

29

SPROCKET, REAR | NT:49 OPT

64511-28700

Unavailable

29

SPROCKET, REAR (NT:47) | NT:47 OPT This part replaces 64511-28780.

64511-05210

Unavailable

29

SPROCKET, REAR | NT:50 OPT

64511-28000

Unavailable

30

BOLT | K,L,M

09105-08006

Unavailable

30

BOLT | A,B

09105-08007

Unavailable

31

WASHER

09169-08013

$2.14

32

NUT | K,L,M

09140-08010

Unavailable

32

NUT | A,B This part replaces 08312-11088.

08310-00087

$1.83

33

ADJUSTER,CHAIN, This part replaces 61410-28002.

61410-28005

$9.50

34

LH CHAIN ADJUST This part replaces 61420-28002.

61420-28004

$12.95

35

NUT This part replaces 08312-11088.

08310-00087

$1.83

36

BOLT | 8x40 This part replaces 09100-08099.

09100-08146

$2.80

37

RIM, WHEEL | K,L; 1.60Ax18 TO 65311-29022

65311-29021

Unavailable

37

RIM, WHEEL | L,M,A,B; USE WITH 65300-20000

65311-29022

Unavailable

38

TIRE, REAR (3.00-18) | 3.00-18 SEMI-KNOBY TIRE This part replaces 65100-25600.

65100-26510

Unavailable

39

TUBE ASSY,WHEEL | 2.75-10, 3.00-18 This part replaces 55200-11601.

55200-26F01

$35.28

40

IN TUBE PROTECT | 22x18" This part replaces 55261-11010.

55261-26F10

$4.12

41

SPOKE SET, REAR | K,L

65300-28807

Unavailable

41

SPOKE SET | L,M,A,B This part replaces 65300-28880.

65320-28021

$64.75
